Guardian Fall Protection 01625 Xarm-72 Cross Arm Strap With Large And Small D-Rings (6 ft)

Product Description

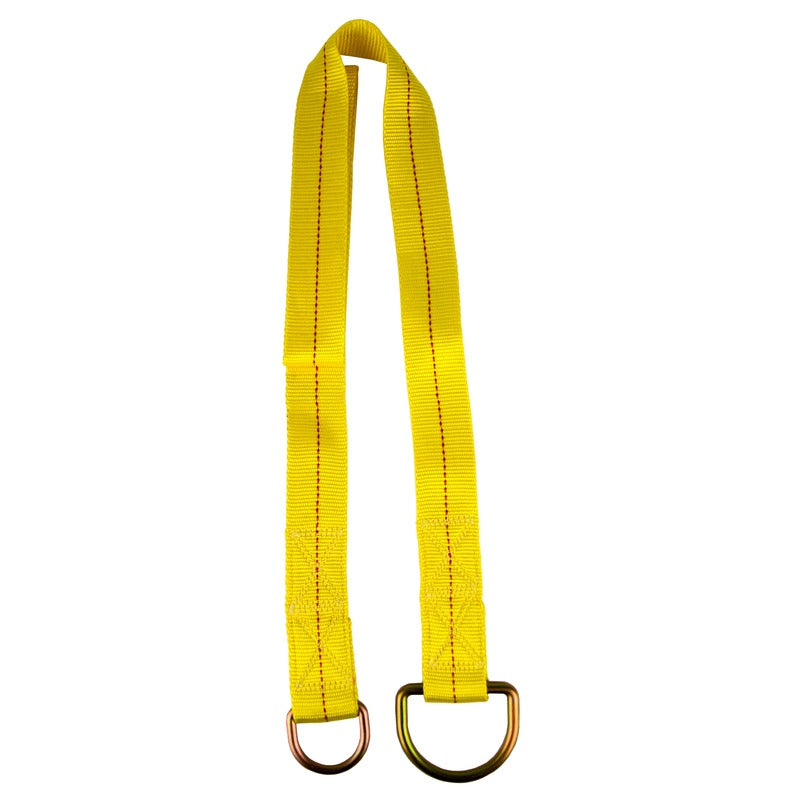

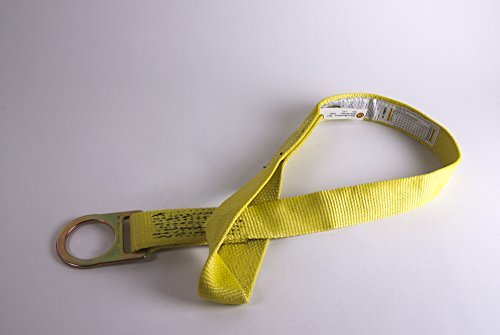

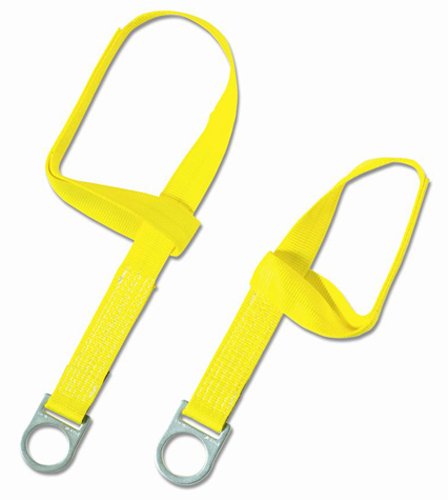

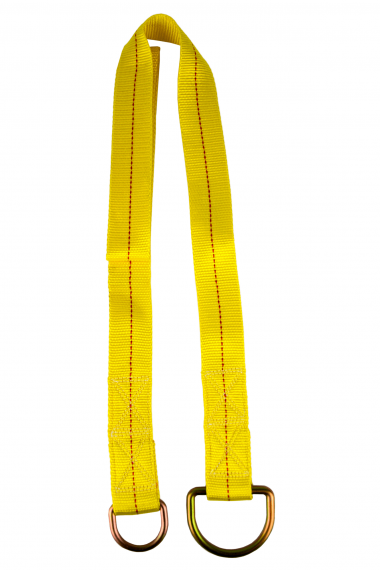

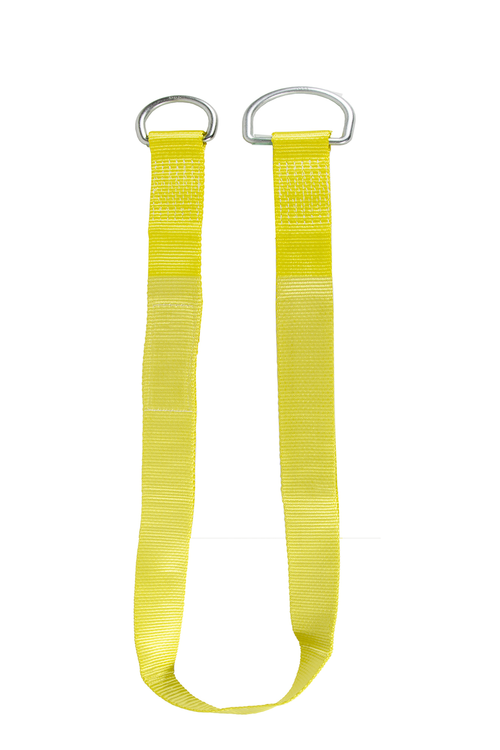

Guardian Fall Protection 01625 is a 6 ft cross arm strap that serves as a reusable anchorage connector for fall protection applications. The strap uses a pass-through loop end design and includes large and small D-rings to establish temporary anchor points for lanyards or self-retracting lifelines. Constructed with polyester webbing and galvanized steel components, it is compatible with horizontal lifeline systems in construction and general industry settings.

• Pass-through loop end design with large and small D-rings for anchorage and connection to lanyards or SRLs
• Constructed of polyester webbing, nylon, and galvanized steel; 6 ft length with 4 in width and 2 in ring diameter
• Rated 5,000 lb minimum breaking strength and 420 lb maximum user capacity; compatible with horizontal lifelines

Product Highlights

Reusable cinch-down style anchorage connector, 6 ft length, 5,000 lb tensile strength; meets OSHA and ANSI fall protection standards

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01625
• Country of Origin: India

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 01625
• Alternate MPN: 1625
• Model: Xarm-72
• UPC: 672421016252
• GTIN / EAN: 0672421016252
• Product Type: Cross arm strap / Reusable anchorage connector
• Type: Cinch-down anchorage connector with protective reinforcing strap
• Length: 6 ft
• Width: 4 in
• Ring Diameter: 2 in
• Material: Polyester webbing, nylon, galvanized steel
• Minimum Breaking Strength: 5,000 lb
• Maximum User Capacity: 420 lb
• Worker Capacity Range: 130-420 lb
• Standards / Compliance: OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017; ANSI Z359.1-07; ANSI A10.32-12
• Country of Manufacture: India
• Compatibility: Compatible with horizontal lifelines; connects to lanyards and self-retracting lifelines (SRL)
• Anchor Ends: Large and small D-rings; pass-thru loop end design
• Industries: Construction; General Industry
