Guardian Fall Protection 01508 Rope Grab (1/2 - 5/8 in)

Product Description

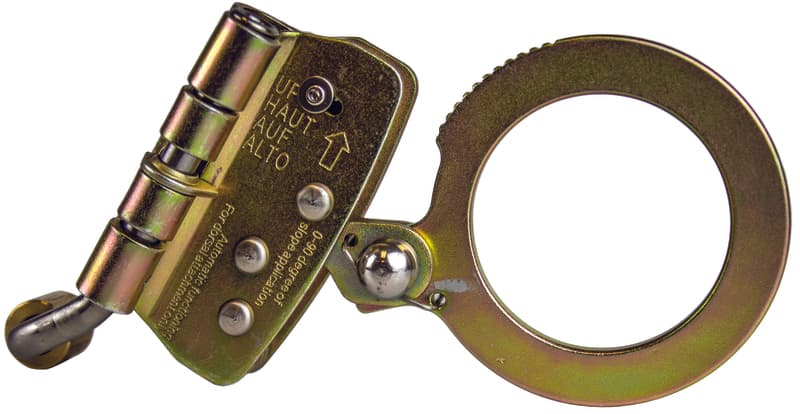

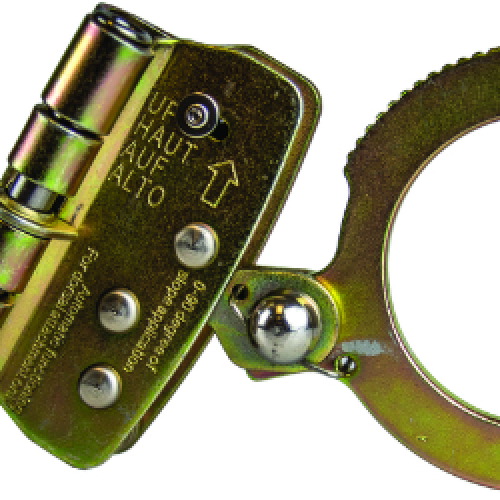

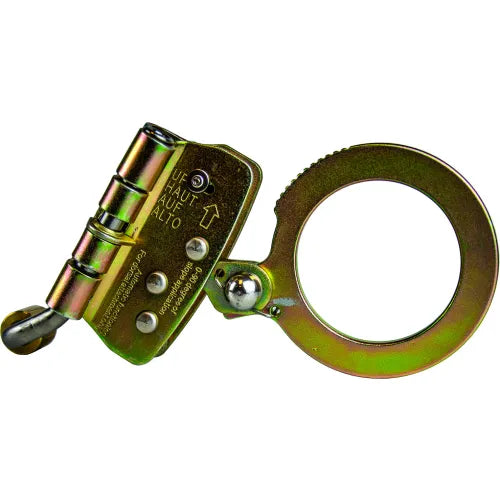

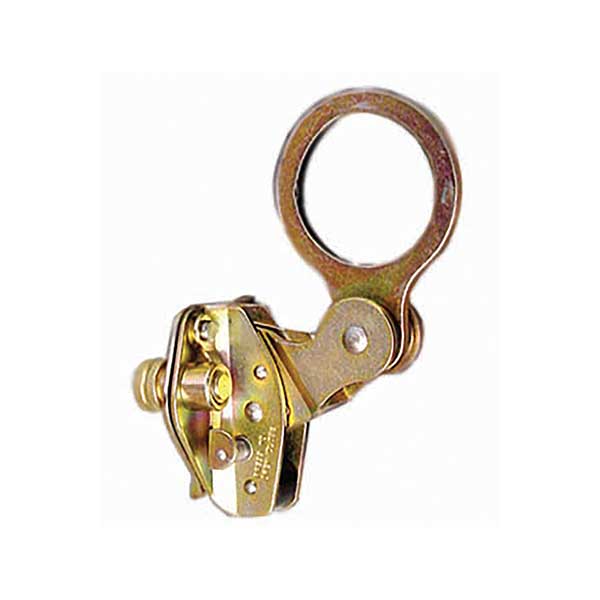

Guardian Fall Protection 01508 is a removable rope grab that attaches to vertical lifelines and locks automatically in the event of a fall. Constructed from zinc-coated galvanized steel, the 01508 fits 1/2 to 5/8 inch rope, provides a minimum breaking strength of 5,000 lbs, and supports a single user with a capacity range of 130 - 310 lbs. It is intended for personal fall arrest and restraint applications.

• Removable design for easy installation; compatible with 1/2 - 5/8 in diameter rope
• Automatically locks on the rope during a fall to limit arrest distance
• Zinc-coated galvanized steel construction with 5,000 lb minimum breaking strength; supports one user (130 - 310 lb)

Product Highlights

Removable zinc-coated galvanized steel rope grab; compatible with 1/2–5/8 in rope; 5,000 lb minimum breaking strength; supports one user (130–310 lb); meets ANSI and OSHA standards.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01508

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 01508
• Product Type: Trailing removable rope grab / positioning device
• Material: Zinc-coated galvanized steel
• Finish: Zinc-plated
• Compatible Rope Diameter: 1/2 - 5/8 in
• Minimum Breaking Strength: 5,000 lbs
• Weight Capacity: 130 - 310 lbs
• Max Users: 1
• Ring Type: O-ring
• Operation: Automatically locks during a fall; squeeze-to-move positioning
• Applications: Personal fall arrest; restraint
• Product Weight: 1.32 lb (0.60 kg)
• Product Length: 5 in (12.7 cm)
• Product Height: 2.5 in (6.35 cm)
• Certifications: ANSI Z359.1-07; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910; OSHA 1910.140; OSHA 1926.502
