Guardian Fall Protection 01320 Synthetic Rope Vertical Lifeline Assembly (50 ft)

Product Description

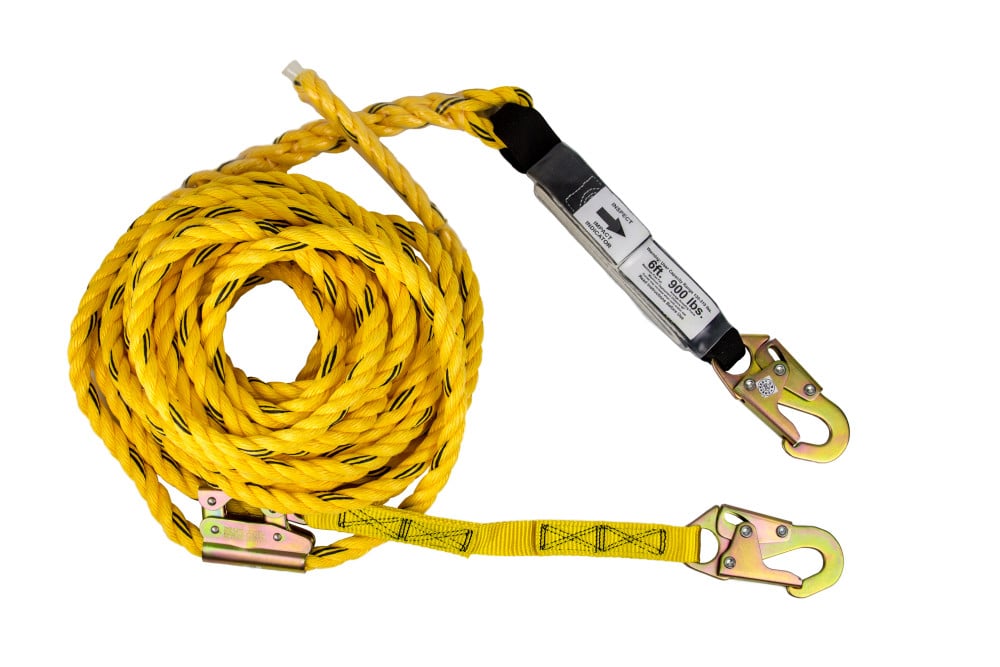

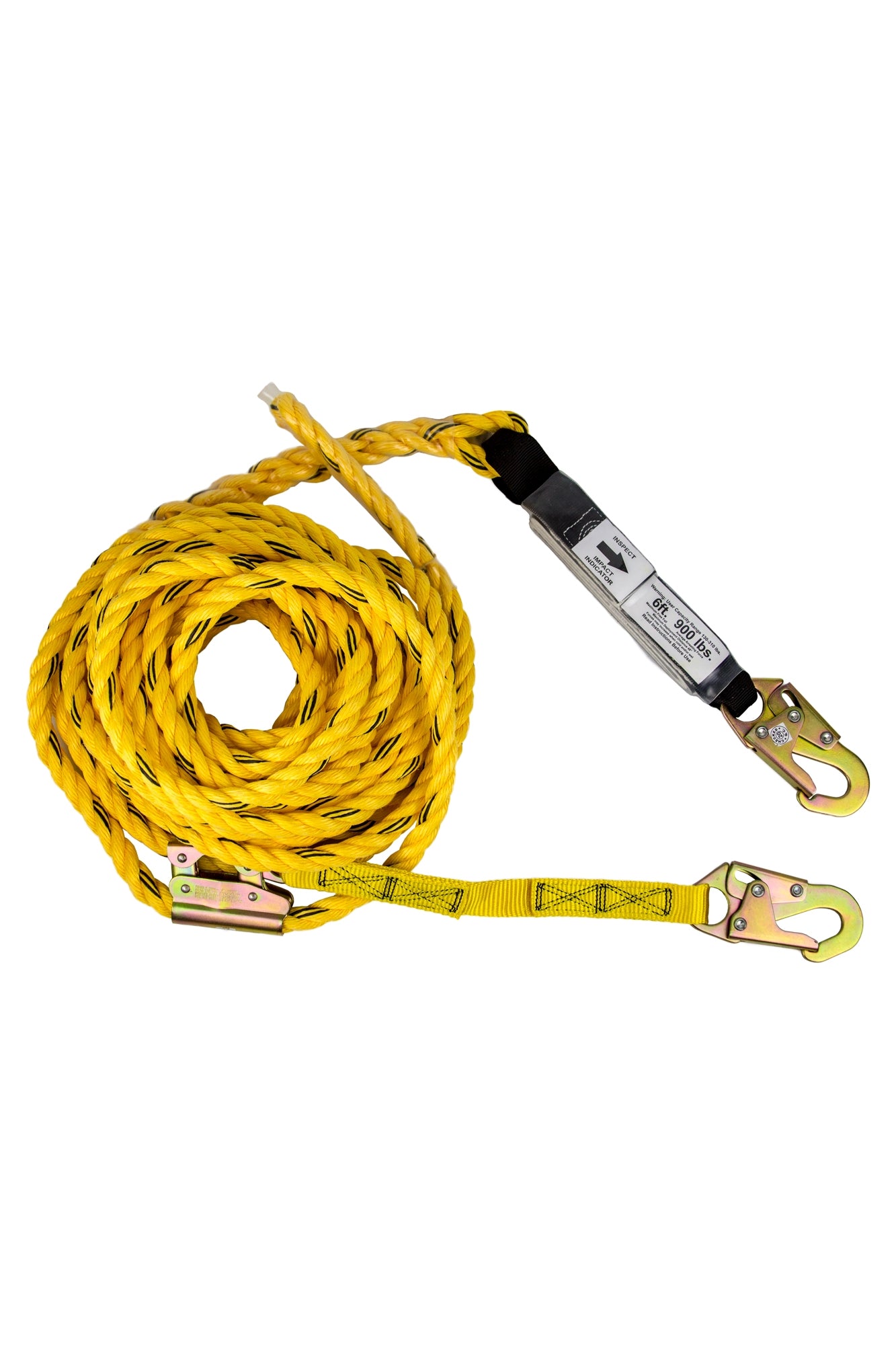

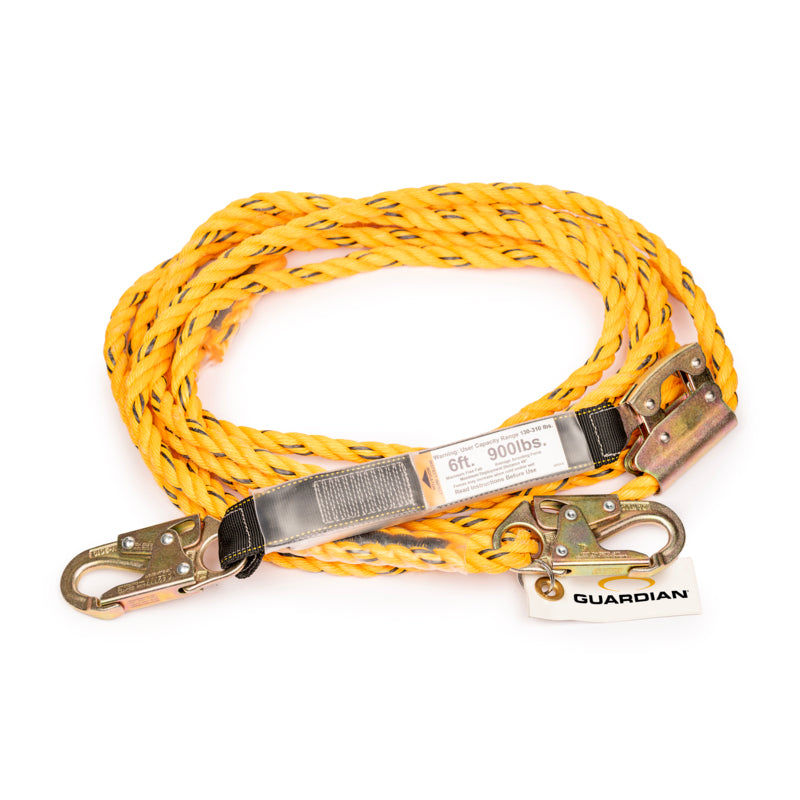

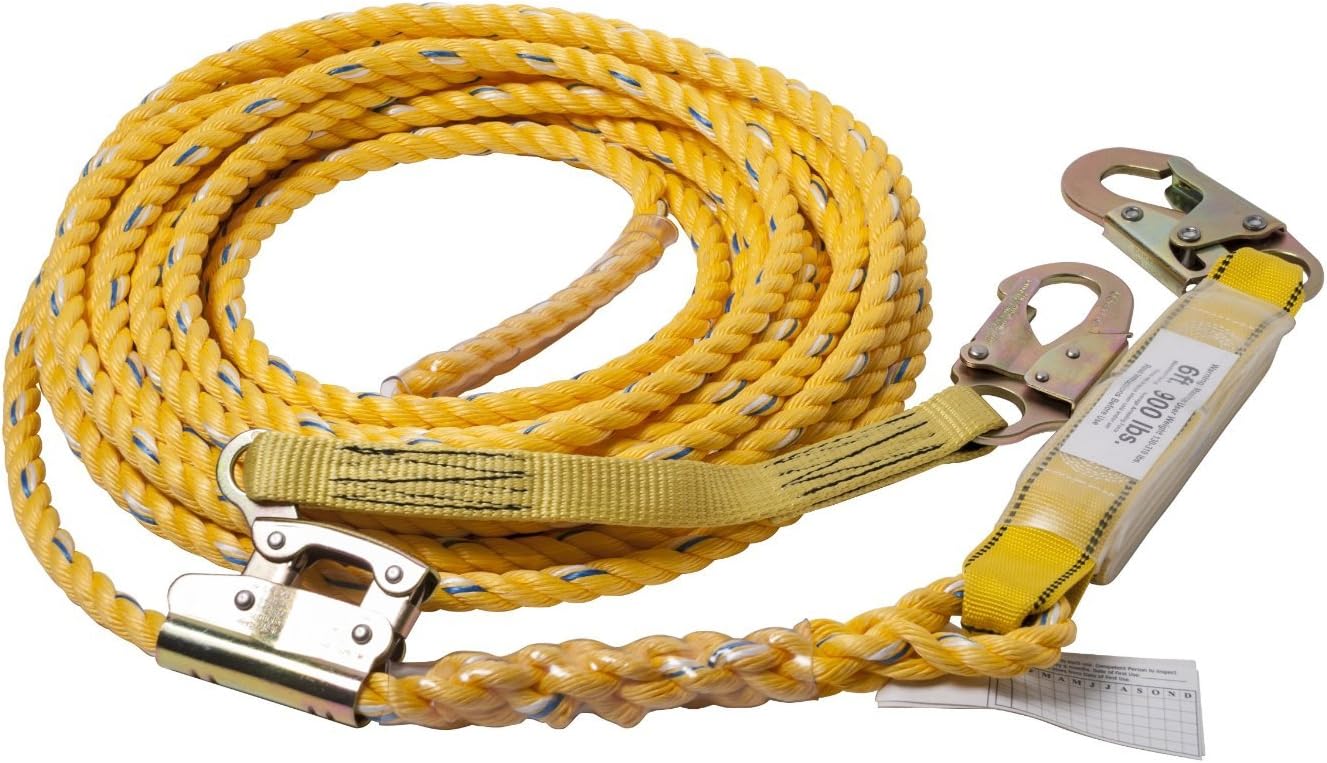

Guardian Fall Protection 01320 is a 50 ft synthetic poly steel vertical lifeline assembly designed for high-moisture environments. The assembly includes an integral shock absorber, ergonomic positioning device, 18-inch extension lanyard and two double-locking snap hooks. It is intended for single-user fall protection and restraint applications, offers a worker capacity range of 130–310 lb, and has a minimum breaking strength of 5000 lb.

• 5/8 inch poly steel synthetic rope resists water absorption, ultraviolet damage, cuts, and abrasion
• Includes integral shock absorber, adjustable rope grab positioning device, 18-inch extension lanyard, and two double-locking snap hooks
• Designed for one-user fall protection with worker capacity 130–310 lb and minimum breaking strength 5000 lb; hardware includes alloy and stainless steel components

Product Highlights

50 ft poly steel vertical lifeline with shock absorber and rope grab; 5/8 in rope; 5000 lb minimum breaking strength; complies with ANSI and OSHA standards

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01320
• Country of Origin: United States

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 01320
• Model: VLA-50
• Product Name: Synthetic Rope Vertical Lifeline Assembly
• Product Type: Vertical lifeline assembly
• Length: 50 ft
• Rope Material: Poly steel (synthetic)
• Rope Diameter: 5/8 inch
• Worker Capacity: 130 - 310 lb
• Number of Users: 1
• Minimum Breaking Strength: 5000 lb
• Included Components: Poly steel rope; integral shock absorber; positioning device (adjustable rope grab); 18-inch extension lanyard; two double-locking snap hooks
• Fastener Type: Double-locking snap hooks
• Fastener Material: Stainless steel
• Hardware Material: Alloy steel
• Applicable Standards: ANSI Z359.1-07; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910
• Item Dimensions: 600 in L x 0.62 in W
