Guardian Fall Protection 01230 External Shock Lanyard 6 ft 2-Leg

Product Description

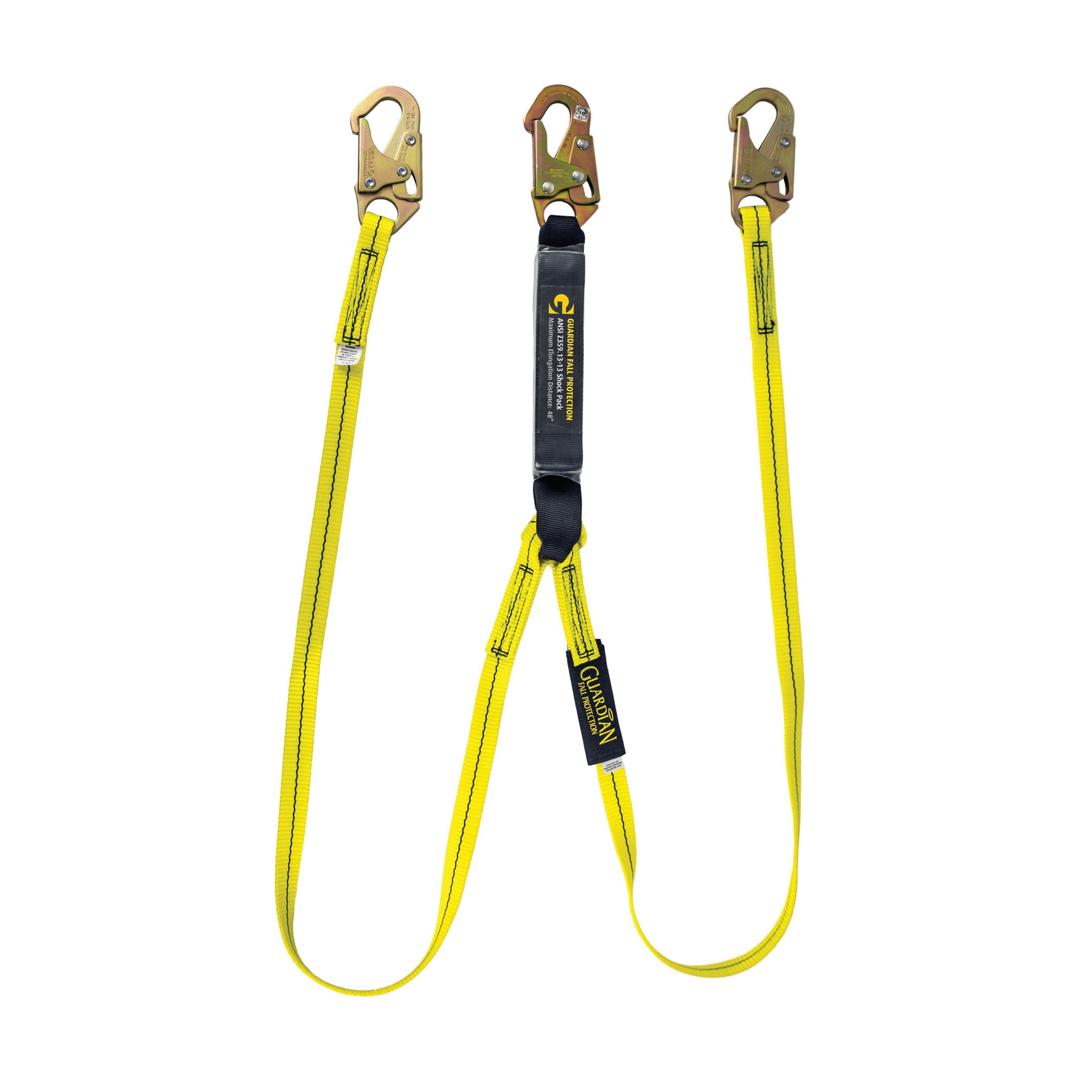

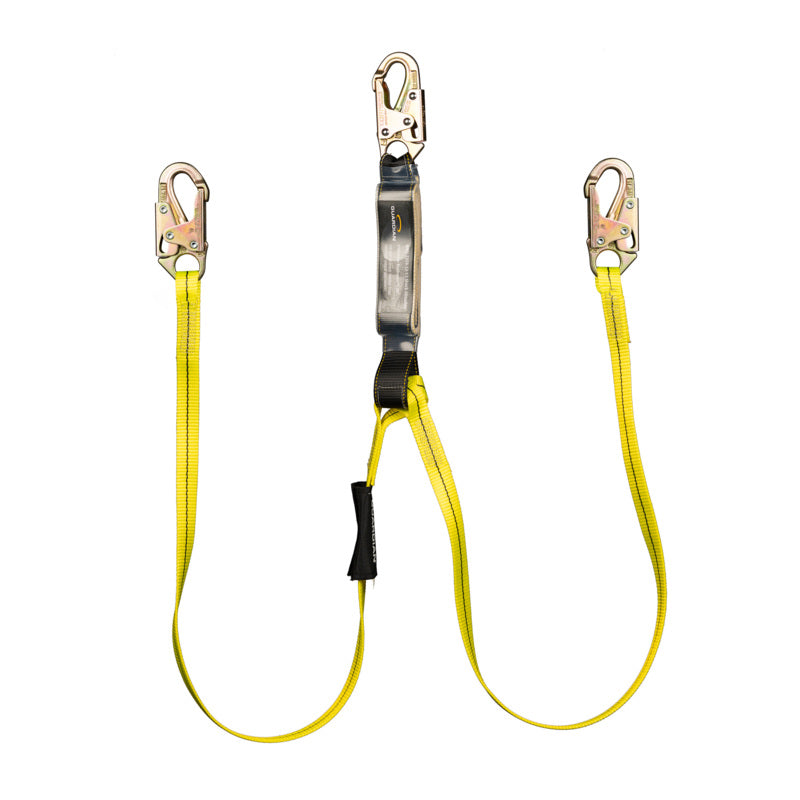

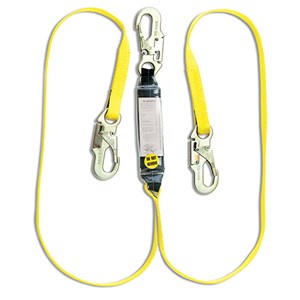

Guardian Fall Protection 01230 is an external shock-absorbing lanyard designed for fall arrest with an integrated shock absorber that limits average arresting forces to 900 lb or less. The two-leg, 6 ft lanyard is constructed from 1 in nylon webbing with a nylon/polyester line and steel hardware, providing a 5000 lb tensile strength and snap hook connections for anchorage and harness attachment. It meets applicable ANSI and OSHA standards for fall protection.

• Integrated external shock absorber limits average arresting forces to 900 lb or less; meets ANSI Z359.13-2013, ANSI A10.32-12, and OSHA standards
• Constructed with 1 in nylon webbing and nylon/polyester line, 6 ft length, 5000 lb tensile strength, two-leg design for continuous tie-off
• Steel hardware with snap hook anchorage and snap hook harness connections; clear absorber pack for easy inspection and self-double-locking snap hooks

Product Highlights

6 ft double-leg external shock-absorbing lanyard with integrated energy absorber, 1 in nylon webbing, 5000 lb tensile strength, ANSI and OSHA compliant.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 01230
• Country of Origin: China

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer: Pure Safety Group
• Manufacturer Part Number: 01230
• Model: 01230 SS72-2-6
• Product Name: External Shock Lanyard
• Type: External shock-absorbing lanyard
• Length: 6 ft (72 in)
• Number of Legs: 2 (double leg)
• Webbing Material: 1 in nylon webbing
• Line Material: Nylon/Polyester
• Strap Width: 1 in
• Tensile Strength: 5000 lb
• Hardware Material: Steel
• Anchorage Connection Type: Snap Hook
• Harness Connection Hook Type: Snap Hook
• Shock Absorber: Integral external shock absorber pack sewn at one hook end with clear cover
• Arresting Force Limit: Limits average arresting forces to 900 lb or less
• Hook Gate Strength: 3,600 lb gates
• Certifications: ANSI Z359.13-13; ANSI A10.32-12; OSHA 1926 Subpart M; OSHA 1910; OSHA 1910.140; OSHA 1926.502
• Product Weight: 3.2 lb (1.45 kg)
• Shock Pack Dimensions: Approx. 8 in x 4 in (20.32 cm x 10.16 cm)
• Connectors: Self-double-locking snap hooks
• Purpose: Fall arrest / shock absorbing lanyard
• Country of Origin: China
• UPC: 672421012308
