Guardian Fall Protection 00610 CB-1-W Weld-On Anchor 2.75 in Dia

Product Description

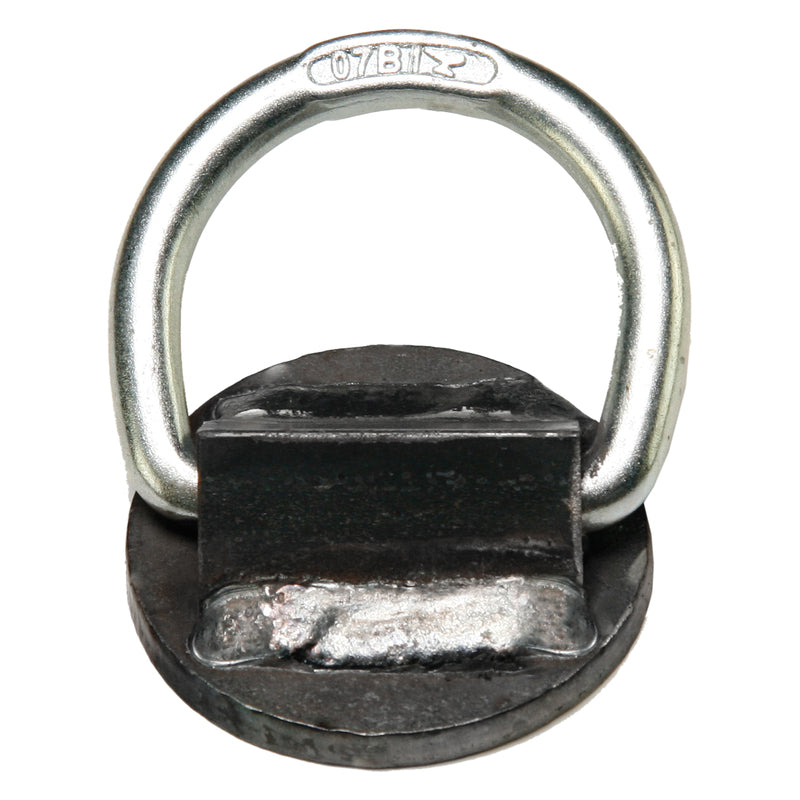

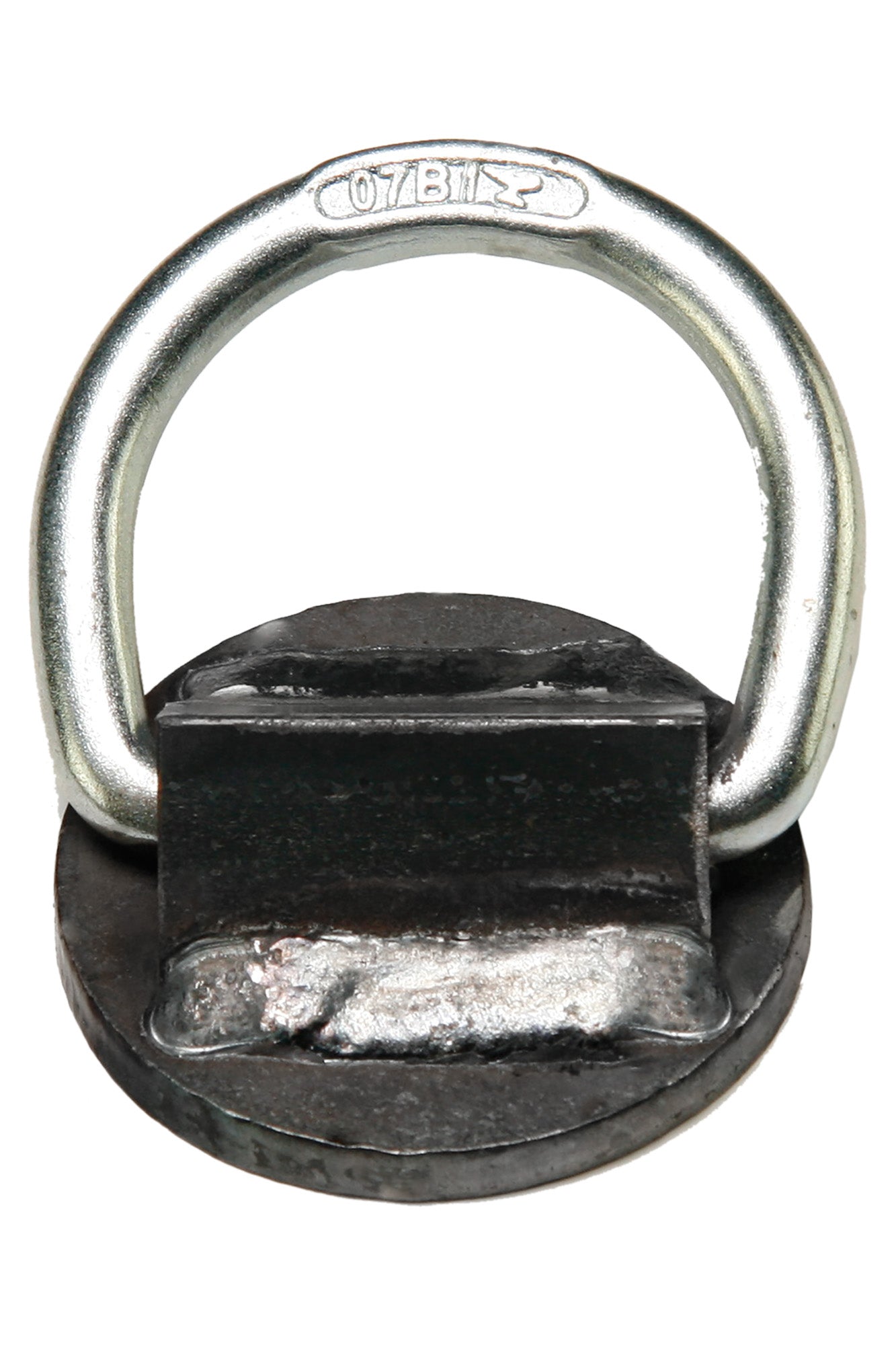

The Guardian Fall Protection 00610 CB-1-W is a weld-on anchor for fall-protection anchorage. The galvanized steel anchor includes a forged steel D-ring and a 2.75 in diameter body rated to 5,000 lb tensile strength with a user capacity range of 130–420 lb. It installs by welding to vertical or horizontal steel structures and can be used as a single-point tie-off or with horizontal lifeline systems.

• Forged steel D-ring; galvanized steel construction; 2.75 in diameter anchor body.
• Rated tensile strength 5,000 lb with user capacity range 130–420 lb.
• Weld installation for vertical or horizontal steel; suitable for single-point tie-off and horizontal lifeline systems; installation must be performed by a certified welder and spray galvanized after installation.

Product Highlights

Forged D-ring weld-on anchor, 2.75 in diameter, 5,000 lb tensile strength, 130–420 lb user capacity.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 00610

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 00610
• Series: CB-1-W
• Product Type: Weld-On Anchor
• Material: Galvanized Steel
• Style: D-Ring
• Attachment Type: D-Ring
• Install Type: Weld
• Worker Capacity: 130-420 lbs
• Tensile Strength: 5,000 lbs
• Diameter: 2.75 in
• Weight: 0.91 lb / 0.41 kg
• Dimensions: 12.5 x 9.0 x 0.5 in
• Certifications: OSHA 1910; OSHA 1926 Subpart M; ANSI Z359.1-07; ANSI A10.32-12
• Suitable For Use With: Installation on vertical or horizontal steel structures; compatible with I-beams, columns and other structural members for single-point tie-off or horizontal lifeline systems
• Installation Requirement: Install must be performed by a certified welder; must be spray galvanized after installation
• SKU: 00610
• Product SKU: GUAFA-00610
• UOM: EA
• Industries: Construction; General Industry
