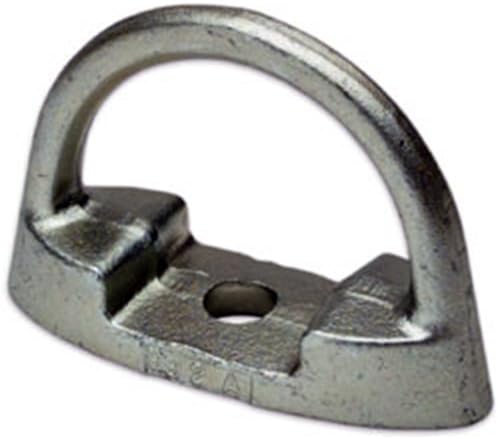

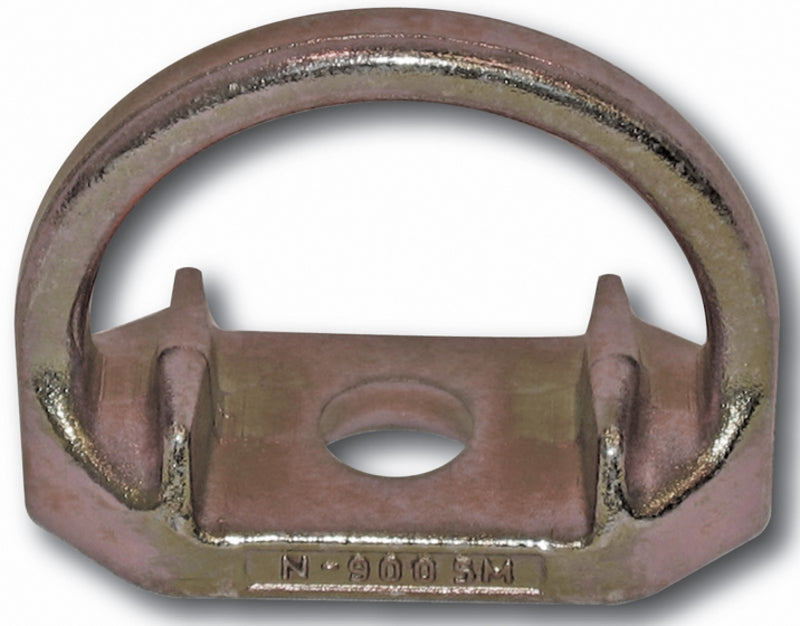

Guardian Fall Protection 00370 D-Bolt Forged Anchor (3 in) 00370

Product Description

Guardian Fall Protection 00370 D-Bolt Forged Anchor is a compact forged anchorage connector designed for attachment to wood, steel, or concrete substrates. The anchor provides a small-footprint single-point tie-off or paired use in horizontal lifeline systems, is installed with simple hand tools, and is lightweight for carry during installation. It meets OSHA and ANSI anchorage standards and includes multiple bolt size options for varied applications.

• Forged steel construction for high strength; product weight 1.5 lb (0.68 kg) and dimensions approximately 3 in length by 3 in height
• Designed for single-point tie-offs or paired horizontal lifeline systems; suitable for wood, steel, and concrete substrates
• Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017; bolt size options: 1/2", 9/16", 5/8", 3/4"

Product Highlights

Forged D-bolt anchorage connector for distributed anchor points; 1.5 lb, 3 in size, compatible with multiple bolt sizes and OSHA/ANSI standards

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 00370
• Country of Origin: United States

Technical Specifications

• Brand: Guardian Fall Protection
• MPN: 00370
• SKU: 00370
• Product Name: D-Bolt Forged Anchor
• Material: Steel
• Construction: Forged
• Product Weight: 1.5 lb / 0.68 kg
• Length: 3 in / 7.62 cm
• Height: 3 in / 7.62 cm
• Width: 3.5 in
• Bolt Size Options: 1/2", 9/16", 5/8", 3/4"
• Hole Diameter: 0.5 in
• Capacity: Up to 420 lb (worker capacity range 130-420 lb inclusive of equipment and tools)
• Tensile Strength (Minimum Breaking Strength): 5,000 lb
• Minimum Permitted Service Temperature: -30 °F
• Temperature Rating: 257 °F
• Compliance / Standards: OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017
• Typical Industries: Construction; General Industry
• Minimum Substrate Thickness: Wood/Concrete: 6 in; Metal: 0.25 in
• Included Components: Unit; Instruction Guide
• Country of Manufacture: United States
• GTIN: 0672421003702
• UPC: 0672421003702
