Guardian Fall Protection 00242 Concrete Swivel Anchor Kit 360 degree Rotation

Product Description

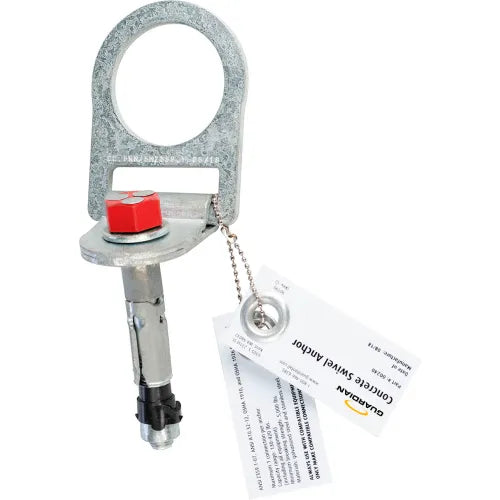

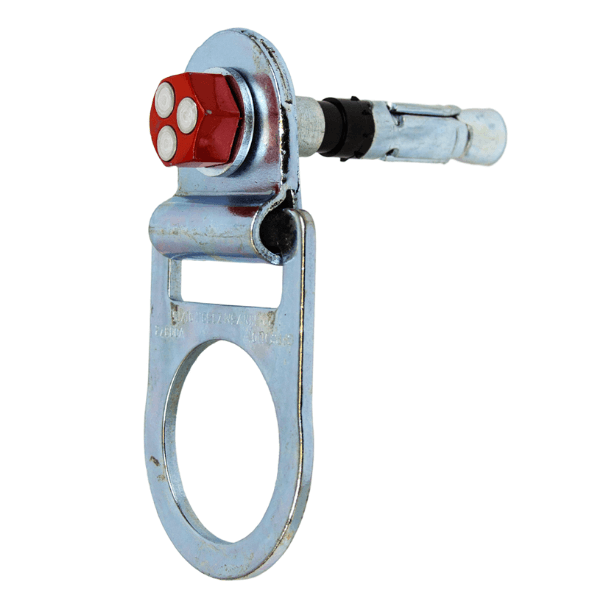

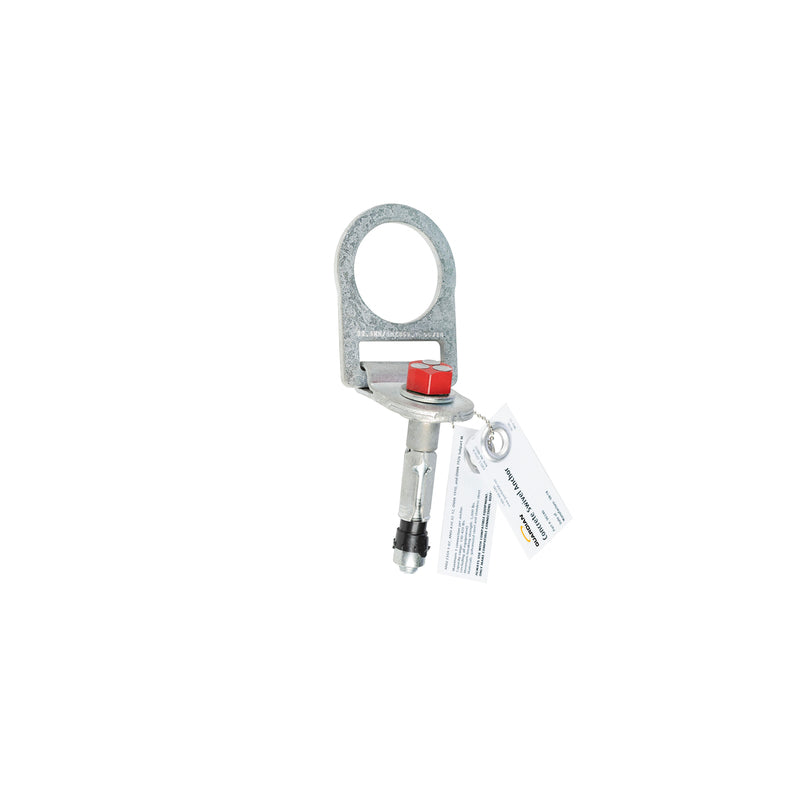

The Guardian Fall Protection 00242 Concrete Swivel Anchor Kit is a swiveling fall protection anchor for concrete substrates that provides 360 degree mobility and a full-size D-ring for connection while wearing gloves. The anchor includes a visual torque indicator that breaks away when proper torque is reached and installs with a concrete anchor bolt; the D-ring assembly can be reused with a replacement bolt. It is constructed of galvanized steel, measures about 8 in by 6 in, and weighs approximately 1 lb, and meets applicable OSHA and ANSI standards.

• 360 degree swivel D-ring providing mobility and reduced lifeline twisting; full-size D-ring for gloved connection
• Visual torque indicator on anchor bolt breaks away when proper torque is reached (no torque wrench required)
• Galvanized steel construction; compatible with horizontal lifelines; removable and reusable D-ring assembly (requires replacement bolt)

Product Highlights

360 degree rotating concrete anchorage with visual torque indicator, galvanized steel construction, OSHA and ANSI compliant

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 00242

Technical Specifications

• Manufacturer: Guardian Fall Protection
• Model / MPN / SKU: 00242
• Product Name: Concrete Swivel Anchor Kit
• Type: Swivel concrete anchorage connector
• Material: Galvanized steel
• Product Weight: 1 lb / 0.45 kg
• Dimensions: Length 8 in / 20.32 cm; Height 6 in / 15.24 cm
• Rotation: 360 degree
• D-ring: Full-size D-ring, swivel attachment
• Visual torque indicator: Breaks away when proper torque is reached
• Reusable: D-ring assembly reusable with replacement anchor bolt
• Compatible with: Horizontal lifelines
• Compliance / Certifications: OSHA 1910.140; OSHA 1926.502; ANSI Z359.18-2017
• Industries: Construction; General Industry
• Minimum breaking strength: 5,000 lbs
• Weight capacity (user capacity): 130-420 lbs
• Minimum concrete compressive strength: 3,000 psi
• Hole size for installation: 11/16 in or 3/4 in
• Required hole depth: 4 3/8 in
• Required hole diameter for drilling: 3/4 in
• Minimum concrete substrate thickness: 6 1/4 in
• Minimum spacing for multiple anchors: 10 in
• D-ring bracket material: Zinc plated steel
• D-ring material: Forged alloy steel
• Includes: Anchor and anchor bolt / mounting hardware
• Application: Concrete anchorage for personal fall arrest, restraint, work positioning, and rescue
