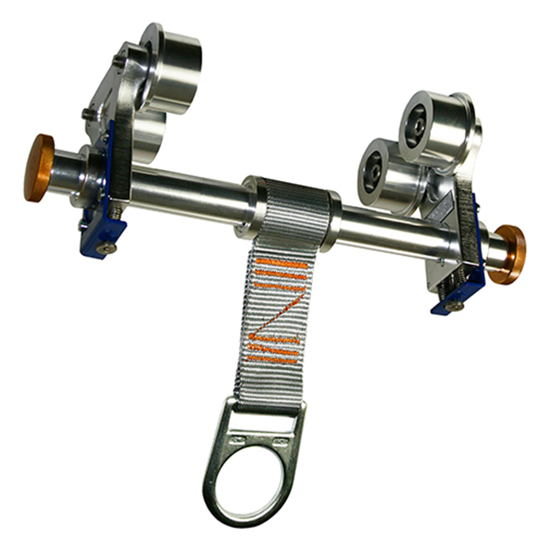

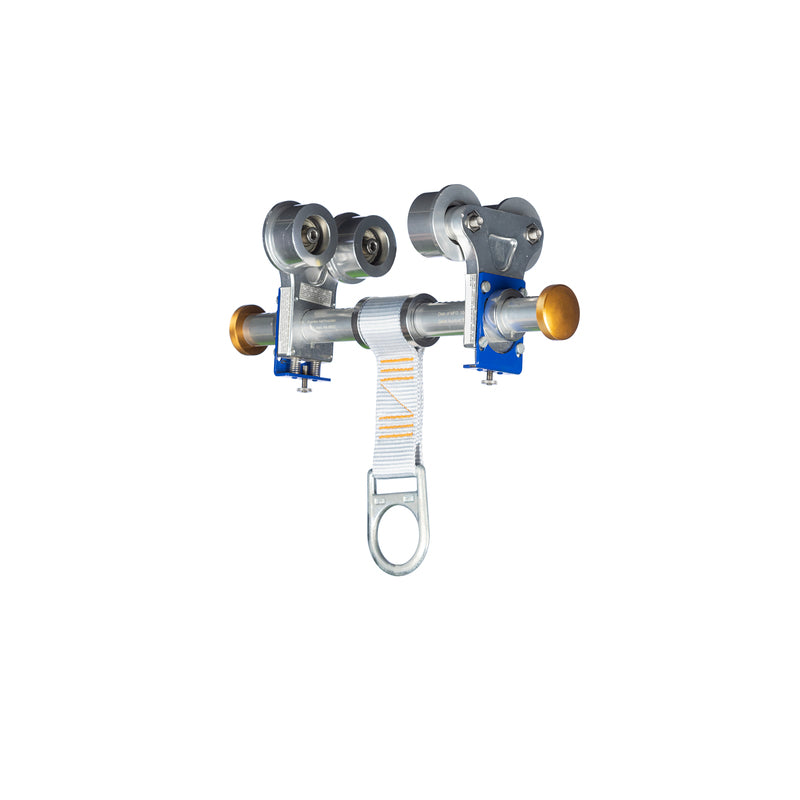

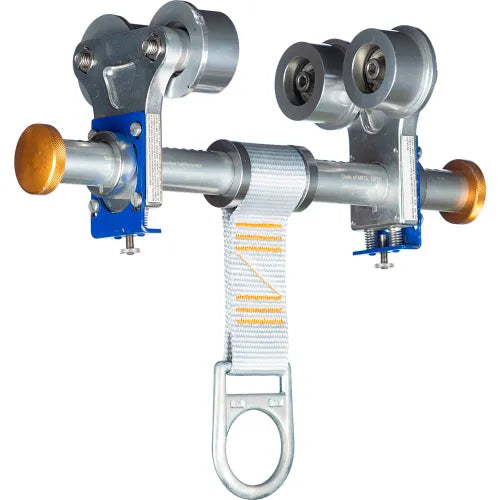

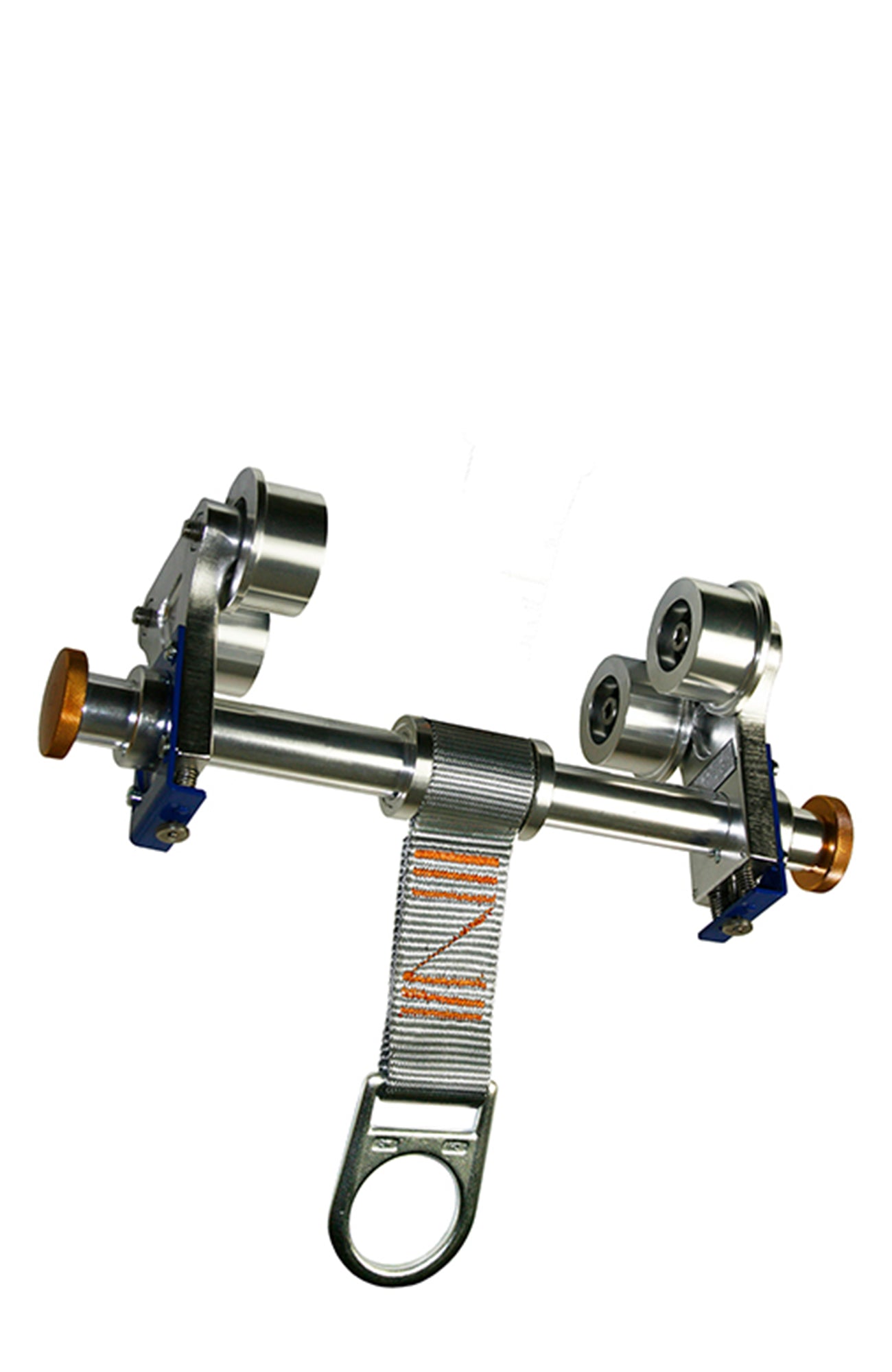

Guardian Fall Protection 00215 Beamer Trolley Anchor Fits 3 to 10 in Flange Width 130-420 lb Capacity

Product Description

Guardian Fall Protection 00215 is a Beamer trolley anchor designed for fall arrest, restraint, and work positioning. The unit fits 3 to 10 in I-beams with flange thickness up to 0.9 in and supports a working capacity of 130–420 lb. Free-moving rollers enable smooth travel while remaining tied off; safety locking toggles allow easy clamp adjustment. Constructed from stainless steel, aluminum, nickel-plated steel, and polyester; intended for use with shock-absorbing lanyards or self-retracting lifelines.

• Fits 3 to 10 in beam flanges up to 0.9 in thick; sliding beam trolley design for travel along the beam
• Free-moving rollers for smooth travel while tied off and safety locking toggles to prevent accidental clamp slippage
• Constructed of stainless steel, aluminum, nickel-plated steel, and polyester; compatible with shock-absorbing lanyards and self-retracting lifelines

Product Highlights

Sliding beam trolley anchor for single-user fall arrest, fits 3–10 in flanges, 130–420 lb capacity, free-rolling design with safety locking toggles, ANSI and OSHA compliant.

Product Information

Standard Information

• Brand: GUARDIAN FALL PROTECTION
• Manufacturer Part Number: 00215

Technical Specifications

• Brand: Guardian Fall Protection
• Manufacturer Part Number: 00215
• Model/Series: Beamer (BMR) / Beamer Series
• Product Name: Beamer Trolley Anchor
• Type: Sliding beam trolley / beam anchor
• Install Type: Beam
• Fits Beam/Flange Width: 3 to 10 in
• Max Flange Thickness: 0.9 in
• Working Capacity / Weight Capacity: 130-420 lb
• Min Breaking Strength: 5,000 lb
• Materials: Stainless steel; Aluminum; Nickel plated steel; Polyester
• Load Bar Material: Aluminum alloy 7075-T6
• Clamps (Jaws) Material: Aluminum alloy 7075-T6
• D-ring Material: Steel alloy SAE4140 with nickel plating
• Spring Material: Stainless steel
• Webbing Material: Polyester
• Weight: 8 lb (3.63 kg)
• Package Dimensions: 16.0 x 6.0 x 6.0 (units likely inches)
• Product Dimensions (packaged): 16.0 x 6.0 x 6.0 in
• Intended Applications: Fall arrest; Restraint; Work positioning; Personal fall arrest
• Certifications: OSHA 1910; OSHA 1926 Subpart M; ANSI Z359.18-17; ANSI A10.32-12
