Product Description

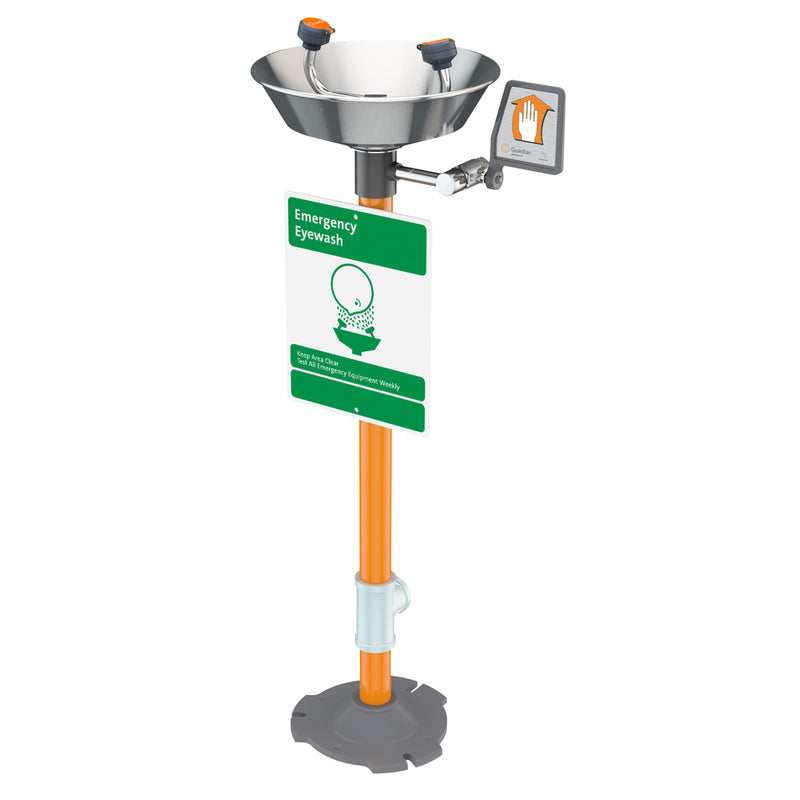

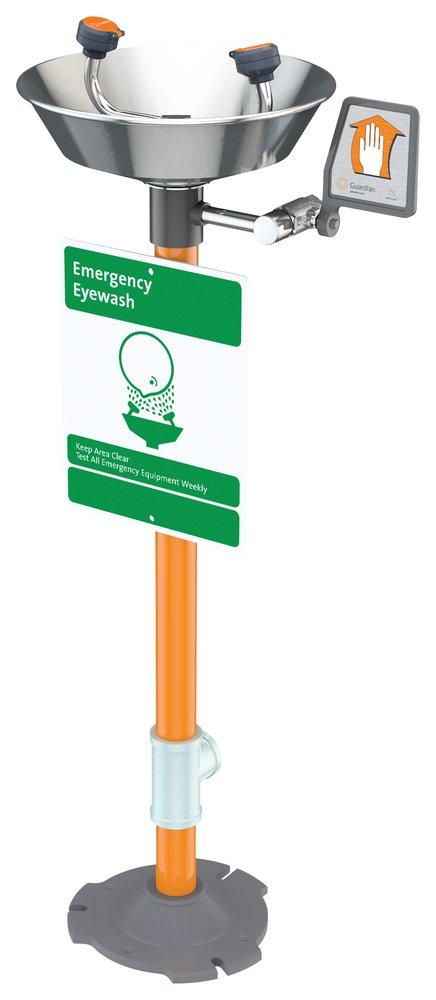

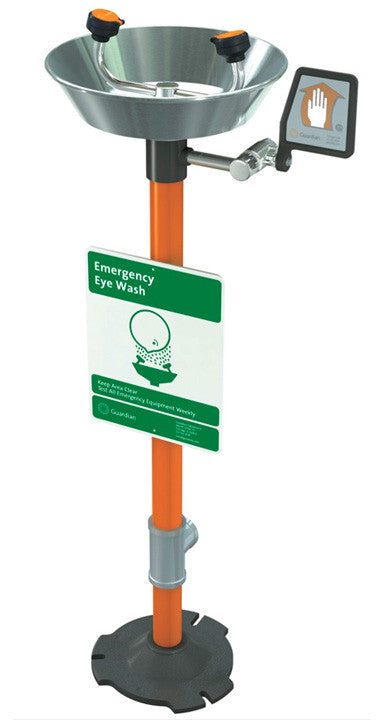

The GUARDIAN EQUIPMENT G1825 is a free-standing, pedestal-mounted eyewash with a stainless steel bowl. Features two GS-Plus spray heads that deliver a flood of water for rinsing eyes. Designed for use in areas where a water supply prohibits the use of wall-mounted units.
- Stainless steel bowl
- GS-Plus spray heads with flip-top dust cover, internal flow control and filter
- 1/2" IPS chrome plated brass stay-open ball valve
Product Highlights
This eyewash station provides immediate and effective first aid treatment. It meets ANSI Standard Z358.1 specifications and includes an ANSI-compliant identification sign.
Product Information
Standard Information
-
Brand: GUARDIAN EQUIPMENT
-
Manufacturer Part Number: G1825
-
Country of Origin: US

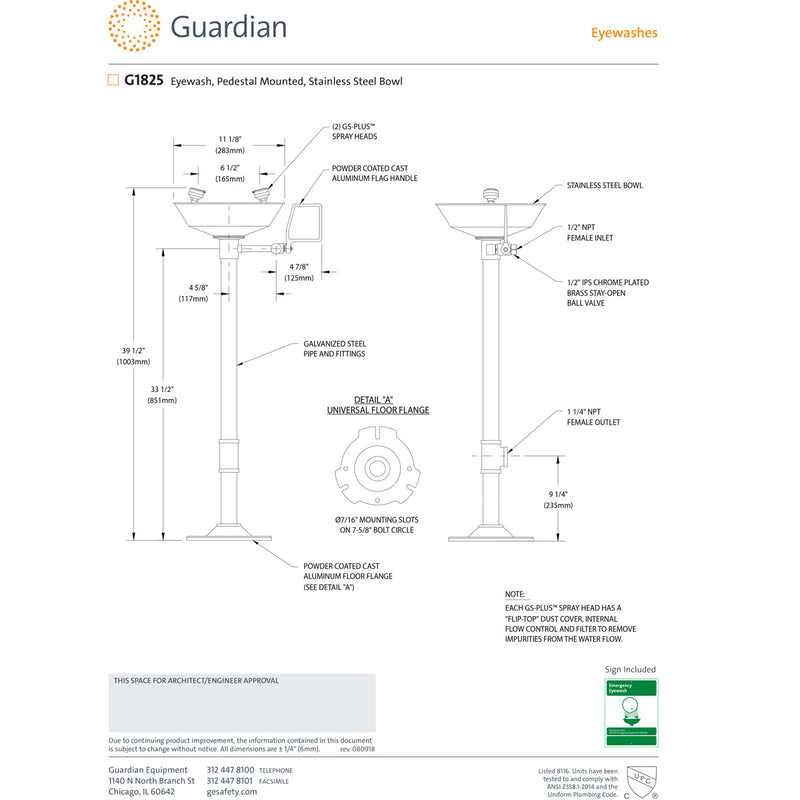

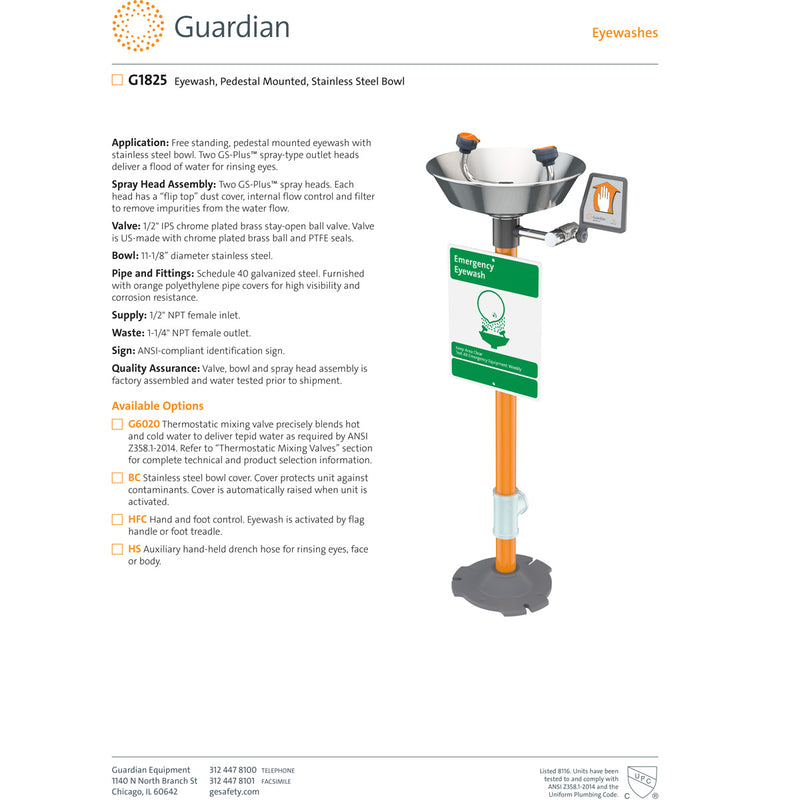

Technical Specifications
-
Spray Head Assembly: Two GS-Plus
spray heads
-
Valve: 1/2" IPS chrome plated brass stay-open ball valve
-
Application: Free standing, pedestal mounted eyewash
-
Waste: 1-1/4" NPT female outlet
-
Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene pipe covers for high visibility and corrosion resistance
-
Supply: 1/2" NPT female inlet
-
Bowl: 11-1/8
diameter stainless steel
-
Valve Material: Chrome Plated Brass
-
Sign: ANSI-compliant identification sign
-
Type: Eyewash Station
-
Brand: Guardian Equipment
-
Material: Stainless Steel
-
Bowl Material: Stainless Steel
-
Pipe Material: Galvanized Steel
-
Number of Heads: 2
-
Inlet Size: 1/2 in NPT (F)
-
Fitting Material: Galvanized Steel
-
Assembly Required: Yes
-
Mounting Location: Pedestal Mount
-
Eyewash Activation: Hand Control
-
Bowl Diameter: 11-1/2 in
-
Head Diameter: 1-1/2 in
-
Eyewash Flow Pressure: 30 psi
-
Eyewash Handle Material: Aluminum
-
ADA Compliant: No
-
Eye/Face Wash Spray Heads: GS-Plus
-
Manufacturers Part Number: G1825
-
ANSI Certification: ANSI Z358.1-2014
-
Mount Type: Floor
-
Product Type: Eye & Face Wash Stations
-
Activation Method: Push Flag
-
Bowl Diam: 11-1/8 in
-
Flow Rate: 1.6 GPM
-
Includes: ANSI-Compliant Sign; Pedestal; Spray Head Covers; Stainless Steel Bowl
-
Outlet Size: 1-1/4 in NPT (F)
-
Item Type: Pedestal mounted eyewash
-
Mounting: Pedestal
-
Bowl Dia.: 11 1/2 in
-
Width: 16 in
-
Depth: 11.5 in
-
Height: 38 in
-
Standards: ANSI Z358.1-2014
-
Eye Wash and Shower Mounting: Pedestal
-
Eye Wash Bowl Material: Stainless Steel
-
Spray Head Material: Polypropylene
-
Eye Wash Activates By: Push Handle
-
Eye Wash Covering: No
-
Assembled/Unassembled: Unassembled
-
Fitting Size: 1/2 in NPT Female
-
Number of Spray Heads: 2.0
-
Handle Material: Aluminum
-
Outlet Pipe Size: 1 1/4 in
-
Spray Head Diameter: 1 1/2 in
-
Inlet Connection: 1/2 in NPT Female
-
Inlet Pipe Size: 1/2 in
-
Country of Origin (subject to change): United States
