Guardian Equipment G1200 EyeSafe Eyewash, Faucet Mount, Shut-Off

Product Description

The GUARDIAN EQUIPMENT G1200 EyeSafe faucet-mounted eyewash converts any faucet into an emergency eyewash station without interfering with normal faucet operation. It can be installed at any sink, close to where accidents might occur, providing an unlimited supply of potable water for rinsing eyes. The faucet control valve offers single motion eyewash activation.

• Converts any faucet into an emergency eyewash station
• Does not interfere with normal faucet operation
• Can be installed at any sink
• Provides an unlimited supply of potable water
• Faucet control valve offers single motion eyewash activation

Product Highlights

Faucet-mounted eyewash station with single-motion activation for emergency use.

Product Information

Standard Information

• Brand: GUARDIAN EQUIPMENT
• Manufacturer Part Number: G1200
• Country of Origin: United States

Technical Specifications

• Type: Eyewash Station
• Brand: Guardian Equipment
• Includes: Instructions, Installation Hardware
• Description: Universal Faucet Mounted Eye Wash
• Number of Heads: 2
• Package Quantity: 1
• Eyewash Flow Rate: 0.65 gal/min
• Mounting Location: Faucet Mount
• Eyewash Activation: Pull Knob
• Mount Type: Faucet
• Product Type: Eye & Face Wash Stations
• Manufacturer Product Page: http://www.gesafety.com/products/faucet_mounted/G1200.shtml
• Item [Specifications]: Plumbed Eyewash
• Color [Specifications]: Silver
• Depth [Specifications]: 2.25 in
• Width [Specifications]: 4.25 in
• Brands [Specifications]: GUARDIAN EQUIPMENT EyeSafe
• Height [Specifications]: 3.5 in
• Series [Specifications]: EyeSafe
• Assembly [Specifications]: Assembled
• Coverage [Specifications]: Eyes
• Includes [Specifications]: Vinyl Pop Off Dust Covers, Hi-Visibility Identification Sign And Inspection Tag, Removable Aerator, Adapters 15/16-27, 13/16-27 and 3/8 in IPS
• Head Dia. [Specifications]: 1 in
• Standards [Specifications]: ANSI Z358.1-2014
• Activation [Specifications]: Pull Knob
• Bowl Style [Specifications]: No Bowl
• Environment [Specifications]: General Purpose
• Barrier Free [Specifications]: No
• Fitting Size [Specifications]: 55/64 in-27 Female
• ADA Compliant [Specifications]: No
• ADA Compliance [Specifications]: No
• ANSI Compliant [Specifications]: Yes
• Valve Material [Specifications]: Brass
• ANSI Compliance [Specifications]: Supplemental Only
• Handle Material [Specifications]: Aluminum
• Inlet Pipe Size [Specifications]: 43/50 in
• Activation Style [Specifications]: Pull Knob with Faucet Diverter
• Eyewash Covering [Specifications]: No
• Fitting Material [Specifications]: Chrome Plated Brass
• Spray Head Style [Specifications]: Covered
• Eye Wash Covering [Specifications]: No
• Inlet Pipe Gender [Specifications]: Female
• Installation Type [Specifications]: Plumbed
• Includes Foot Pedal [Specifications]: No
• Size (Ht x Wd x Dp) [Specifications]: 2 11/16 in x 4 1/4 in x 2 1/4 in
• Spray Head Diameter [Specifications]: 1 in
• Spray Head Material [Specifications]: Chrome Plated Brass
• Includes Drench Hose [Specifications]: No
• Assembled/Unassembled [Specifications]: Assembled
• Eye Wash Activates By [Specifications]: Pull Handle
• Eyewash Bowl Material [Specifications]: No Bowl
• Inlet Connection Type [Specifications]: 43/50 in Weld Female
• Number of Spray Heads [Specifications]: 2.0
• Eye Wash Bowl Material [Specifications]: No Bowl
• Inlet Pipe Thread Type [Specifications]: Weld
• Eye Wash Handle Material [Specifications]: Aluminum
• Hazardous Location Rating [Specifications]: Not Rated
• Eye Wash and Shower Mounting: Faucet
• Country of Origin (subject to change) [Specifications]: United States

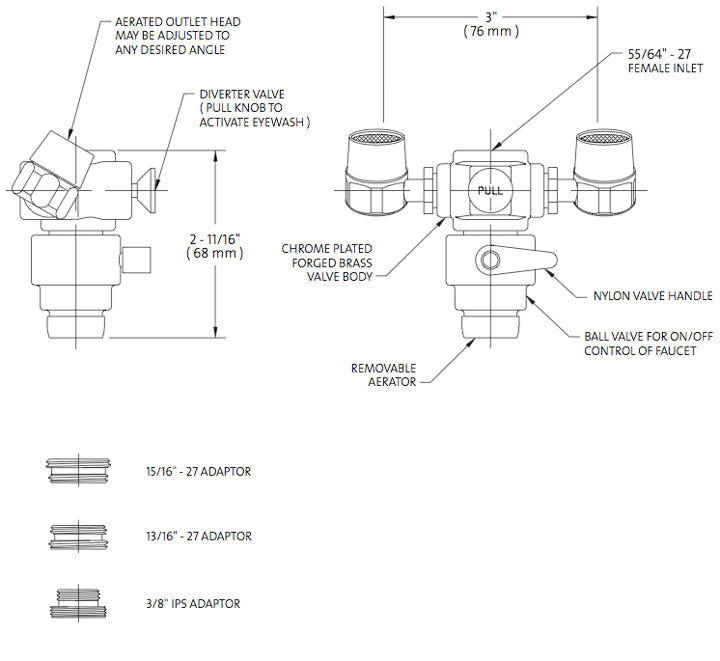

• Outlet Heads: Outlet heads are mounted 3" apart and deliver a soft, aerated flow of water. Heads angle forward toward user. Angle of heads is adjustable to permit full coverage and avoid splashing. Furnished with float-off dust covers to protect outlet heads.
• Eyewash Valve: Forged brass diverter valve.
• Faucet Control Valve: Quarter turn ball valve with chrome plated brass ball, molded PTFE seals and plastic handle.
• Inlet: Body has 55/64\"-27 female thread. Furnished with four adapters (15/16\"-27, 13/16\"-27, 3/8\" NPS and 13/16\"-24) for installing on most commonly used faucets, including laboratory-type faucets.
• Outlet: Furnished with removable aerator on bottom.
• Quality Assurance: Each unit is completely assembled and water tested prior to shipment.
• Item: Eyewash w/Diverter
• Color: Chrome
• Finish Type: Polished
• Material: Brass
• Number of Handles: 1
• Included Components: Eyewash
• Hole Count: 1
• Style: Modern
• Handle Lever Placement: Lever
• Smart Home Compatibility: Not Smart Home Compatible
• Handle Type: Cross
• Is Electric: No
• Material Type: Brass
• Handle Material: Brass
• Style Name: Modern
• Spout Design: Traditional Curve
• Room Type: Industrial/Laboratory
• Operation: Unlike conventional faucet-mounted eyewashes, the G1200 offers the ability to activate the eyewash in a single motion. The unit is equipped with a diverter valve for the eyewash and a separate control valve for the faucet. Once the unit is installed on a faucet, the faucet may be opened and left ", the flow of water is controlled by a quarter-turn ball valve and knob at the bottom of the eyewash. To use the eyewash, simply pull the knob on the front of the eyewash. Since the faucet is open, this is the only step required to activate the eyewash. Water pressure holds the eyewash in operation, leaving the user", To return to normal faucet operation, push the knob in or turn off the faucet.
