Guardian Equipment AP275-615 Flow Switch Alarm 1-1/4 in. IPS

Product Description

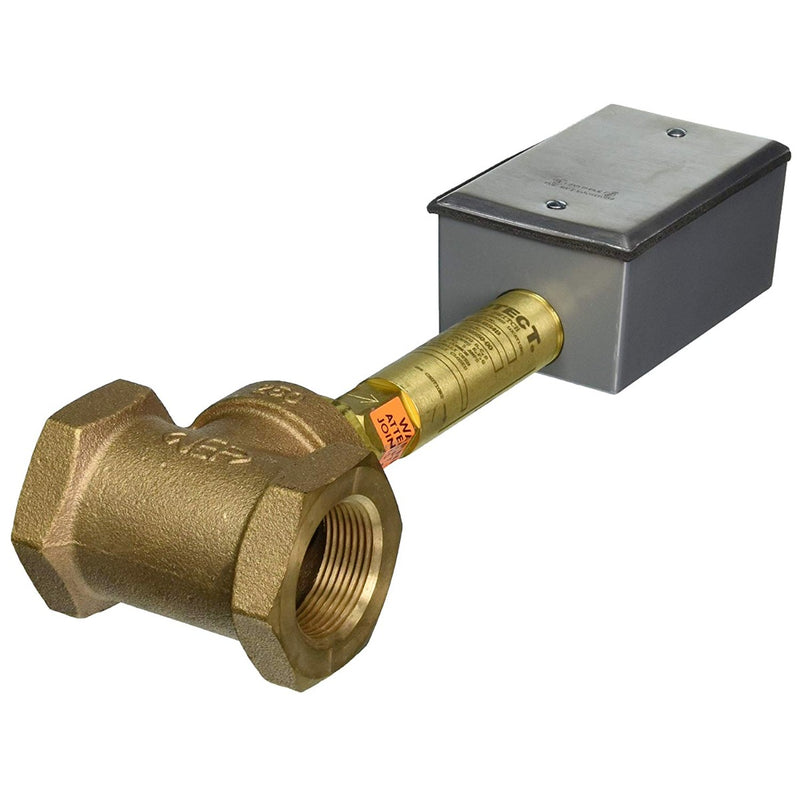

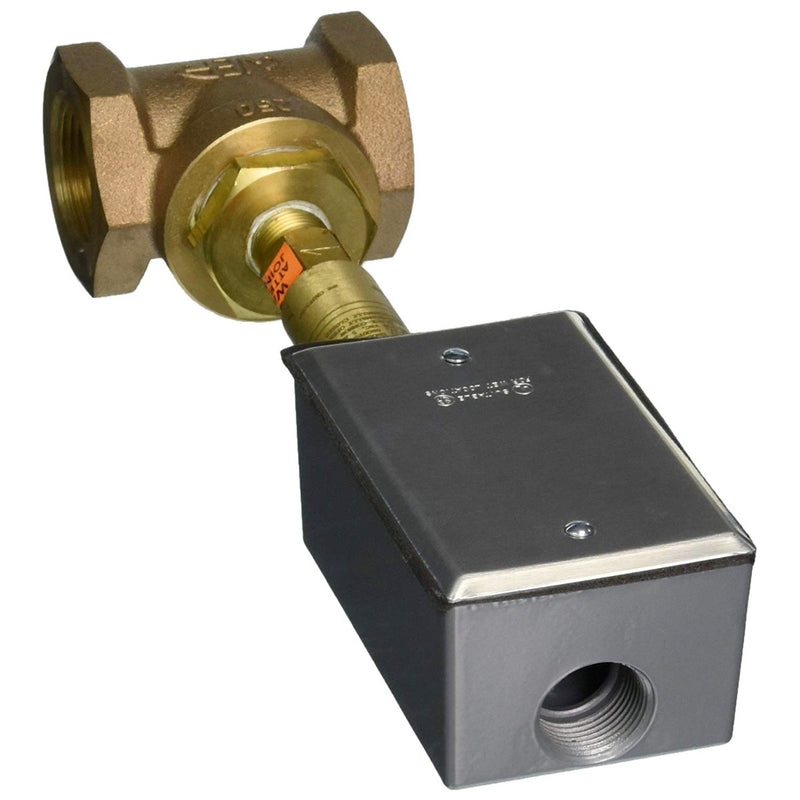

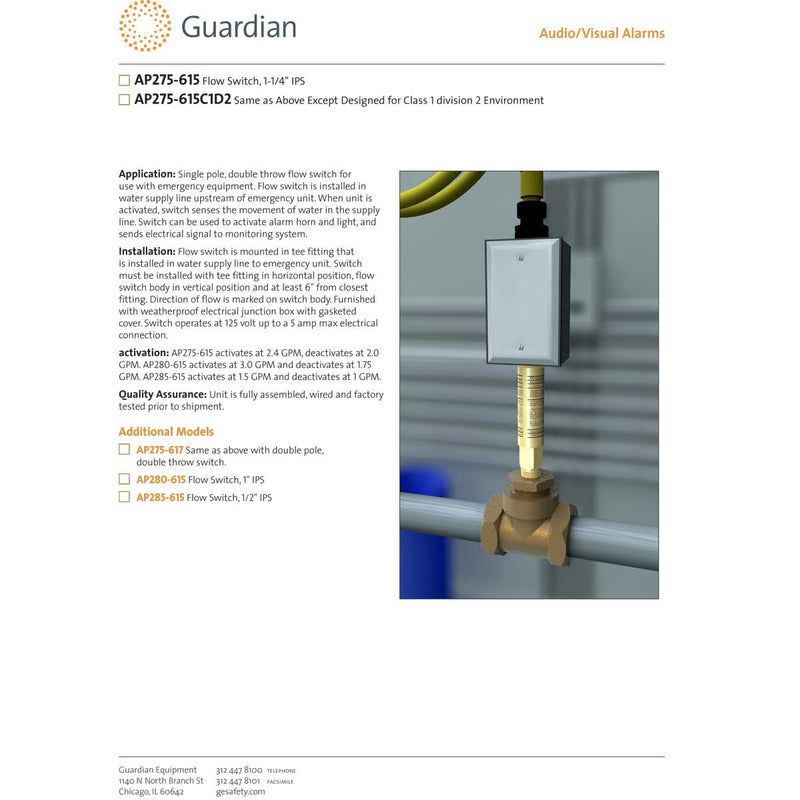

The GUARDIAN EQUIPMENT AP275-615 flow switch alarm is a single pole, double throw flow switch for use with emergency equipment. Installed in the water supply line upstream of the emergency unit, it senses water movement to activate alarm horns, lights, or monitoring systems. It features a weatherproof junction box with a gasketed cover.

• Single Pole, Double Throw Flow Switch
• Activates At 0.75 gpm
• Deactivates At 0.60 gpm

Product Highlights

This flow switch is for use with emergency equipment. It is installed in the water supply line and activates at 0.75 GPM and deactivates at 0.60 GPM.

Product Information

Standard Information

• Brand: GUARDIAN EQUIPMENT
• Manufacturer Part Number: AP275-615
• Country of Origin: United States

Technical Specifications

• Make: GUARDIAN EQUIPMENT
• MPN: AP275-615
• Amps: 5 A
• Item: Flow Switch
• Series: Guardian Alarm for Emergency Eyewash and Showers
• Current: 5 A
• Features: Single Pole, Double Throw Flow Switch, Activates At 0.75 gpm, Deactivates At 0.60 gpm
• Includes: Junction Box with Gasket Cover
• Material: Stainless Steel
• Standards: UL and CSA Approved for C1D1 Environments, Groups B, C, D, E, F, G
• For Use With: Alarm, Shower with Eyewash
• Sub-Category: Audio/Visual Alarm
• Accessory Type: Flow Switch
• Compatible with Brand: Guardian
• Remote Monitoring Capable: Yes
• Compatible Inlet Pipe Size: 1 1/4 in
• Compatible Mfr Part Number: G1902, G1902BC, G1902P, G1950, G1950BC, G1950P, G1991, G1996, GBF1909, GBF1994
• Electrical Connection Type: Hardwired
• Compatible Inlet Connection: 1 1/4 in NPT Female
• Compatible Inlet Pipe Gender: Female
• Compatible Inlet Pipe Thread Type: NPT
• Voltage: 120 V AC
• Electrical Connection: Hardwired
• Height: 12 in
• Width: 6 in
• Depth: 12 in
