Guardian 10010 5/8 X 6 Swivel Anchor With Expansion Anchor 12110010

Product Description

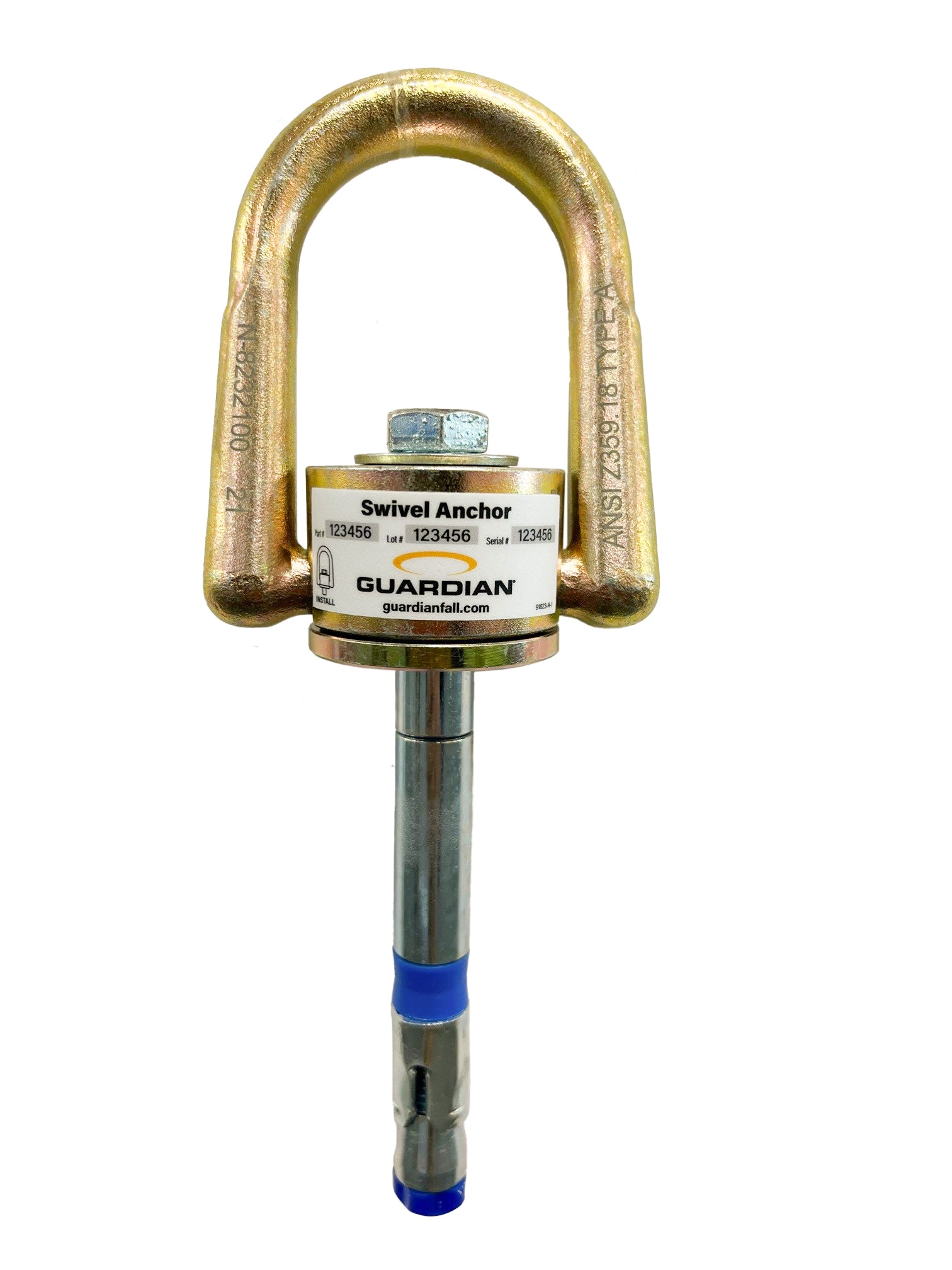

The Guardian 10010 is a 5/8 inch by 6 inch swivel anchor designed for use with concrete and metal surfaces. This anchor is equipped with a full-size D-ring for simple connections and features a dual swivel for complete 360-degree rotation. It includes a concrete expansion anchor, adjustable bolt assembly, or weld-on puck to establish a robust 10,000-pound anchor point for various applications.

• Suitable for temporary and permanent installations
• Single anchor supports loads up to 10,000 pounds
• Easy installation with 360 degrees of movement

Product Highlights

This anchor is ideal for construction sites and industrial settings, providing reliable safety for workers at height.

Product Information

Standard Information

• Brand: Guardian
• Part Number: 12110010

Technical Specifications

• Material: Metal
• Weight: 2.3 pounds
• Length: 9.25 inches
• Weight Capacity: 420 pounds
• Anchor Ring Material: Low Carbon Steel
• Anchor Ring Finish: Galvanized
• Anchor Ring Inner Width: 1.75 inches
• Compliance Standards: OSHA 1926, ANSI A10.32, ANSI Z359.1 - 2007
