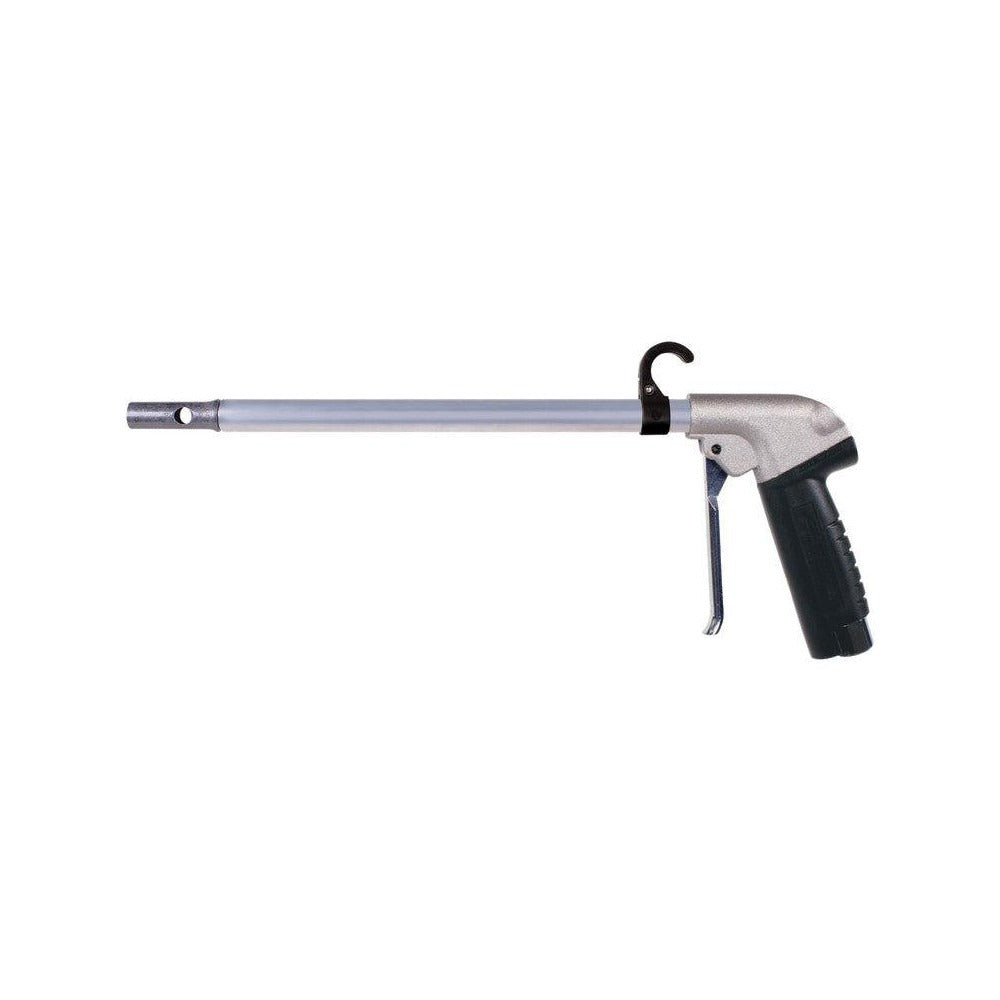

Guardair U75XT072AA3 Air Blow Gun Venturi Nozzle 72 in

Product Description

The GUARDAIR U75XT072AA3 is a heavy-duty pistol-grip air blow gun fitted with a Maximum Power Venturi Nozzle, designed to deliver the highest available thrust output for industrial cleaning, chip clearing, and part drying applications. The aluminum body keeps weight manageable at 2.25 pounds while standing up to shop-floor conditions. With a rated airflow of 66 standard cubic feet per minute (SCFM) and a maximum transmissible thrust of 3.30 units, this blow gun moves significantly more air mass than standard open-pipe nozzles. A 3/8 NPT female inlet connects directly to standard compressed-air distribution lines. The 72-inch tube extends reach into confined spaces, cavities, or deep machine enclosures without repositioning the operator.

This blow gun is suited for maintenance, manufacturing, and assembly environments where operators need extended reach and high-thrust airflow. Typical applications include machining centers, fabrication shops, automotive service bays, and general industrial production lines. The pistol-grip body style gives the technician positive control during extended use. The patented adjustable hanging hook allows the tool to be stored at the point of use, reducing downtime between tasks. At 101 decibels, operators in affected areas should follow applicable hearing-protection requirements per OSHA guidelines, which this product meets for air blow gun operation.

Key Features

• Maximum Power Venturi Nozzle generates the highest available thrust for this blow gun class
• 66 SCFM rated airflow for fast, effective debris and coolant clearing
• 72-inch tube length provides extended reach into deep enclosures and confined areas
• Aluminum body construction — lightweight at 2.25 pounds with durable shop-floor resistance
• 3/8 NPT female inlet for direct connection to standard compressed-air lines
• Patented adjustable hanging hook for convenient point-of-use storage
• OSHA compliant for air blow gun applications

Compatibility

Designed for use with standard compressed-air systems equipped with 3/8 NPT female-threaded distribution ports, typical of industrial and commercial shop-air setups.

Installation Notes

Installation is performed by a qualified maintenance technician or pneumatic systems operator. Depressurize and bleed the air line before connecting or disconnecting the blow gun from the supply fitting. Verify the supply line is rated for the operating pressure required and that fittings are thread-sealed appropriately before restoring pressure. Always direct airflow away from personnel, and confirm that all operators in the work area comply with applicable OSHA hearing-protection and personal protective equipment requirements during use.
