Guardair U74SFA Fan Tip Air Blow Gun 3/8 Npt

Product Description

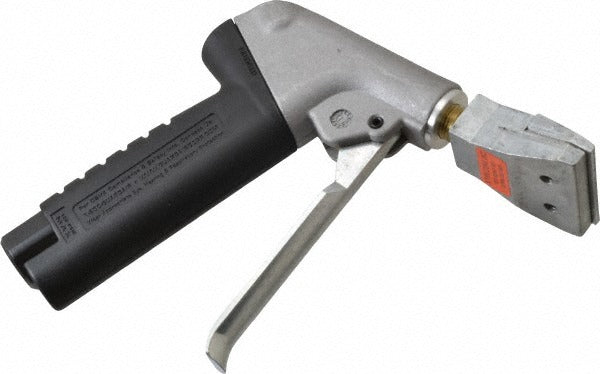

The GUARDAIR U74SFA is a fan-tip air blow gun designed for industrial and shop air applications. It delivers a wide, flat airstream at up to 37 standard cubic feet per minute (SCFM), making it effective for clearing chips, dust, and debris from broad surfaces. The body and nozzle are cast zinc, providing durability in demanding shop environments. It connects via a 3/8 NPT female inlet and operates across a wide temperature range, from -30 degrees F to 180 degrees F. Rated at 83 decibels, it is a relatively low-noise option compared to standard open-pipe blow-off. Licensed tradespeople and maintenance technicians install this type of tool as part of compressed air station setups.

The U74SFA suits general-purpose blow-off tasks in manufacturing, fabrication, automotive, and HVAC service shops. The fan-tip nozzle spreads airflow across a wider area than a single-point nozzle, making it practical for cleaning flat surfaces, clearing coolant from machined parts, or drying components before assembly. At 6.6 inches in overall length, it is a compact tool suited for both bench-mounted air stations and portable compressor setups. It threads directly onto standard 3/8 NPT compressed air fittings and hose assemblies.

Key Features

• Fan-tip nozzle delivers a wide, flat airstream for broad surface coverage
• 37 SCFM output for effective debris and coolant clearing
• Zinc body and nozzle construction for shop durability
• 83 dB noise rating for reduced operator fatigue compared to open-pipe blow-off
• Operating range of -30 degrees F to 180 degrees F suits most shop environments
• 3/8 NPT female inlet threads onto standard compressed air fittings

Compatibility

Designed as a direct-thread replacement or addition for compressed air systems using standard 3/8 NPT fittings and hose connections common in industrial, automotive, and HVAC service environments.

Installation Notes

Installation is performed by maintenance technicians or qualified shop personnel. Depressurize the air line completely before threading the blow gun onto the fitting to avoid injury. Apply thread sealant tape to the male NPT fitting threads before assembly and hand-tighten, then snug with a wrench — do not overtighten zinc-body fittings. Always point the nozzle away from personnel when pressurizing the line for the first time.
