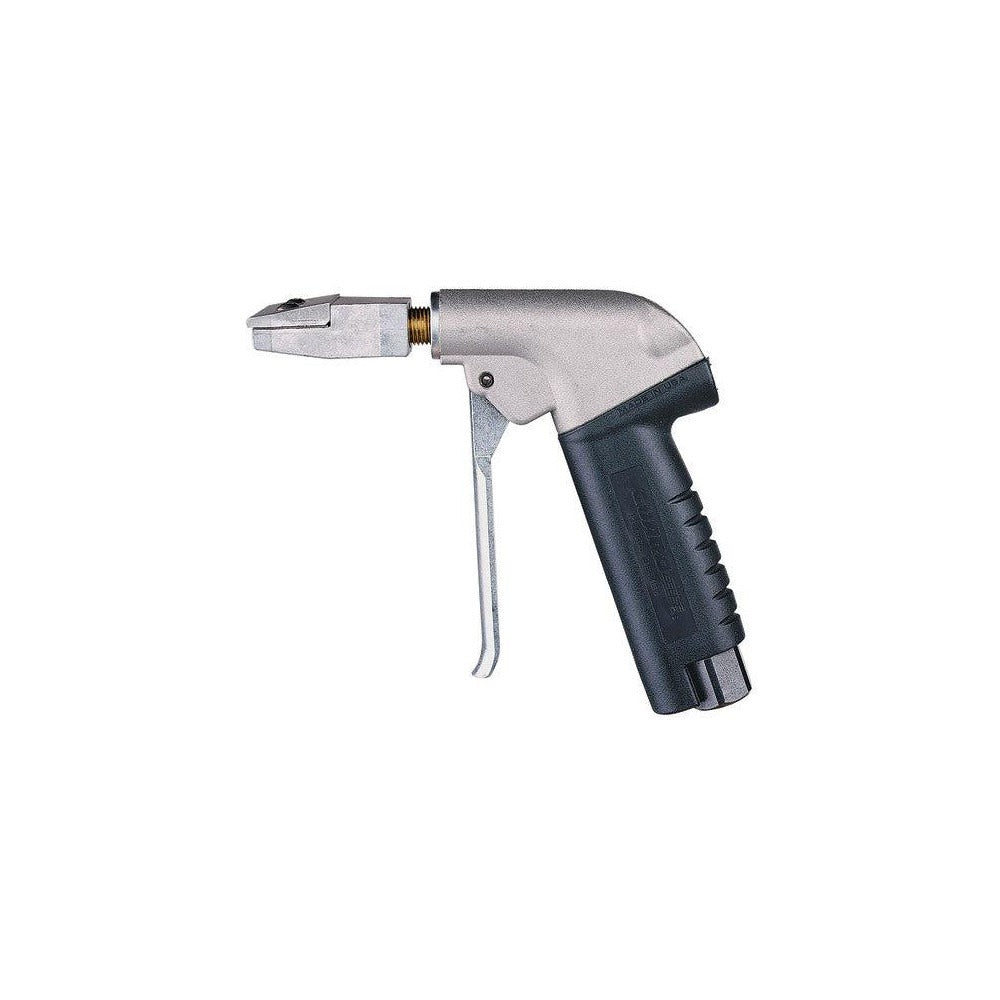

Guardair U74FA Fan Tip Air Blow Gun 3/8 Npt

Product Description

The GUARDAIR U74FA is a fan-tip air blow gun designed for industrial and shop compressed-air applications. The fan tip delivers a wide, flat air pattern suited for clearing chips, debris, and moisture from broad surfaces. The zinc body and zinc nozzle provide corrosion resistance and durability in typical shop environments. With a 3/8 NPT female inlet, the gun connects directly to standard compressed-air lines. It flows 22 standard cubic feet per minute (SCFM) and operates across a wide temperature range of -30 degrees F to 180 degrees F, making it suitable for both cold-storage and heated shop conditions. Installation and use requires no special tooling beyond a wrench for the inlet connection. Technicians in manufacturing, automotive, HVAC, and general maintenance shops rely on this tool for daily blowdown tasks.

The U74FA is appropriate for light industrial and professional shop use where a fan-pattern air blast is preferred over a concentrated stream. The fan tip spreads airflow across a wider area, reducing the need for multiple passes when clearing flat surfaces such as machined parts, work benches, or equipment panels. At 77 decibels, it operates at a sound level below many standard blow guns, which is a practical consideration in noise-sensitive work areas. The overall length of 6.6 inches and a weight of 1.4 pounds keep it manageable during extended use.

Key Features

• Fan tip delivers a wide, flat air pattern for efficient surface blowdown
• 22 SCFM airflow for effective chip and debris clearing
• 77 dB decibel rating for reduced noise compared to many standard blow guns
• Zinc body and nozzle construction for corrosion resistance in shop environments
• 3/8 NPT female inlet fits standard compressed-air line connections
• Operating range of -30 degrees F to 180 degrees F suits a wide range of work environments

Compatibility

Designed for use with compressed-air systems equipped with 3/8 NPT threaded fittings. Suitable as a replacement or additional blow gun for industrial, automotive, and general maintenance shop air lines.

Installation Notes

Installation is performed by a technician or qualified shop personnel familiar with compressed-air systems. Depressurize and lock out the air supply before connecting or disconnecting the blow gun from the air line. Use thread sealant tape on the NPT inlet threads to ensure a leak-free connection. Always direct airflow away from personnel and never exceed the system pressure rating of the connected air circuit.
