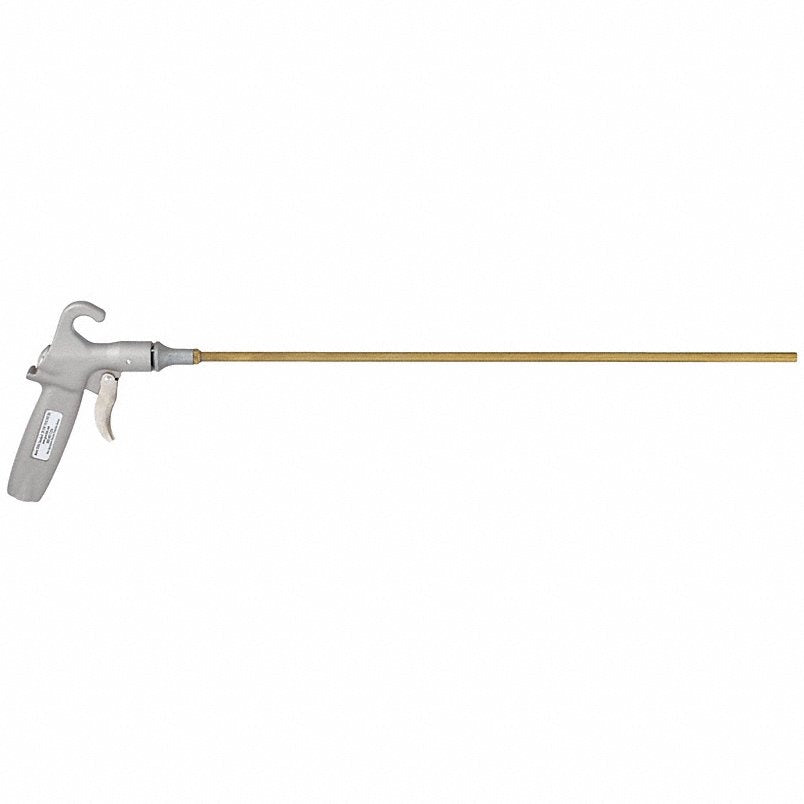

Guardair 76s018 Pistol-grip Air Gun 120 Psi Aluminum

Product Description

The GUARDAIR 76s018 is a pistol-grip compressed air gun designed for stubborn and difficult blowoff applications in industrial and trade environments. Built with an aluminum body and a brass Air-Shield nozzle, it delivers a focused airstream at up to 120 psi inlet pressure with an air consumption rate of 35 SCFM. The 18-inch extension puts the nozzle where it needs to be in tight or hard-to-reach areas. The pistol-grip handle positions the trigger in front for fingertip control, reducing hand fatigue compared to thumb-lever designs. Licensed HVAC techs, machinists, automotive technicians, and general maintenance professionals are the primary users. The gun ships with a chip shield, extension, nozzle, and hanging hook included.

This air gun is suited for industrial maintenance, manufacturing floors, automotive shops, and commercial facility service where debris clearance from machinery, assemblies, or work surfaces demands a focused, high-thrust airstream. The 23-3/4-inch overall length and focused nozzle pattern make it effective at directing air into recessed cavities or around obstructions. At 1 lbf output thrust, it moves stubborn chips, shavings, and debris without requiring a secondary nozzle selection.

Key Features

• OSHA 1910.242(B) compliant — meets dead-end pressure requirements for safe blowoff use
• Air-Shield nozzle is pinned and tamper-proof, preventing field modification
• Chip shield included to protect the operator from airborne debris
• 18-inch extension provides reach into confined areas
• Focused airflow pattern concentrates thrust for stubborn debris removal
• Hanging hook included for tool storage at the workstation

Compatibility

Designed for use with standard 1/4-inch female NPT compressed air supply lines. Intended for stubborn and difficult blowoff applications where OSHA-compliant, focused-airstream tools are required.

Installation Notes

A licensed or qualified technician should verify that the compressed air supply does not exceed 120 psi at the inlet before connecting this tool. Shut off and bleed the air line before attaching or removing the gun from the supply. Safety glasses and appropriate PPE are recommended during use given the 104 dB sound level and potential for airborne debris. Confirm the air supply fitting is 1/4-inch NPT male before connection.

Technical Specifications

• Body Material: Aluminum
• Tip Material: Brass
• Maximum Inlet Pressure: 120 psi
• Air Consumption: 35 SCFM
• Output Thrust: 1 lbf
• Air Inlet Size: 1/4 inches
• Air Inlet Type: NPT Female
• Air Outlet Size: 1/4 inches
• Grip Style: Pistol-Grip
• Nozzle Angle: Straight
• Nozzle Type: Air-Shield
• Number of Nozzles Included: 1
• Extension Length: 18 inches
• Overall Length: 23.75 inches
• Overall Width: 6.625 inches
• Trigger Length: 2.5 inches
• Sound Level: 104 dB
• Chip Guard Included: Yes
• OSHA Pressure Compliant: Yes
• Standards: OSHA 1910.242(B)
• Color: Silver
• Country of Origin: USA (subject to change)

Standard Information

• Brand: GUARDAIR
• Manufacturer Part Number: 76s018
