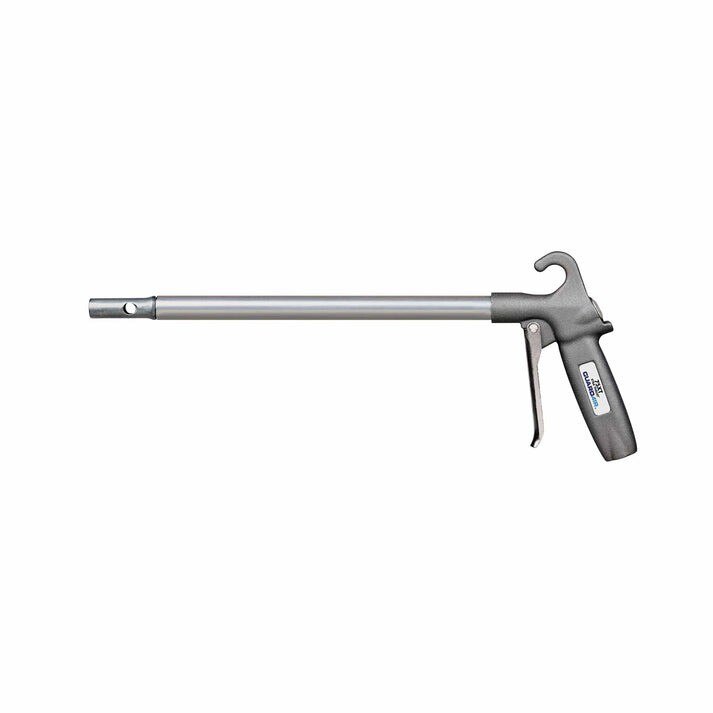

Guardair 75XT012AAJ75 Compressed Air Gun 120 Psi Fnpt

Product Description

The GUARDAIR 75XT012AAJ75 is a high-thrust compressed air gun designed for industrial and trade environments where conventional air guns lack the force to clear heavy debris or stubborn buildup. Built on the XtraThrust Series platform, it delivers over 300% more thrust than standard air guns while limiting static pressure to below 30 psi if the nozzle tip becomes blocked, meeting OSHA dead-end pressure requirements. The cast aluminum body is durable and lightweight, and the zinc alloy XtraThrust nozzle handles demanding continuous-use applications. A full-length comfort trigger and ergonomic Classic+ pistol grip reduce fatigue during extended operation.

This air gun is suited for industrial maintenance, manufacturing, and heavy-duty cleaning tasks where high-volume debris removal is required. The 1/4 inch FNPT inlet connects to standard compressed air lines operating up to 120 psi. The rugged aluminum extension directs airflow into tight or hard-to-reach areas. Typical users include maintenance technicians, industrial facilities personnel, and trade professionals performing equipment blowout, mold cleaning, or conveyor-line clearance tasks.

Key Features

• XtraThrust nozzle generates over 300% more thrust than conventional air guns
• Static pressure limited to below 30 psi at blocked tip — meets OSHA standards
• Durable cast aluminum body with integrated hanging hook
• Full-length comfort trigger for reduced hand fatigue during extended use
• Rugged aluminum extension for directed airflow into confined areas
• 1/4 inch FNPT inlet for standard compressed air line connection

Compatibility

Designed for use with standard compressed air systems supplying up to 120 psi through a 1/4 inch FNPT connection.

Installation Notes

Installation and connection should be performed by a qualified maintenance technician or industrial equipment professional. Shut off and bleed the compressed air line before attaching or removing the air gun from the supply fitting. Verify the supply line pressure does not exceed 120 psi before use. Always wear appropriate eye and hearing protection when operating compressed air tools, in accordance with applicable OSHA and facility safety standards.

Technical Specifications

• Maximum Inlet Pressure: 120 psi
• Blocked-Tip Static Pressure Limit: Below 30 psi
• Inlet Connection: 1/4 inch FNPT
• Body Material: Cast aluminum
• Nozzle Material: Zinc alloy
• Weight: 3 pounds

Standard Information

• Brand: GUARDAIR
• Manufacturer Part Number: 75XT012AAJ75
