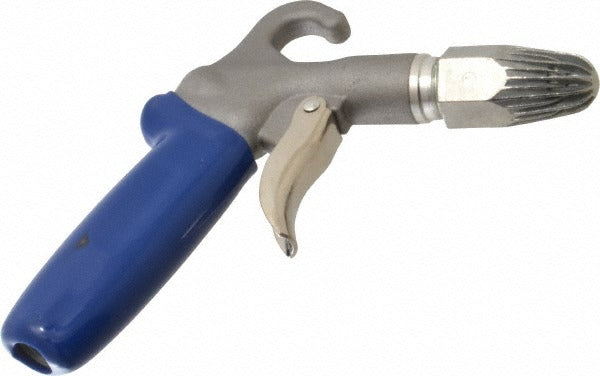

Guardair 74GHT50 High Thrust Air Blow Gun 1/4 Npt

Product Description

The GUARDAIR 74GHT50 is a high thrust air blow gun designed for industrial and shop air systems where focused, high-force airflow is required. Built with a zinc body and zinc nozzle, this blow gun delivers up to 60 standard cubic feet per minute (SCFM) of airflow through a 1/4 NPT female inlet. The high thrust tip concentrates airflow for effective chip clearing, coolant removal, and part drying. At 6.7 inches overall length and 0.58 pounds, it is a compact, durable hand tool suited to production floors, maintenance shops, and service bays. The 87-decibel rating keeps noise within a manageable range for typical shop environments.

This blow gun is appropriate for use in general manufacturing, automotive service, HVAC and refrigeration shops, plumbing shops, and any facility running a compressed air distribution system. It connects directly to a 1/4 NPT air supply line or quick-connect fitting. The high thrust tip style makes it well suited for applications requiring directed, penetrating airflow rather than wide-area dispersal. It performs across a broad temperature range of -30 degrees F to 180 degrees F, making it usable in both cold storage environments and high-heat shop settings.

Key Features

• High thrust tip delivers focused, penetrating airflow for chip clearing and part drying
• 60 SCFM airflow capacity with up to 3.30 units maximum transmissible thrust
• Zinc body and nozzle construction for durability in shop environments
• 1/4 NPT female inlet fits standard compressed air supply lines and quick-connect adapters
• Operating temperature range: -30 degrees F to 180 degrees F
• 87 dB sound rating at rated flow

Compatibility

Designed for use with standard 1/4 NPT compressed air supply systems in industrial, maintenance, and trade shop environments.

Installation Notes

Installation is performed by connecting the 1/4 NPT female inlet to a compatible male NPT air fitting or quick-connect body on the compressed air supply line. Depressurize the air line before making or breaking any threaded connections. Apply thread sealant tape to male NPT threads per standard shop practice. Verify supply pressure does not exceed the maximum rated operating conditions before use.
