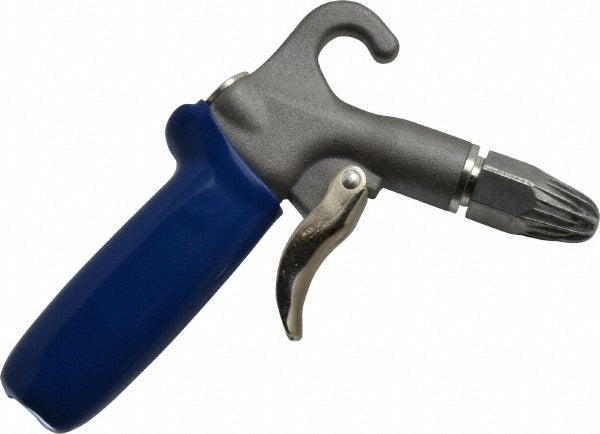

Guardair 74GHT37 High Thrust Air Blow Gun 1/4 Npt

Product Description

The GUARDAIR 74GHT37 is a high thrust air blow gun designed for industrial and shop applications where focused, high-force airflow is needed to clear debris, dry surfaces, or move material. Built with a zinc body and zinc nozzle, it delivers up to 35 standard cubic feet per minute (SCFM) of airflow through a 1/4 NPT female inlet. The gun operates across a wide temperature range, from -30 degrees F to 180 degrees F, making it suitable for demanding environments. At 82 decibels, it meets typical shop noise levels without requiring special hearing protection in most facilities. The overall length is 6.7 inches, and the unit weighs 0.68 pounds.

This blow gun is used in manufacturing facilities, automotive shops, HVAC service environments, machine shops, and general maintenance settings. It is well suited for tasks like clearing shavings from machined parts, blowing out condenser coils, drying components after washing, and general air-cleaning tasks on equipment. The high thrust tip type concentrates airflow for maximum force at the target area. Any technician or maintenance professional working with compressed air systems will find this a practical handheld tool for daily shop use.

Key Features

• High thrust tip delivers focused, high-force airflow for clearing debris and drying surfaces
• 35 SCFM airflow rating for strong, consistent output
• Zinc body and nozzle construction for durability in shop environments
• 1/4 NPT female inlet threads to standard shop air lines
• Wide operating temperature range: -30 degrees F to 180 degrees F
• Compact at 6.7 inches overall length and 0.68 pounds

Compatibility

Designed as a standard replacement or addition to compressed air tool setups using 1/4 NPT fittings, compatible with typical shop air supply lines and quick-connect systems fitted with 1/4 NPT male adapters.

Installation Notes

Installation is performed by any technician working with compressed air systems. Shut off and bleed the compressed air line before connecting or disconnecting the blow gun. Thread the 1/4 NPT inlet onto a compatible male fitting and tighten to a snug, leak-free connection using appropriate thread sealant or tape per shop practice. Do not exceed the rated maximum temperature or pressure limits of the fitting and air line assembly.
