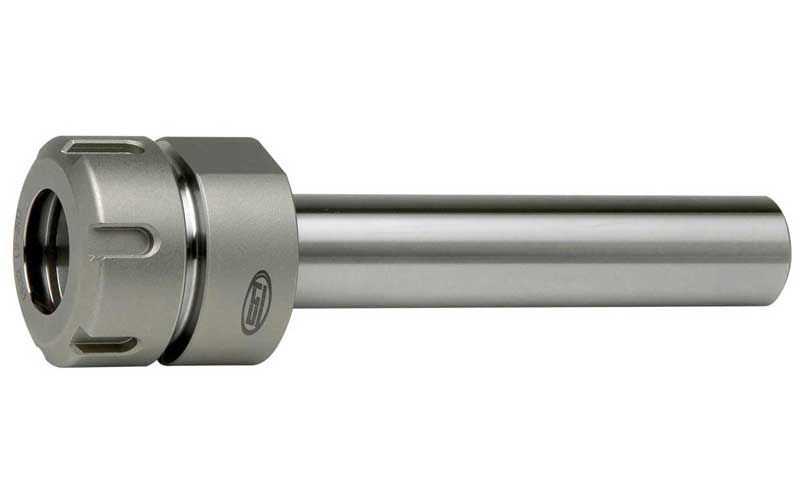

GS 534388 GS ER25 1x6.85 Straight Shank Collet Chuck

Product Description

The GS ER25 1x6.85 straight shank collet chuck, with MPN 534388, is designed for precision toolholding. This product holds ER25 collets, allowing it to secure tools efficiently for various machining tasks. It features a projection of one point eight five inches and provides a minimum holding diameter of zero point zero three nine inches, while accommodating a maximum holding diameter of zero point six two nine inches.

• Projection: 1.8500 inches
• ER Size: ER25
• Shank Diameter: 1.0000 inches

Product Highlights

This collet chuck is a reliable choice for machinists, ensuring tools are held firmly during operation. Its design supports versatility in various applications where precise tool retention is critical.

Product Information

Standard Information

• Brand: GS
• Part Number: GS-534-388

Technical Specifications

• ER Size: ER25
• Projection: 1.8500 inches
• Min. Holding Diameter: 0.0390 inches
• Max. Holding Diameter: 0.6290 inches
• Shank Diameter: 1.0000 inches
• Shank Length: 5.0000 inches
• Has Flat: No
