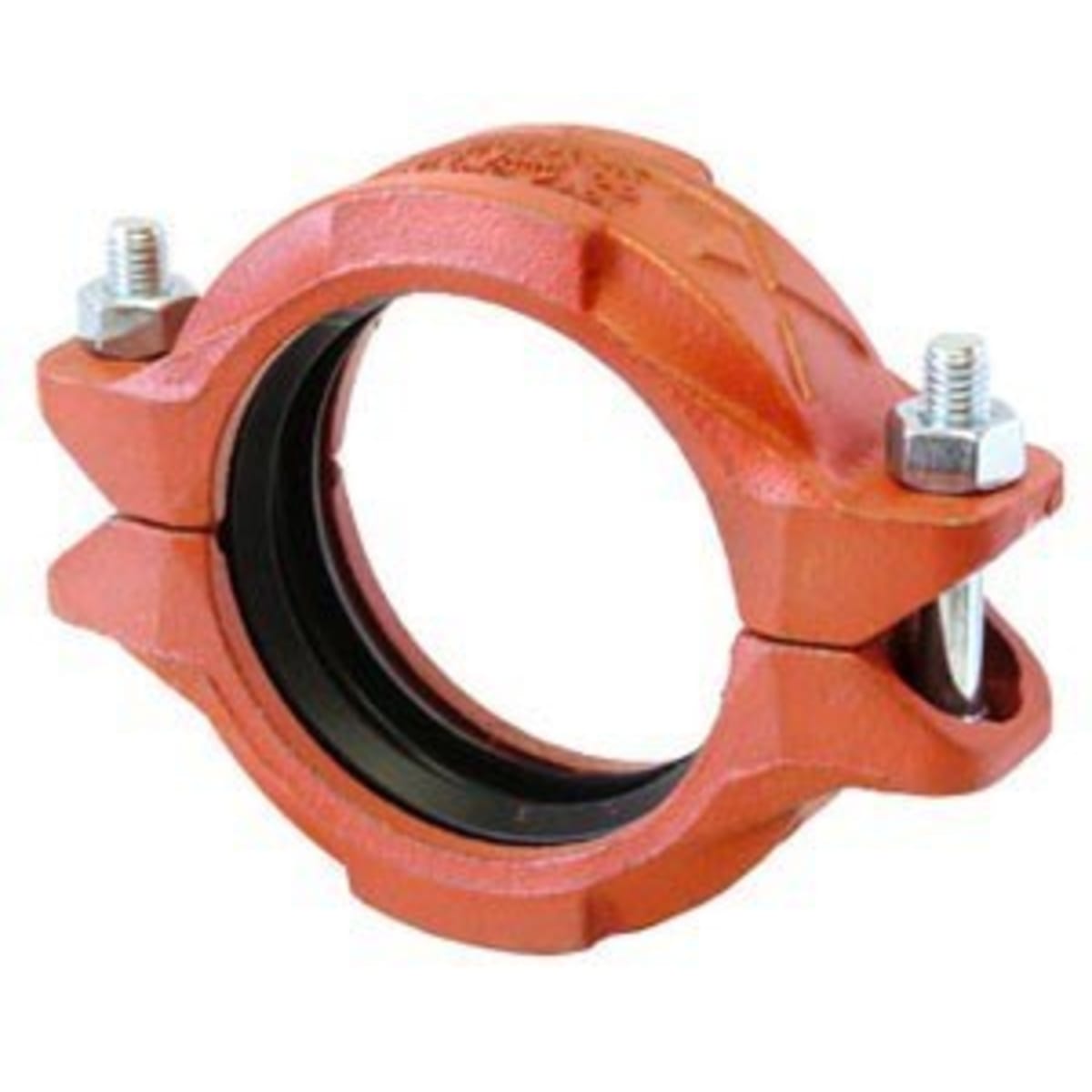

Gruvlok GVLF-7401-1000-EP-PNTD 10 Coupling RigidLok Painted GR x GR (EPDM (Green & Red))

Product Description

The Gruvlok GVLF-7401-1000-EP-PNTD is a ten-inch RigidLok coupling designed for reliable connections in various applications. This coupling is built with advanced housing technology that securely grips the pipe to maintain a rigid joint. Installation is straightforward; loosen one nut, swing the housing over the gasket, and fit it into the grooves. The Guidelok feature simplifies positioning by automatically separating the grooved pipe ends as the bolts are tightened. This coupling is compatible with roll grooved or cut grooved pipes and accommodates grooved-end fittings and valves. It supports a maximum working pressure of seven hundred fifty psi (fifty-one point seven bar) for standard wall rolls or cut grooved pipes. This product adheres to ASME B31 standards for pipe hanging practices.

• Designed for quick and easy installation
• Guidelok feature for simplified positioning
• Can handle a maximum pressure of 750 psi

Product Highlights

Product Information

Standard Information

• Brand: Gruvlok
• Part Number: GVLF-7401-1000-EP-PNTD

Technical Specifications

• Size: 10 inches
• Type: Coupling (RigidLok)
• Material: Painted
• Gasket Type: EPDM (Green & Red)
• Connection Type: GR x GR
• Maximum Working Pressure: 750 psi
