Gruvlok GVLF-74-800-EP-PNTD 8 SlideLok Coupling Painted GR x GR

Product Description

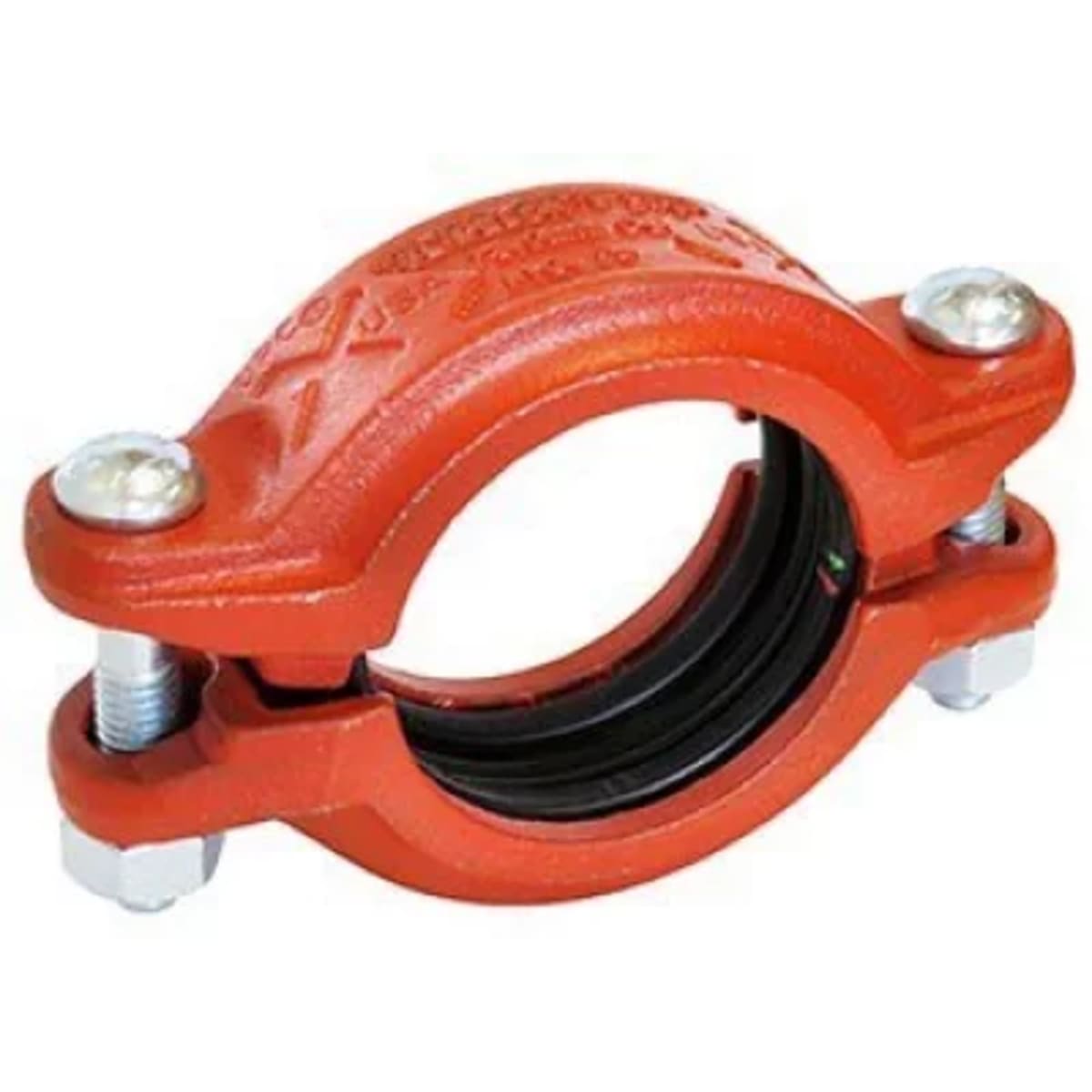

The Gruvlok GVLF-74-800-EP-PNTD is an eight-inch SlideLok coupling made from painted material. This coupling simplifies installation time with its unique slide action design. It is compatible with roll groove or cut groove steel pipe and can accommodate grooved light wall pipe, Gruvlok grooved-end fittings, and valves.

• Designed for quick assembly and reduced installation time.
• Patented gasket with four sealing surfaces for reliability.
• Maximum working pressure of 750 psi.

Product Highlights

The SlideLok coupling supports rigid pipe hanging practices in accordance with ASME B31 Pipe Codes, making it ideal for various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: Gruvlok
• Type: SlideLok Coupling

Technical Specifications

• Size: 8 inches
• Material: Painted
• Gasket Type: EPDM (Green & Red)
• Connection Type: GR x GR
• Maximum Working Pressure: 750 psi
• Compatibility: Roll groove or cut groove steel pipe, grooved light wall pipe
• Product ID: d7402870-7335-4f90-9a72-b026011b304a
• Part Number: GVLF-74-800-EP-PNTD
