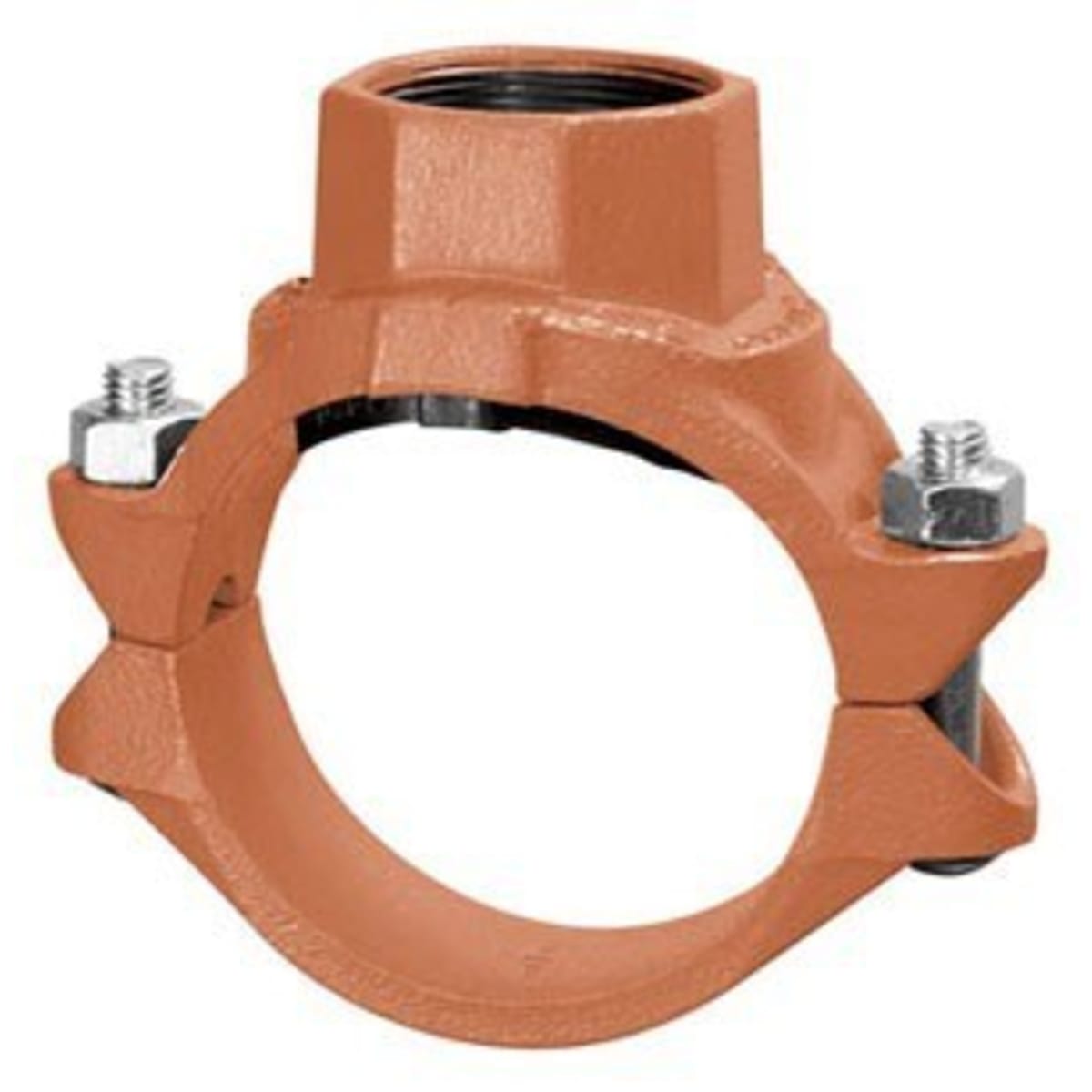

Gruvlok GVLF-7045-600.125-E-PNTD 6 x 1-1/4 Tee Branch (Threaded) - Painted - GR x FIP (EPDM (Green))

Product Description

The Gruvlok GVLF-7045-600.125-E-PNTD is a threaded tee branch made from painted material designed for GR x FIP connections. It provides an efficient way to create a branch or cross connection in pipes. The design allows for quick installation by drilling or cutting into the pipe for the locating collar. The smooth outlet ensures optimal flow characteristics, and a specially engineered housing conforms to the pipe's outer diameter for a reliable seal in varying pressure conditions.

• Maximum working pressure of five hundred PSI.
• Compatible with light wall and standard wall steel pipe.
• Available in multiple sizes and end configurations.

Product Highlights

The Gruvlok Tee Branch enables various piping design applications. It is suitable for both positive pressure and vacuum conditions, ensuring durability and functionality in multiple settings.

Product Information

Standard Information

• Brand: Gruvlok
• Part Number: GVLF-7045-600.125-E-PNTD

Technical Specifications

• Size: 6 x 1-1/4
• Type: Tee Branch (Threaded)
• Material: Painted
• Gasket Type: EPDM (Green)
• Connection Type: GR x FPT
• Maximum Pressure: 500 PSI
• End Configurations: Thd x Thd and Gr. x Thd available
