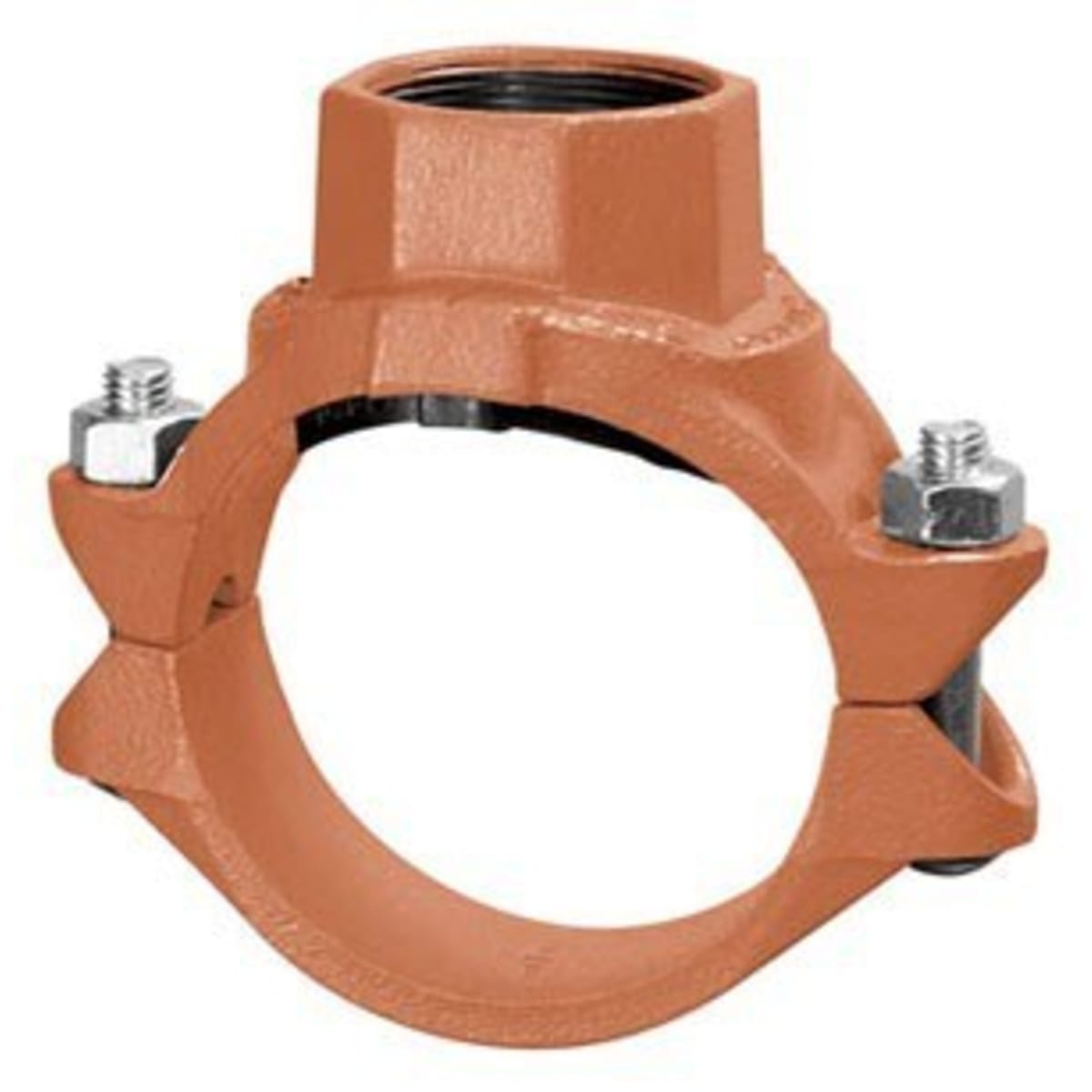

Gruvlok GVLF-7045-400.200-E-PNTD 4 x 2 Tee Branch (Threaded) GR x FIP (EPDM (Green))

Product Description

The Gruvlok GVLF-7045-400.200-E-PNTD is a tee branch designed for steel pipes. This fitting allows for a quick and easy outlet at any point along the pipe. It requires a hole to be drilled or cut in the pipe to fit the locating collar of the Clamp-T, providing optimal flow performance.

• Max working pressure of 500 PSI
• Available with NPT or ISO 7/1 connections
• Compatible with light and standard wall steel pipes

Product Highlights

The specially engineered housing of the Clamp-T conforms to the pipe's outer diameter, ensuring a reliable leak-tight seal under both positive pressure and vacuum conditions.

Product Information

Standard Information

• Brand: Gruvlok
• Part Number: GVLF-7045-400.200-E-PNTD
• Material: Painted
• Connection Type: GR x FPT
• Gasket Type: EPDM (Green)
• Size: 4 x 2
• Type: Tee Branch (Threaded)

Technical Specifications

• Max Working Pressure: 500 PSI
• Sizes Available: 2 x 1/2 through 8 x 4 1/2
• Available Configurations: Thd x Thd and Gr. x Thd
