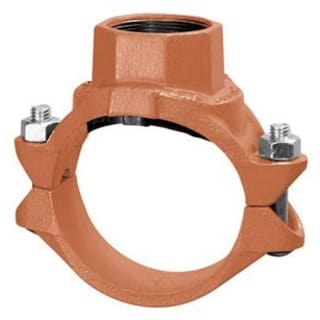

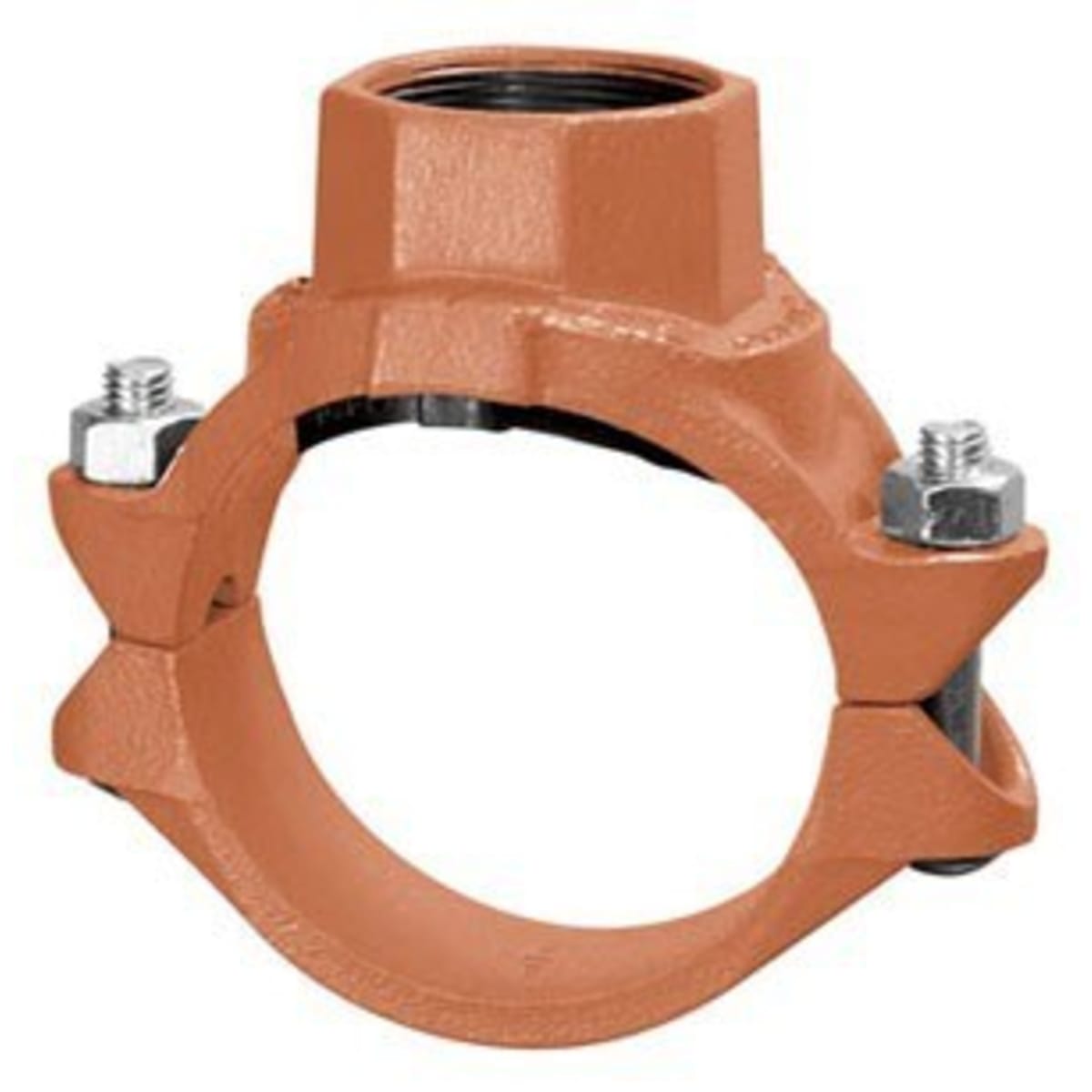

Gruvlok GVLF-7045-400.075-E-PNTD 4 x 3/4 Tee Branch (Threaded) - GR x FIP (EPDM (Green))

Product Description

The Gruvlok GVLF-7045-400.075-E-PNTD is a tee branch fitting designed for efficient pipe connections. It provides a reliable outlet at any point along the pipe when installed correctly. By cutting a hole in the pipe for the locating collar, this fitting creates an optimal flow path with minimal turbulence.

• Maximum working pressure: 500 PSI.
• Available with female pipe thread or grooved-end branch connections.
• Compatible with light wall and standard wall steel pipes.

Product Highlights

The Gruvlok Clamp-T offers versatility in piping systems while ensuring durable seals for both pressure and vacuum applications.

Product Information

Standard Information

• Brand: Gruvlok
• Part Number: GVLF-7045-400.075-E-PNTD

Technical Specifications

• Size: 4 x 3/4
• Type: Tee Branch (Threaded)
• Material: Painted
• Gasket Type: EPDM (Green)
• Connection Type: GR x FPT
• Maximum Working Pressure: 500 PSI
• Available Sizes: 2 x 1/2 through 8 x 4 1/2
• Installation Requirements: Hole for locating collar
