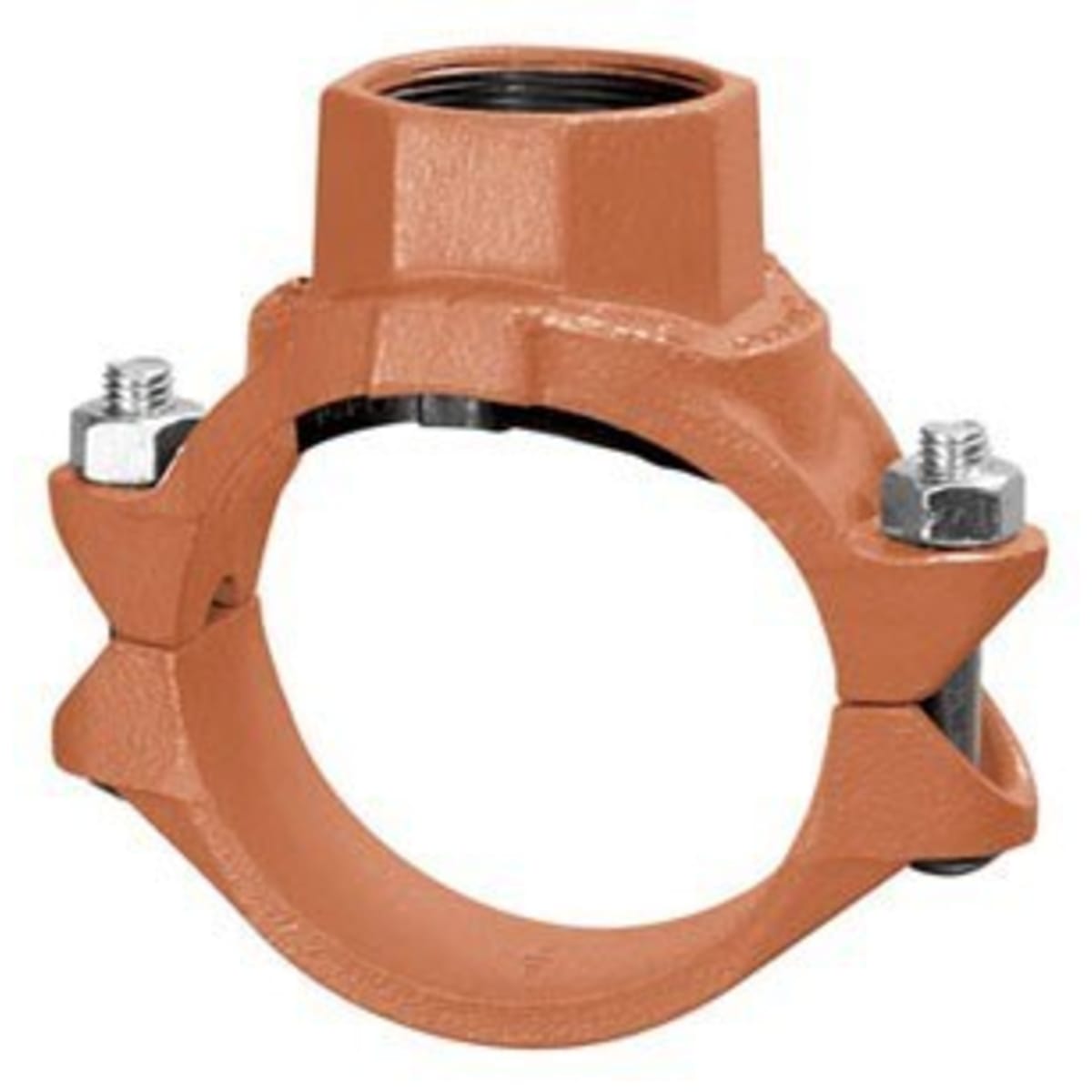

Gruvlok GVLF-7045-250.125-E-PNTD 2-1/2 x 1-1/4 Tee Branch (Threaded) - Painted - GR x FIP

Product Description

The Gruvlok GVLF-7045-250.125-E-PNTD is a tee branch fitting designed for quick and reliable pipe connections. It allows an outlet at any location along the pipe with minimal installation effort. A simple hole drilled into the pipe receives the locating collar of the Clamp-T. The smooth outlet ensures optimal flow and performance.

• Compatible with light wall or standard wall steel pipes
• Maximum working pressure is 500 PSI (34.5 bar)
• Available with NPT or ISO 7/1 female pipe thread connection

Product Highlights

This tee branch provides flexibility for piping design with various size options, ensuring a secure and leak-tight seal in both positive and vacuum conditions.

Product Information

Standard Information

• Brand: Gruvlok
• Part #: GVLF-7045-250.125-E-PNTD

Technical Specifications

• Size: 2-1/2 x 1-1/4
• Type: Tee Branch (Threaded)
• Material: Painted
• Gasket Type: EPDM (Green)
• Connection Type: GR x FPT
