Gruvlok GVLF-7045-250.100-E-PNTD 2-1/2 x 1 Tee Branch (Threaded) - Painted - GR x FIP

Product Description

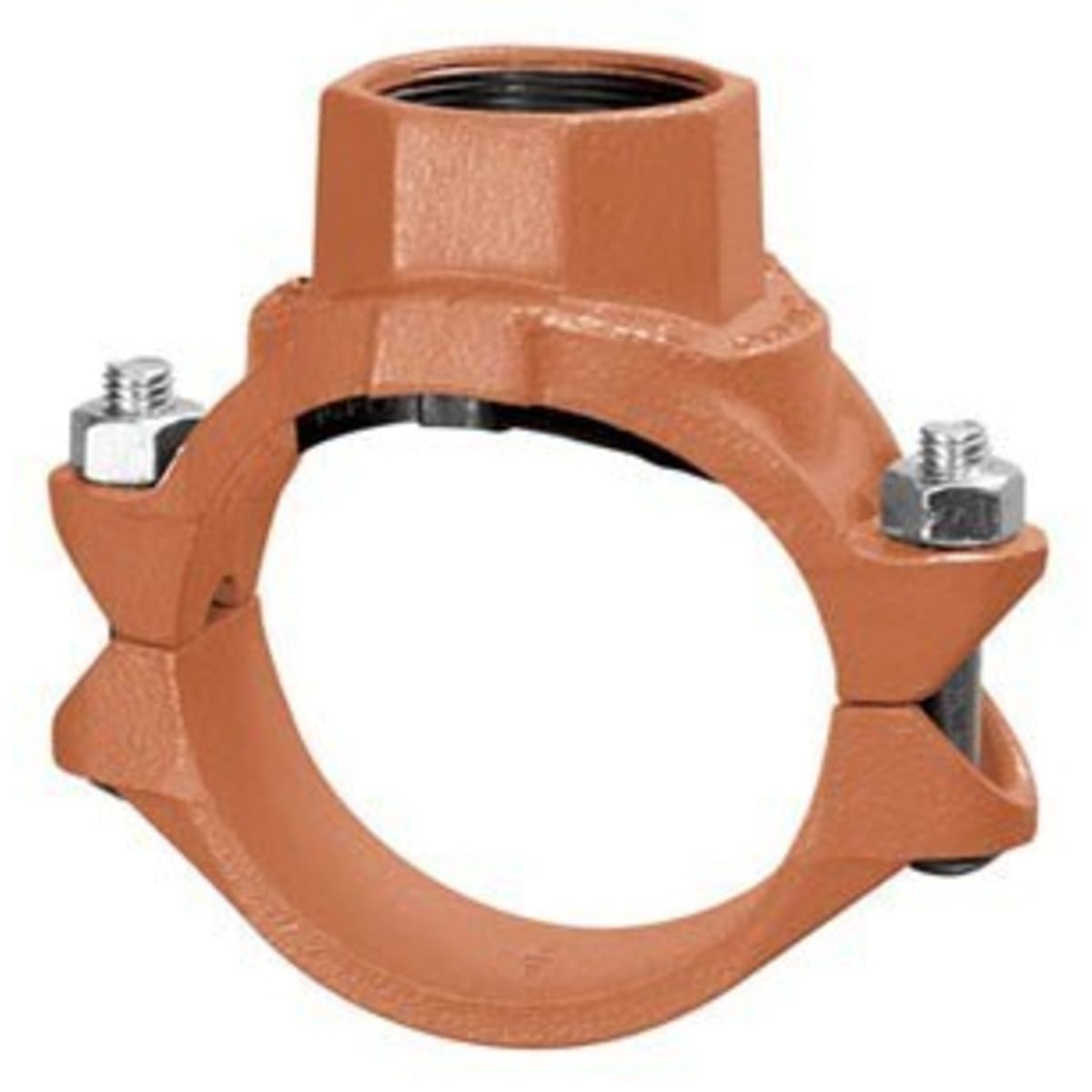

The Gruvlok GVLF-7045-250.100-E-PNTD is a tee branch fitting designed for quick and easy installation along a pipe. It requires a simple hole to be cut in the pipe to facilitate its attachment. The fitting ensures optimal flow with its smooth outlet area. This product conforms well to the pipe's outer diameter and comes with a reliable gasket that maintains a leak-tight seal under pressure or vacuum conditions. The maximum working pressure for this product is five hundred PSI.

• Compatible with light wall and standard wall steel pipes.
• Includes options for NPT or ISO connections.
• Available in various sizes for versatile design applications.

Product Highlights

This tee branch provides a dependable branch or cross-connection in piping systems.

Product Information

Standard Information

• Brand: Gruvlok
• Part Number: GVLF-7045-250.100-E-PNTD

Technical Specifications

• Size: 2-1/2 x 1 inches
• Type: Tee Branch (Threaded)
• Material: Painted
• Gasket Type: EPDM (Green)
• Connection Type: GR x FPT
• Maximum Working Pressure: 500 PSI
• Available Sizes: 2 x 1/2 through 8 x 4 1/2 inches
