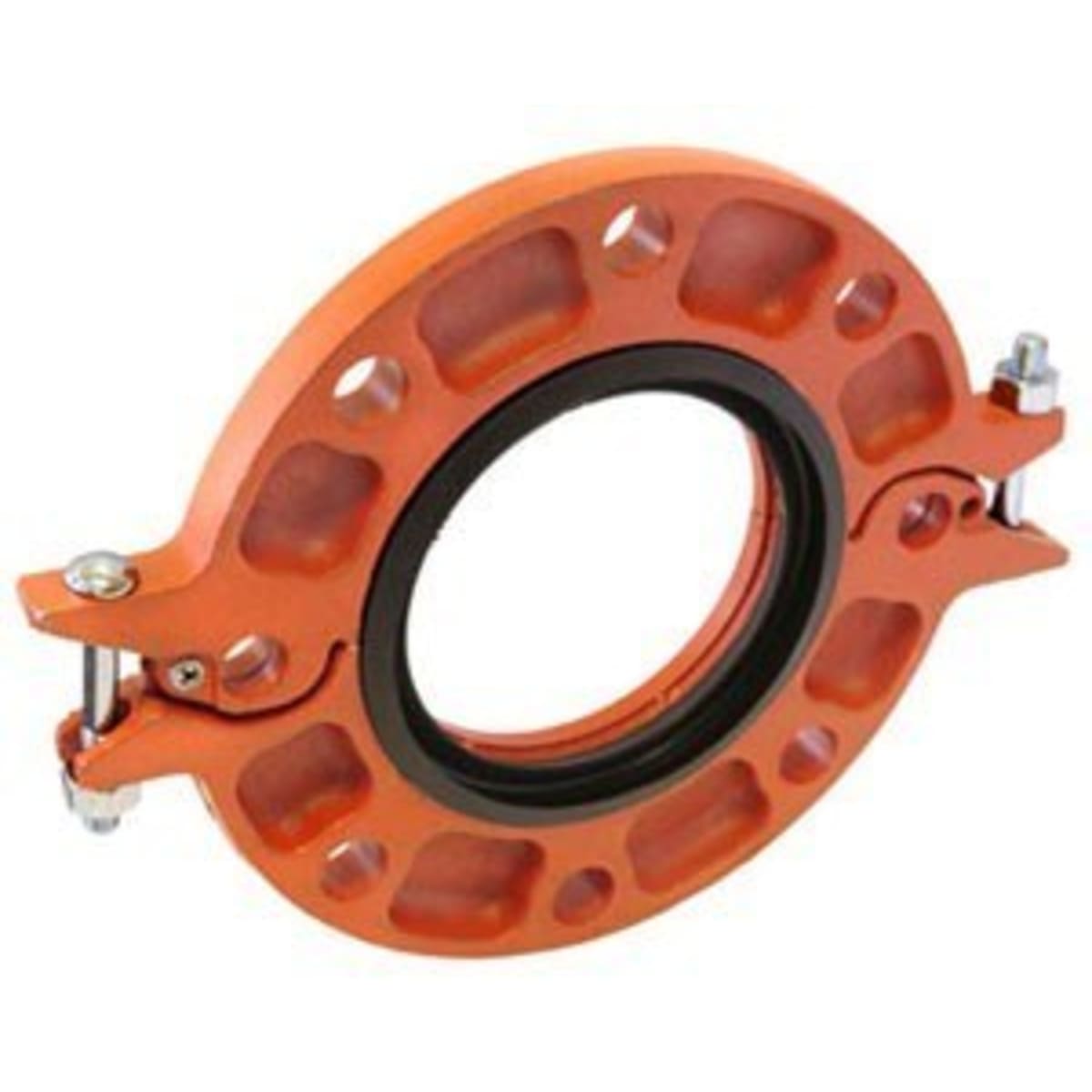

Gruvlok GVLF-7012-400-E-PNTD 4 Flange - Painted - (EPDM (Green))

Product Description

The Gruvlok Fig. 7012 Flange, with MPN GVLF-7012-400-E-PNTD, connects Class 125 or Class 150 flanged components to a grooved piping system. The design features two interlocking halves that simplify handling. A latch bolt securely draws the flanges together for easy assembly.

• Precision machined bolt holes ensure proper alignment.
• Leak-tight seal provided by a specialized gasket.
• Constructed from painted material for durability.

Product Highlights

This flange offers a secure, rigid connection with anti-rotation tines that grip pipe grooves. Ideal for various installation scenarios, the Gruvlok Fig. 7012 Flange also requires an adapter insert when joining rubber-faced surfaces or irregular sealing areas.

Product Information

Standard Information

• Brand: Gruvlok
• MPN: GVLF-7012-400-E-PNTD

Technical Specifications

• Size: 4
• Type: Flange Adapter
• Material: Painted
• Gasket Type: EPDM (Green)
• Connection Type: GR x Flange
