Gruvlok GVLF-7012-300-E-PNTD 3 Flange - Painted - (EPDM (Green))

Product Description

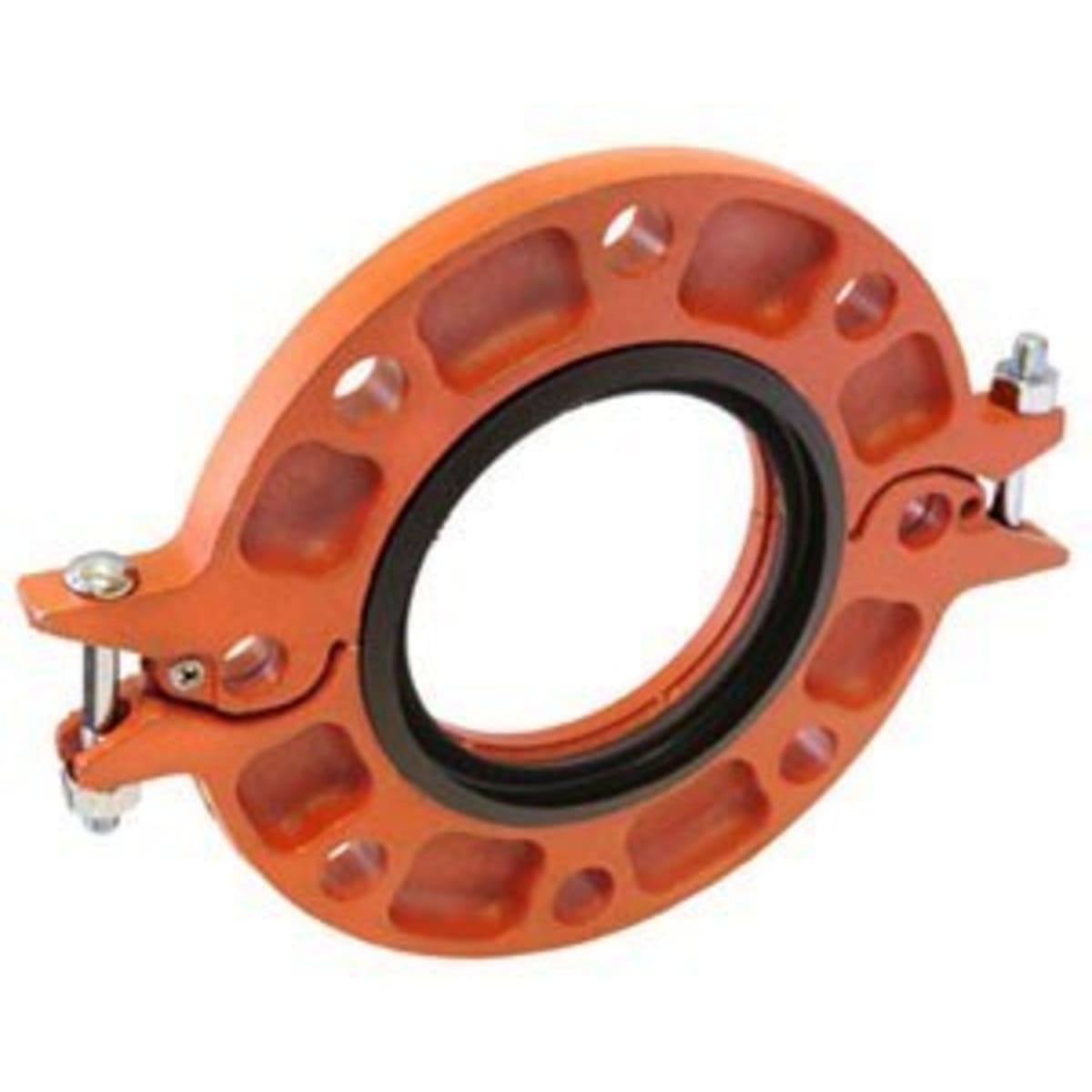

The Gruvlok Fig. 7012 Flange allows a direct connection of Class 125 or Class 150 flanged components to a grooved piping system. This product features two interlocking halves that are hinged for easy handling and are secured with a latch bolt for simple assembly onto the pipe. The flange ensures a reliable fit due to precision machined bolt holes and surfaces, providing conformity with various pipe system equipment.

• Flange connects Class 125 or Class 150 components.
• Hinged design for ease of installation.
• Includes a leak-tight seal with specially designed gaskets.

Product Highlights

This flange is ideal for quick and effective connections in both commercial and residential piping applications.

Product Information

Standard Information

• Brand: Gruvlok
• MPN: GVLF-7012-300-E-PNTD

Technical Specifications

• Size: 3 inches
• Type: Flange Adapter
• Material: Painted
• Gasket Type: EPDM (Green)
• Connection Type: GR x Flange
