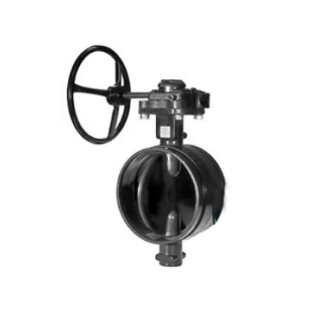

GRUVLOK 7005011910 6 in 7700 Butterfly Valve With Gear Operator & E-Gasket

Product Description

The GRUVLOK 7005011910 is a six inch 7700 Butterfly Valve designed with a gear operator and E-Gasket. It features a spherical bore that maintains consistent pressure on the disc without fail. This design ensures a reliable seal under various conditions, providing performance from full vacuum to three hundred psi. The valve is suitable for dead-end service up to its full pressure rating.

• Spherical bore design promotes consistent DISC-TO-SEAT loading.
• Leak-tight seal maintains integrity regardless of disc position.
• Meets standards for aggressive environments such as acid and water applications.

Product Highlights

The valve uses durable ductile iron construction, making it reliable and long-lasting in demanding conditions.

Product Information

Standard Information

• Body Material: Ductile Iron conforming to ASTM A 536, Grade 65-45-12
• Disc Material: Ductile Iron conforming to ASTM A 536 Grade 65-45-12

Technical Specifications

• Disc Encapsulation: Properties as per ASTM D 2000
• Shaft Material: Type 416 Stainless Steel
• O-Rings: Compatible with disc coating
• Coating: Epoxy
• End Connections: Grooved
• Height: twelve and forty-seven fifty inches
• Length: five and thirteen sixteenths inches
• Pressure Class: 300#
• Recommended Applications: Acid, Oil-Free Air, Water
