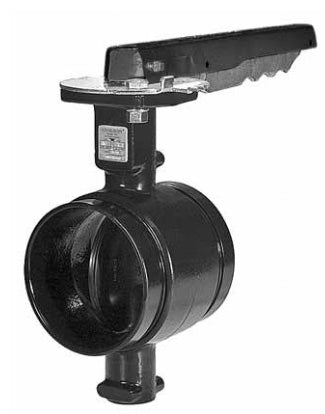

Gruvlok 7005011817 8 7721 10 Position L/Lock Butterfly Valve

Product Description

The Gruvlok 7005011817 8 7721 10 Position L/Lock Butterfly Valve is designed for use in commercial grooved-end piping systems from two to twelve inches. This valve features a unique spherical bore in the disc seat area. This design ensures consistent disc-to-seat loading, achieving a leak-tight stem seal regardless of the disc's position. The stem sealing force remains constant throughout the disc cycle, contributing to lower operating torques and extended valve life.

• Rated for a maximum pressure of three hundred psi.
• Provides a bubble-tight seal from full vacuum to three hundred psi.
• Includes an option for a silicone-free design upon request.

Product Highlights

This butterfly valve is suitable for dead-end service and ensures durability and effective sealing in various applications.

Product Information

Standard Information

• Brand: Gruvlok
• MPN: 7005011817

Technical Specifications

• Size: 8 inches
• Material: Ductile Iron
• Weight: 41.9 pounds
• Handle Style: Lever
• Product Type: Butterfly Valve
• Connection Type: Grooved
• Max Pressure: 300 psi
• Shipping Dimensions: 21.1 inches (Depth) x 16.75 inches (Width) x 9 inches (Height)
