GRUVLOK 0763000759 FIG GBV-G Straight Circuit Balancing Valve

Product Description

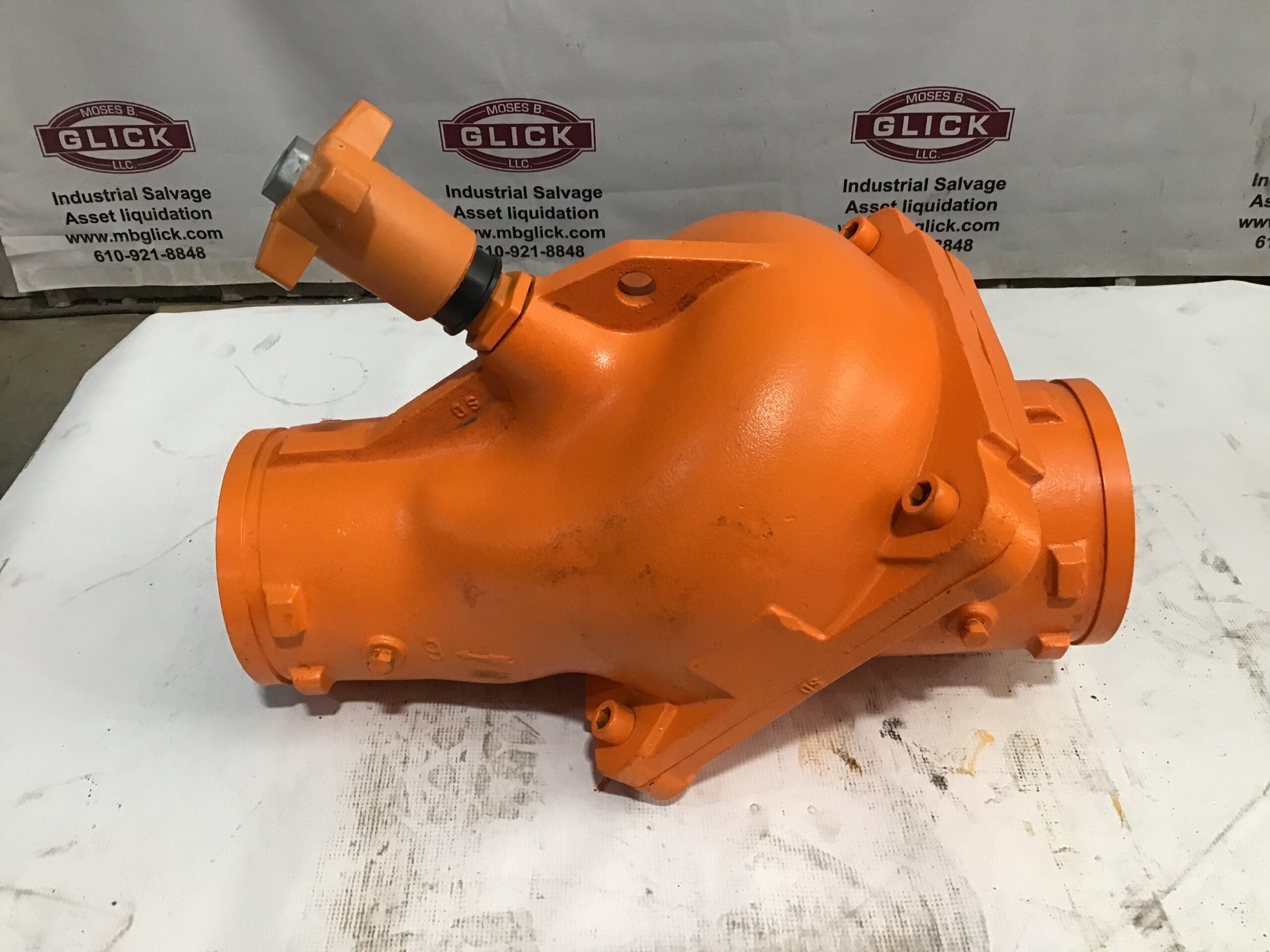

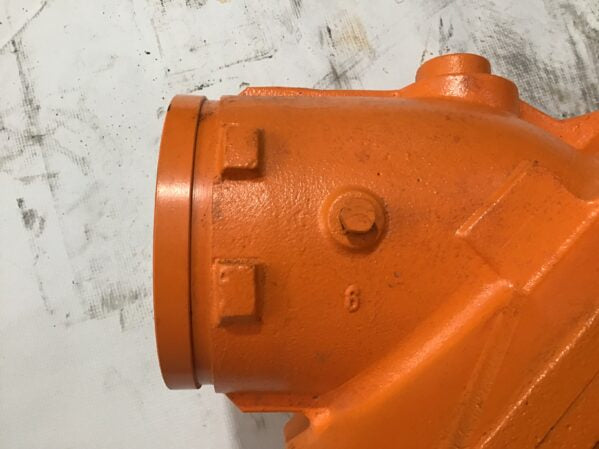

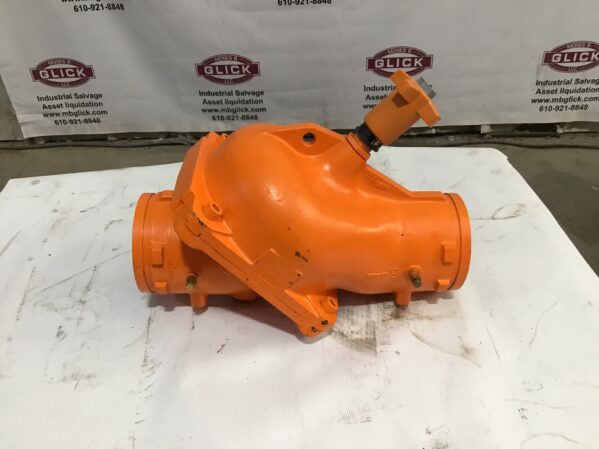

The GRUVLOK 0763000759 is a FIG GBV-G straight circuit balancing valve. Constructed with a ductile iron body and Brass Alloy B16 trim, this valve features grooved connections with a nominal inlet and outlet diameter of six inches. It is built for a working pressure of 300 psi and can handle temperatures up to 230 degrees Fahrenheit. The valve has a hand wheel actuator and includes pressure differential ports on both sides for optimal performance. Its convertible design enables quick adjustment from a straight position to a 90-degree angle via a set screw. The valve also provides a positive shutoff for maintenance services, multi-turn adjustment, and a micrometer-type adjustment scale. The outer diameter measures six and five-eighths inches, and its length is twenty and eleven-sixteenths inches.

• Features pressure differential ports on both sides of the valve.
• Convertible from straight to 90-degree angle via set screw adjustment.
• Includes a tamper-proof hidden memory stop.

Product Highlights

This valve is designed for effective circuit balancing in HVAC and plumbing systems, ensuring optimal flow and efficiency.

Product Information

Standard Information

• Brand: Gruvlok
• MPN: 0763000759

Technical Specifications

• Inlet Diameter: 6 inches
• Outlet Diameter: 6 inches
• Body Material: Ductile Iron
• Series: FIG GBV-G
• Connection: Grooved
• Working Pressure: 300 psi
• Temperature: 230 deg F
• Actuator: Hand Wheel
• Trim: Brass Alloy B16
• Outer Diameter: 6-5/8 inches
• Length: 20-11/16 inches
