GRUVLOK 0390210268 GRUVLOK 390210268 - 10 Grooved Hinged Flange Adapter

Product Description

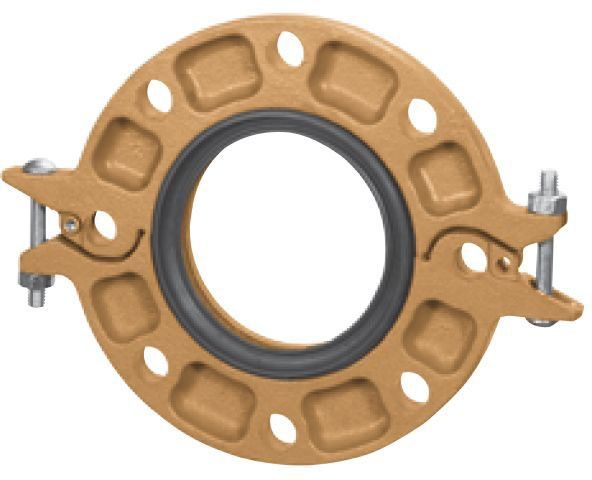

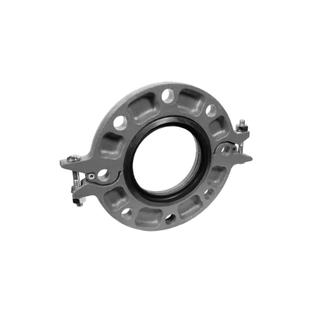

The GRUVLOK 390210268 is a ten-inch hinged flange adapter designed to connect Class 125 or Class 150 flanged components to grooved piping systems. This product is made from ductile iron, complying with ASTM A536 Grade 65-45-12. The galvanized finish enhances its durability, and it is suitable for schedule 40 S piping systems.

• Designed for secure connections with anti-rotation tines.
• Includes an EPDM gasket for effective sealing.
• Rated for pressures up to Class 125/150, 300 PSI.

Product Highlights

This hinged flange adapter simplifies installation with its latch bolt and precise machining.

Product Information

Standard Information

• Brand: GRUVLOK
• Material: Ductile Iron

Technical Specifications

• MPN: 0390210268
• Finish: Galvanized
• Nominal Pipe Size: 10 inches
• Pressure Rating: Class 125/150, 300 PSI
• Temperature Rating: -40 to 230 degrees Fahrenheit
• Flange Outside Diameter: 10.75 inches
• Depth: 1.25 inches
• Applicable Standards: ANSI/ASME B16.5, ANSI/NSF 61, FM, LPCB, UPC, UL
