GRUVLOK 0390202166 Fig. 7788 Grooved Flange Adapter 12 in Class 150

Product Description

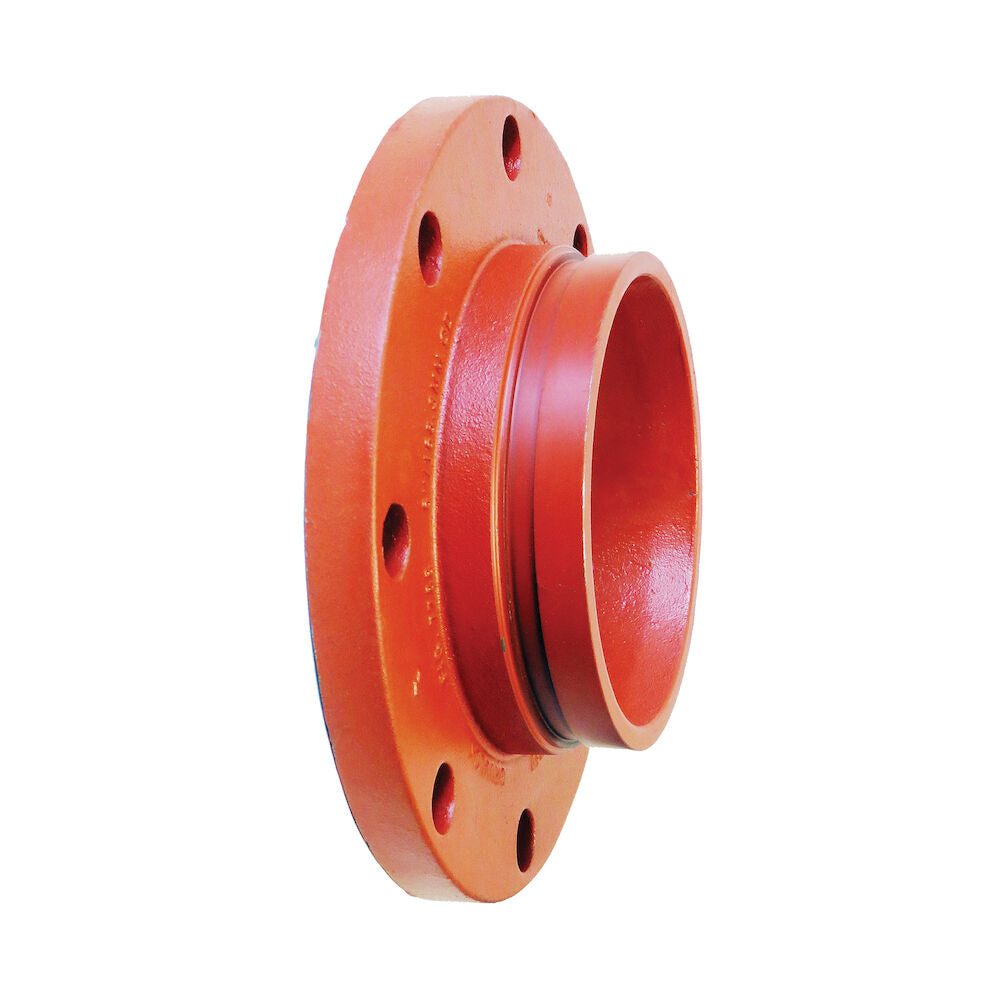

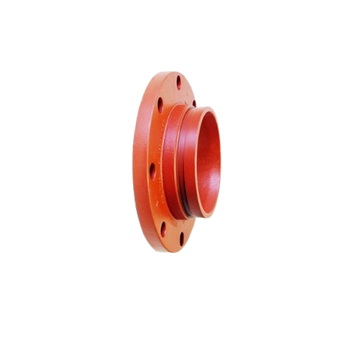

The GRUVLOK Fig. 7788 Grooved Flange Adapter is designed to connect Class 125 or Class 150 flanged components to grooved piping systems. This adapter serves as an alternative to the Fig. 7012 Gruvlok flange connection. It includes a raised serrated face for a secure attachment. The adapter has a nominal size of twelve inches, an outside diameter of twelve and three-quarters inches, and a thickness of one and thirteen sixty-fourths inches.

• Connects Class 125 or Class 150 flanged components to grooved piping systems.
• Provides a raised serrated face flange connection.
• Features a grooved x flange end style.

Product Highlights

This adapter is built from ductile iron and has a rust-inhibiting orange painted finish for durability. It supports a pressure rating of three hundred psi, making it suitable for robust applications.

Product Information

Standard Information

• Manufacturer: Anvil International
• Material: Ductile Iron

Technical Specifications

• Nominal Size: 12 inches
• Outside Diameter: 12-3/4 inches
• Thickness: 1-13/64 inches
• Pressure Rating: 300 psi
• Bolt Circle Diameter: 17 inches
• Bolt Size: 7/8 x 3-3/4 inches
• Number of Bolts: 12
• End Style: Grooved x Flange
