GRUVLOK 0390201317 E Gasket Flange 14 Inch 7012

Product Description

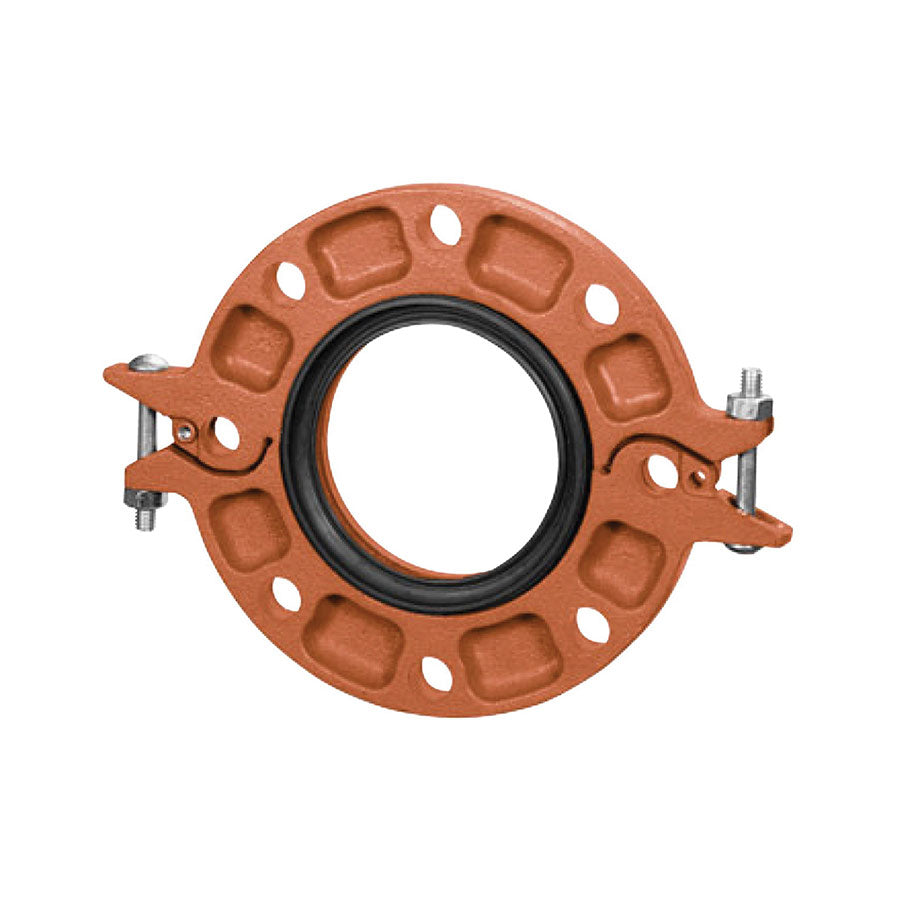

The GRUVLOK 0390201317 is a fourteen-inch E gasket flange that connects Class 125 or Class 150 flanged components to grooved piping systems. This flange is constructed in four segments for sizes fourteen through twenty-four. It has anti-rotation tines that effectively grip pipe grooves. A specially designed gasket ensures a strong seal on both the pipe and the mating flange face. For optimal performance on rubber faced surfaces, wafer or lug design valves, and serrated or irregular sealing surfaces, a steel adapter insert must be used.

• Connects flanged components to grooved piping systems.
• Includes precision machined bolt holes and mating surfaces.
• Designed with anti-rotation tines for a secure fit.

Product Highlights

This flange is ideal for creating a reliable connection in plumbing and HVAC systems.

Product Information

Standard Information

• Item: Flange
• Type: Flange

Technical Specifications

• Style: Grooved
• Nominal Size: 14 inches
• Housing Material: Ductile Iron conforming to ASTM A 536, Grade 65-45-12
• Coatings: Orange Rust Inhibiting Paint
• Gasket Material: Grade E EPDM
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 230 °F
• Max. Working Pressure: 300 psi
• Max. End Load: 46181 lb
• Product Number: 0390201317
• Figure Number: 7012
• Regulatory: ASTM A 536, Grade 65-45-12; ASTM A563, Grade A; cULus Listed; FM Approved; LPCB; NSF/ANSI CAN 61 Drinking Water; IAPMO UPC
• Source: Domestic
• Product Type: Flange Adapter
