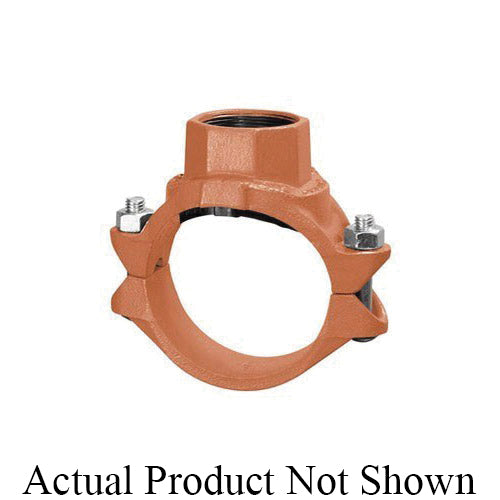

Gruvlok 0390171726 FIG 7045 Clamp-T Branch Outlet

Product Description

The Gruvlok® FIG 7045 Clamp-T Branch Outlet, part number 0390171726, allows easy creation of outlets anywhere along the pipeline. Installation requires only a hole in the pipe for the Clamp-T’s locating collar. This design ensures a smooth outlet area for efficient flow. The housing is crafted to fit the pipe's outer diameter precisely, guaranteeing a reliable seal under both positive and vacuum pressure.

• Enables branch or cross connections in piping systems.
• Maximum working pressure of 500 psi (34.5 bar).
• NPT or ISO 7/1 connection options available.

Product Highlights

Constructed from durable ductile iron, the Clamp-T is finished with rust-inhibiting paint for added protection. It features a nominal size of eight x two and one-half inches and a female NPT connection, making it suitable for various domestic applications.

Product Information

Standard Information

• Manufacturer: Gruvlok®
• Part Number: 0390171726

Technical Specifications

• Nominal Size: 8 x 2-1/2 inches
• Connection Type: FNPT
• Clamp Material: Ductile Iron
• Finish: Rust Inhibiting Painted
• Maximum Pressure Rating: 500 psi
• Temperature Rating: -40 to 230 degrees Fahrenheit
• Gasket Material: Grade E EPDM
• Dimensions: 12-3/4 inches W x 4-3/8 inches THK
