Gruvlok 0390171494 (Ns) 6 x 1-1/2 Gruvlok 7045 Mech Tee Fpt

Product Description

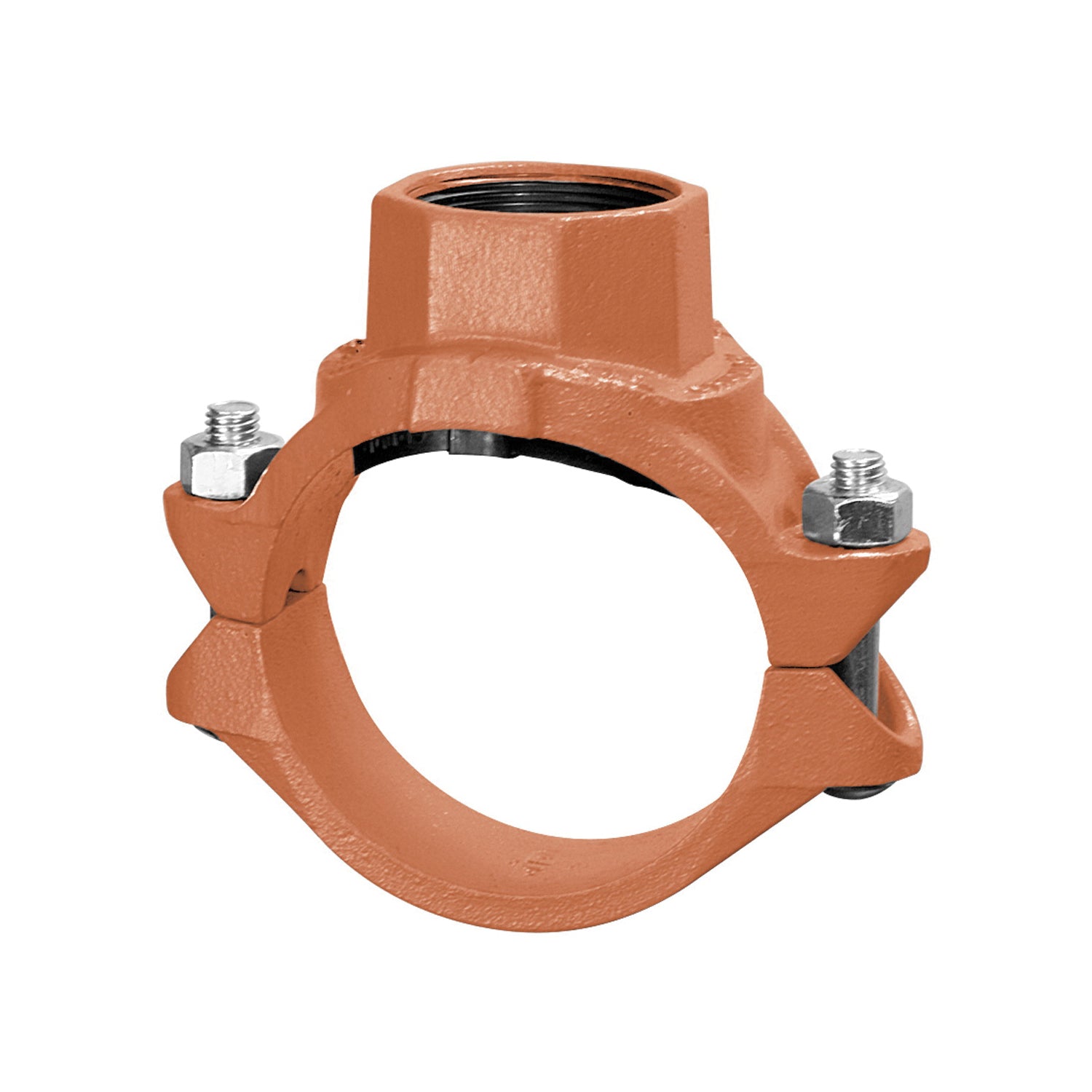

The GRUVLOK 0390171494 FIG 7045 Clamp-T Branch Outlet, with 6 x 1-1/2 in Nominal and FNPT Connection. Iron outlet pipe clamps have grooves and fit around pipe lengths, similar to a saddle. These fittings have ends that connect to tubing or pipe with a clamp.

• Maintains a leaktight seal under both positive and negative pressure conditions.
• Connects to tubing or pipe with a clamp.
• Painted A536 65-45-12 Ductile Iron

Product Highlights

The Gruvlok clamp tee is suitable for air, gases, non-potable water, and oils. It adheres to ASTM A536 standards.

Product Information

Standard Information

• Brand: GRUVLOK
• Manufacturer Part Number: 0390171494
• Country of Origin: USA (subject to change)

Technical Specifications

• Brand: GRUVLOK
• Series: 7045
• Fitting Shape: Clamp, Tee
• Connector Type: Coupling
• Material: Painted A536 65-45-12 Ductile Iron
• For Pipe Schedule: Schedule 40
• Maximum Operating Pressure: 300 psi
• Fitting Side A: 6 in NPT, Grooved
• Fitting Side B: 6 in Grooved
• Side 2 Thread Size: 1.5
• Fitting Side C: 1-1/2 in Female, Threaded
• Overall Length: 10-1/8 in
• Seal Material: EPDM
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: Yes
• For Media Type: Air; Gases; Non-Potable Water; Oils
• Standards: ASTM A536
• MPN: 0390171494
• Connection: FNPT
• Nominal Size: 6 x 1-1/2 in
