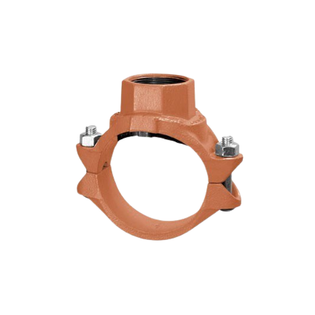

GRUVLOK 0390171379 Clamp-T 5 x 1-1/2 in Grooved with FPT Branch

Product Description

The GRUVLOK 0390171379 Clamp-T provides a versatile outlet for branch or cross connections along the pipe. This model suits both light and standard wall steel pipe applications. The clamp's housing matches the pipe's outer diameter for a secure fit. Its gasket ensures a watertight seal under both positive pressure and vacuum conditions. With nominal dimensions of five inches by one and one-half inches, this clamp includes a female National Pipe Thread (FNPT) connection. It is crafted from ductile iron with a rust-inhibiting painted finish, ensuring durability and longevity. When installed on standard wall steel pipe, the clamp supports a maximum working pressure of five hundred PSI (thirty-four point five bar).

• Facilitates branch connections at any point along the pipe.
• Constructed from ductile iron with rust-inhibiting paint.
• Supports a maximum working pressure of 500 PSI with standard wall steel pipe.

Product Highlights

The clamp is essential for effective plumbing and industrial pipe installations, providing reliable connections to meet various system needs.

Product Information

Standard Information

• Brand: GRUVLOK
• MPN: 0390171379

Technical Specifications

• Nominal Size: 5 x 1-1/2 in
• Connection: FNPT
• Clamp Material: Ductile Iron
• Finish: Rust Inhibiting Painted
• Origin: Domestic
