Gruvlok 0390171320 4 inches x 3 inches Tee Branch (Threaded)

Product Description

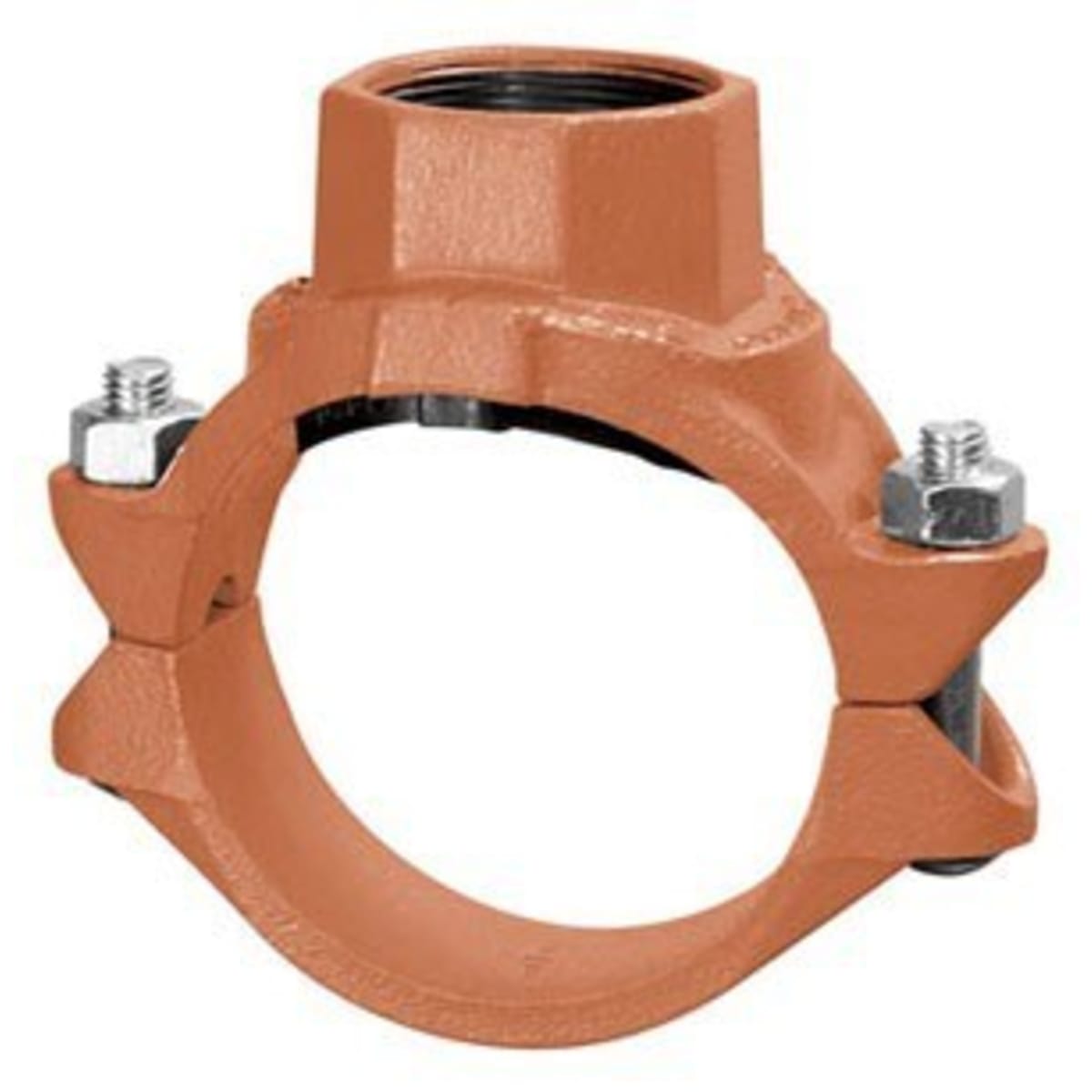

The GRUVLOK 0390171320 Clamp-T provides a quick and easy outlet at any location along the pipe. A hole drilled or cut in the pipe to receive the locating collar of the Clamp-T is all that is required. The full, smooth outlet area provides for optimum flow characteristics. It has a 4" pipe and 3" FPT branch outlet with a maximum working pressure of 500 PSI.

• Provides a quick and easy outlet at any location along the pipe.
• Full, smooth outlet area provides for optimum flow characteristics.
• Specially engineered housing to conform to the pipe O.D.

Product Highlights

The Gruvlok Clamp-T housing is specially engineered to conform to the pipe O.D. and the Clamp-T gasket providing a leak tight reliable seal in both positive pressure and vacuum conditions.

Product Information

Standard Information

• Brand: GRUVLOK
• Manufacturer Part Number: 0390171320
• Country of Origin: Domestic

Technical Specifications

• Fitting Material: Ductile Iron
• Fitting Size: 4 in X 3 in
• Connection: FNPT
• Nominal Size: 4 x 3 in
• Maximum Working Pressure: 500 PSI
