Gruvlok 0390126548 4 inches Gal #7069 Lateral

Product Description

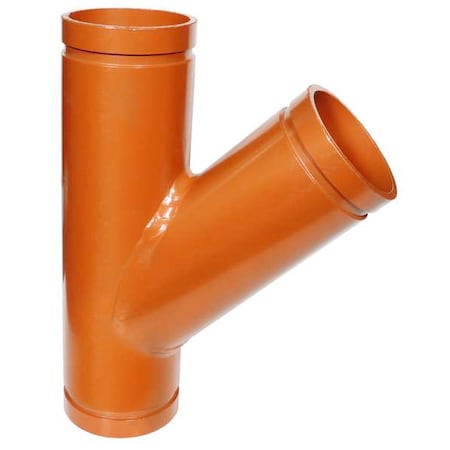

The GRUVLOK 0390126548 is a 4" galvanized ductile iron lateral designed for pipe schedule 40. This Class 150 fitting is suitable for air, non-potable water, and oil applications. It features grooved connections on all sides and can withstand a maximum operating pressure of 300 psi at 150 Degrees F.

• Constructed from galvanized ductile iron
• Features grooved connections for easy installation
• Suitable for air, non-potable water, and oil applications

Product Highlights

The GRUVLOK 0390126548 lateral fitting ensures reliable performance in diverse piping systems.

Product Information

Standard Information

• Brand: GRUVLOK
• Manufacturer Part Number: 0390126548
• Country of Origin: United States

Technical Specifications

• Item: 45 Degrees Lateral
• Class: Class 150
• Material: Galvanized Ductile Iron
• Pipe Size: 4 in
• Application: Air, Non-Potable Water, Oil
• Fitting Shape: Wye
• Includes Seal: No
• Finish/Coating: Galvanized
• Material Grade: Grade B
• Overall Length: 14 1/4 in
• Pressure Level: Medium Pressure (300-999 psi)
• Connection Type: Grooved
• For Pipe Schedule: 40
• Fitting Side A Type: Grooved
• Fitting Side B Type: Grooved
• Fitting Side C Type: Grooved
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Ductile Iron
• Flange Outside Diameter: 4 1/2 in
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Fitting Side A Outside Diameter: 4 1/2 in
• Fitting Side B Outside Diameter: 4 1/2 in
• Fitting Side C Outside Diameter: 4 1/2 in
• Fitting Side A Nominal Pipe Size: 4 in
• Fitting Side B Nominal Pipe Size: 4 in
• Fitting Side C Nominal Pipe Size: 4 in
• Includes Pre-Applied Thread Sealant: No
• Specific Fitting Shape: 45 Degrees Lateral
• Standards: ASTM A153
• Color: Silver
