GRUVLOK 0390080489 Reducer 7010 6 x 4 Inch

Product Description

The GRUVLOK 0390080489 is a reducer fitting that facilitates grooved pipe connections. This reducer is made from 65-45-12 ductile iron or 32510 malleable iron and features an orange painted finish. It allows a reduction from a six-inch to a four-inch pipe size. The product is equipped with a Style C Grade E ASTM D2000 green EPDM gasket, guaranteeing a secure seal.

• Constructed from durable ductile or malleable iron with a distinctive orange painted finish.
• Features connections of six-inch grooved x four-inch grooved.
• Compliant with FM, UL, and ULC standards, suitable for various applications.

Product Highlights

This reducer fitting is ideal for fire protection, HVAC systems, marine applications, and industrial piping.

Product Information

Standard Information

• Brand Name: GRUVLOK
• MPN: 0390080489

Technical Specifications

• Model: 7010
• Material: 65-45-12 ductile iron / 32510 malleable iron
• Finish: Orange painted
• Size A: 6 inches
• Size B: 4 inches
• Applicable Standards: FM, UL, ULC
• Application: Fire protection, HVAC, marine, military, mining, oil field, offshore, industrial piping
• Temperature Rating: -40 to 230 degrees Fahrenheit
• Material Specification: ASTM A536 / ASTM A47
• Pressure Rating: Maximum 500 PSI
• End Connection: 6 inch grooved x 4 inch grooved

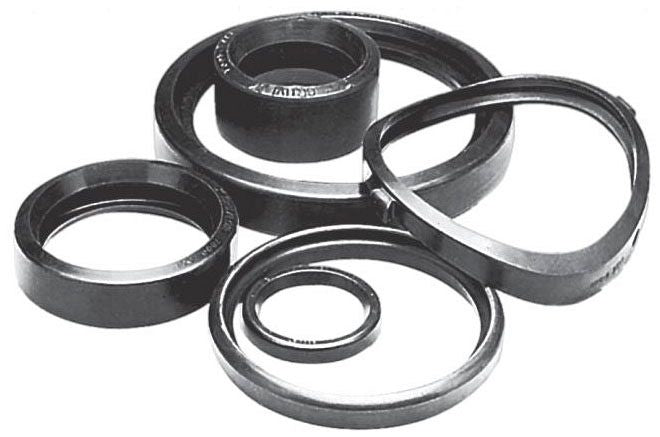

• Gasket Details: Style C Grade E ASTM D2000 green EPDM
• Weight: 13.4 lbs
