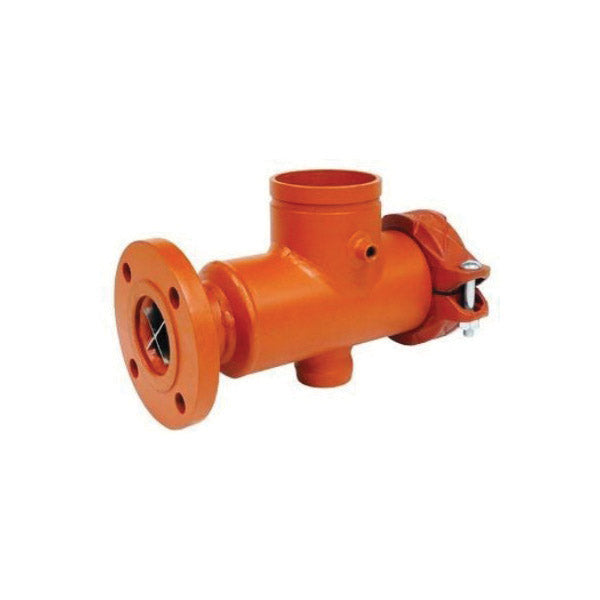

Gruvlok 0390050664 Suction Diffuser 300 psi 6 x 5 in Nominal

Product Description

The Gruvlok Suction Diffuser, model 0390050664, is designed for efficient fluid management in various piping applications. The standard flanged x groove end style provides compatibility with other system components. Rated for a pressure of three hundred psi, this diffuser ensures reliable performance in demanding conditions.

• Compatible with standard piping systems
• Constructed with rust inhibiting paint for durability
• Includes essential fittings for installation

Product Highlights

The Gruvlok Suction Diffuser optimizes pump function and minimizes installation costs. Its design allows for reduced labor and material use, streamlining the process of connecting to pumps and other fixtures.

Product Information

Standard Information

• Series: FIG 7250
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 6 x 5 in
• Pressure Rating: 300 psi
• Dimensions: 13-3/4 in H
• Inlet to Outlet Length: 17-1/2 in
• Top to Inlet Center: 6-1/2 in
• End Style: Flanged x Groove
• Includes: Bolts, Heavy Hex Nuts, Stainless Steel Bolts and Nuts, Housing, Diffuser Basket, Couplings, Flanges, Drain, Gage Plugs, Gaskets
• Finish: Rust Inhibiting Painted
• Manufacturer Part Number: 0390050664
• Standards/Approvals: ASTM A53 Housing, ASTM A563 Heavy Hex Nuts, ASME B16.5 Flanges, ASME B16.11 Drain/Gage Plugs, ASTM D2000 Gasket
