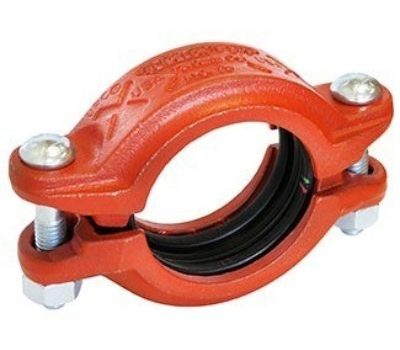

Gruvlok 0390010064 SlideLok Rigid Coupling 4 In.

Product Description

The Gruvlok 0390010064 SlideLok coupling provides a strong connection for various piping applications. This coupling is ready for easy installation and designed to reduce time during setup.

• Designed for use with roll groove or cut groove steel pipe.
• Includes a patented gasket with four sealing surfaces for enhanced protection.
• Offers a working pressure capacity of seven hundred fifty PSI.

Product Highlights

The SlideLok coupling allows for a quick and secure connection, ensuring compliance with ASME B31 Pipe Codes while accommodating multiple pipe types.

Product Information

Standard Information

• Brand: Gruvlok
• Manufacturer: Gruvlok (Anvil Intrnl)

Technical Specifications

• Material: Ductile iron conforming to ASTM A536, Grade 65-45-12
• Gasket: EPDM Grade EP, suitable for temperatures from negative forty to two hundred fifty degrees F
• Bolts: SAE J429, grade 5, zinc electro-plated
• Nuts: Heavy hex nuts, ASTM A563, grade A, zinc electro-plated
• Coating: Orange rust inhibiting paint
• Max Working Pressure: 750 PSI
• Compatible Piping: Roll groove, cut groove, and grooved light wall pipe
