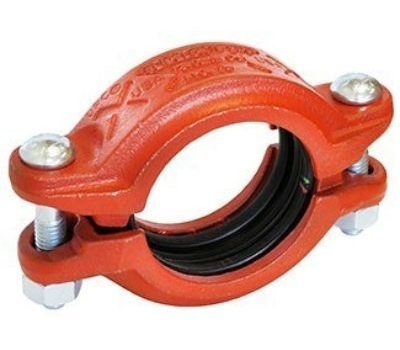

GruvLok 0390010049 SlideLok 3 in. Orange Ductile Iron Rigid Coupling

Product Description

The GruvLok SlideLok coupling is a rigid ready-to-install coupling designed to simplify the installation process significantly. It features a slide action that eases assembly, effectively reducing the installation time. This coupling incorporates a patented gasket that provides four separate sealing surfaces for enhanced leak protection.

• Designed for use with roll groove or cut groove steel pipe, and GruvLok grooved-end fittings.
• Allows for a maximum working pressure of seven hundred fifty PSI on carbon steel pipes.
• Enables compliant pipe hanging practices as per ASME B31 Pipe Codes.

Product Highlights

Efficient installation and a strong, durable connection characterize the SlideLok coupling.

Product Information

Standard Information

• Brand: GruvLok
• Manufacturer Name: GruvLok (Anvil Internal)

Technical Specifications

• Bolts: SAE J429, grade 5, zinc electro-plated
• Heavy Hex Nuts: ASTM A563, grade A, zinc electro-plated
• Housing: Ductile iron conforming to ASTM A536, Grade 65-45-12
• Coatings: Orange rust inhibiting paint
• Gasket: EPDM Grade EP, service temperature range of -40 to 250 degrees F, suitable for water service and various chemical applications
