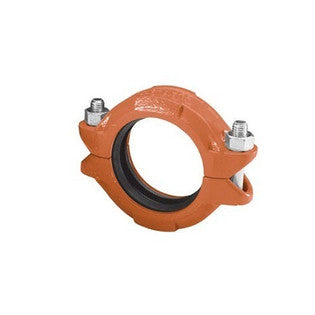

GRUVLOK 0390003184 Fig 7001 12 in. Grooved Flexible Coupling

Product Description

The GRUVLOK Fig 7001 flexible coupling connects grooved end pipes with a nominal size of 12 inches. Made from ductile iron, it meets ASTM A536 Grade 65-45-12 standards and is finished with orange paint. This coupling utilizes a Grade EP EPDM gasket, which can handle temperatures from minus forty to two hundred fifty degrees Fahrenheit.

• Flexible design aids in pipe and equipment installation.
• Suitable for mechanical equipment room applications.
• Pressure rated for 800 PSI.

Product Highlights

This coupling is useful for multiple applications including plumbing, mechanical, industrial, and fire protection systems. It helps reduce noise and vibration in pipelines while conforming to ANSI B31.1/B31.9, NSF/ANSI 61, UL standards in both the US and Canada, FM, UPC, and IAPMO.

Product Information

Standard Information

• Brand: GRUVLOK
• UPC: 69029110492

Technical Specifications

• Nominal Size: 12 inches
• End Style: Grooved End
• Material: Ductile Iron
• Gasket: Grade EP EPDM
• Applicable Standards: ANSI B31.1/B31.9, NSF/ANSI 61, UL (Canada and US), FM, UPC, IAPMO
• Applications: Plumbing, Mechanical, Industrial, Piping, Fire Protection, Mining, Oil, Gas, Subfloor, Crawlspace, Trench, Tunnel
• Pressure Rating: 800 PSI
• Temperature Rating: -40 to 250 degrees Fahrenheit
