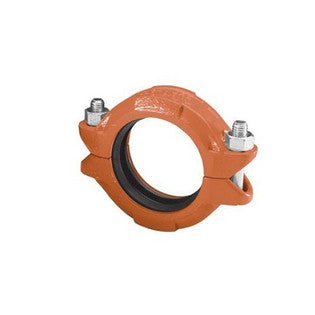

GRUVLOK 0390003168 GRUVLOK 7001 10 Grooved Flexible Coupling EPDM Gasket

Product Description

The GRUVLOK 7001 Flexible Coupling connects grooved end pipes effectively. It is ideal for plumbing, mechanical, and industrial piping applications. The coupling is made from ductile iron that meets ASTM A536 Grade 65-45-12 standards. The high-quality orange painted finish enhances its durability. It is suitable for Schedule 40 S pipes.

• Pressure rating of 800 PSI.
• Temperature range from minus forty to two hundred fifty degrees Fahrenheit.
• Flexible design to ease installation and reduce noise and vibration.

Product Highlights

This coupling is designed to simplify installation while minimizing noise transmission and vibrations in pipeline systems. The flexible nature allows for easy adjustments during setup.

Product Information

Standard Information

• Brand: GRUVLOK
• Material: Ductile Iron

Technical Specifications

• Applicable Standards: ANSI B31.1/B31.9, NSF/ANSI 61, UL (Canada and US), FM, UPC, IAPMO
• End Connection: Grooved x Grooved
• Finish: Orange Painted
• Gasket Details: Style C Grade EP Green/Red Stripe ASTM D2000 EPDM
• Gasket Supplied: Yes
• Pressure Rating: 800 PSI
• Size A: 10 inches
• Size B: 10 inches
• Temperature Rating: -40 to 250 degrees Fahrenheit
