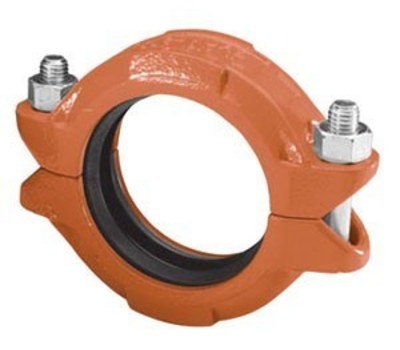

GRUVLOK 0390003085 4 in. Ductile Iron Grooved Flexible Coupling

Product Description

The GRUVLOK 0390003085 is a four-inch ductile iron grooved flexible coupling designed for reliable pipe connections across various applications. This product facilitates connections in mechanical and plumbing systems, process piping, mining, and oil field operations. The coupling supports working pressures up to one thousand PSI, ensuring a strong but lightweight joint for easier handling and installation.

• Flexible design for reduced noise and vibration transmission
• Easy handling due to segmented housing configuration
• Compatible with various piping systems for wide applications

Product Highlights

The GRUVLOK coupling simplifies installation while ensuring a secure connection without the need for special components.

Product Information

Standard Information

• Brand: GRUVLOK
• Model Number: 0390003085

Technical Specifications

• Material: Ductile Iron
• Weight: 1 lb.
• Length: 8.75 inches
• Color: Orange
• Maximum Pressure Rating: 1000 PSI
• Maximum Temperature Rating: +250 degrees F
• Minimum Temperature Rating: -40 degrees F
• Included Components: Standard EPDM Gasket, Bolts, Heavy Hex Nuts
• Specifications Met: cULus Listed, FM Approved, ASTM A536
