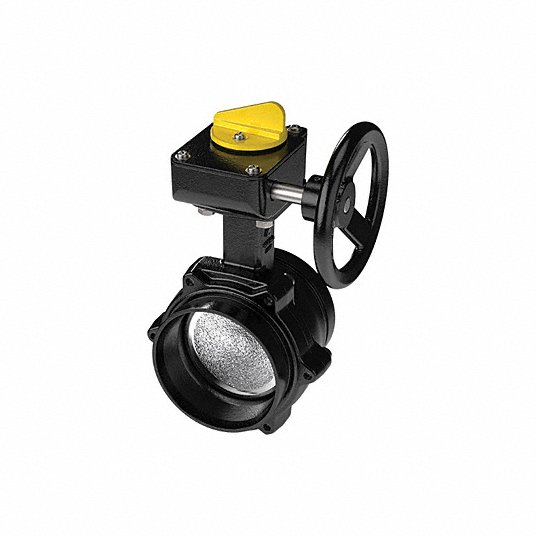

Gruvlok 0387008010 offset disc butterfly valve 6 in

Product Description

The GRUVLOK 0387008010 Offset Disc Butterfly Valve is a high-performance manual valve designed for reliable shutoff and throttling in high-pressure commercial and industrial applications. Constructed from ductile iron, it resists impact, fatigue, and wear, ensuring strength and resilience. This 6-inch grooved valve is suitable for water service, wastewater, oil-free air, and select chemical services, including compatible dilute acids and alkalies, with a maximum pressure of 400 psi.

• Ductile iron high-performance manual butterfly valve with offset disc.
• Suitable for high-pressure commercial and industrial applications.
• Lever handle with locking mechanism and 10 stop positions.

Product Highlights

Ductile iron construction, double-offset disc, 400 psi max pressure, EPDM liner.

Product Information

Standard Information

• Brand: GRUVLOK
• Manufacturer Part Number: 0387008010
• Country of Origin: South Korea

Technical Specifications

• Handle Type: Lever
• Pipe Size: 6 in
• Connection Type: Grooved
• Maximum Pressure (CWP): 400 psi
• Maximum Pressure (Steam): Not Rated
• Media Temperature Range: -40 °F to 250 °F
• For Media: Water
• Standards: MSS SP-67
• 3-A Compliance: Not Rated
• Vacuum Service Rating: -29.92 in Hg
• Flow Coefficient (Cv): 1,883
• Body Material: Ductile Iron
• Disc Material: Nickel-Plated Ductile Iron
• Liner Material: EPDM
• O-Ring Material: EPDM
• Stem Material: 410 Stainless Steel
• Handle Locking: Locking
• Stop Positions: 10
• Disc Position Indicator: Included
• Disc Alignment: Double-Offset
• Valve Series: 8721
• Country of Origin: South Korea
