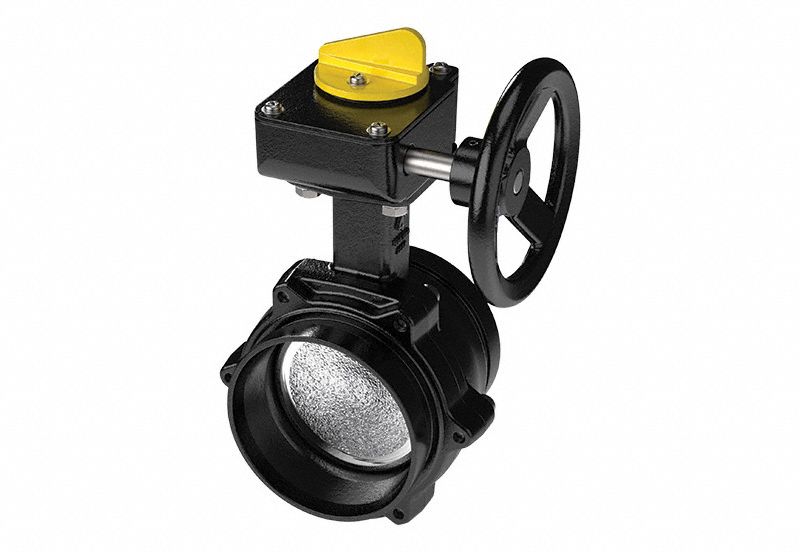

Gruvlok 0387008002 Offset Disc Butterfly Valve 2 1/2 in Pipe Size

Product Description

The GRUVLOK 0387008002 Offset Disc Butterfly Valve is a high-performance manual valve designed for reliable shutoff and throttling in high-pressure commercial and industrial applications. Constructed from ductile iron, it resists impact, fatigue, and wear, ensuring strength and resilience. This valve is suitable for water service, wastewater, oil-free air, and select chemical services, including compatible dilute acids and alkalies, with a maximum pressure of 400 psi and media temperature range of -40 �F to 250 �F.

• Ductile iron high-performance manual butterfly valve
• Offset disc design for reliable shutoff and throttling
• Suitable for water service, wastewater, and select chemical services

Product Highlights

Durable ductile iron construction with double-offset disc for high-pressure applications.

Product Information

Standard Information

• Brand: GRUVLOK
• Manufacturer Part Number: 0387008002
• Country of Origin: South Korea

Technical Specifications

• Handle Type: Lever
• Brand: GRUVLOK
• Manufacturer Part Number: 0387008002
• Pipe Size: 2-1/2 in
• Connection Type: Grooved
• Maximum Pressure (CWP): 400 psi
• Maximum Pressure (Steam): Not Rated
• Media Temperature Range: -40 �F to 250 �F
• Media Compatibility: Water
• Standards: MSS SP-67
• 3-A Compliance: Not Rated
• Vacuum Service Rating: -29.92 in Hg
• Flow Coefficient (Cv): 221
• Body Material: Ductile Iron
• Disc Material: Nickel-Plated Ductile Iron
• Liner Material: EPDM
• O-Ring Material: EPDM
• Stem Material: 410 Stainless Steel
• Handle Locking: Locking
• Stop Positions: 10
• Disc Position Indicator: Disc Position Indicator Included
• Disc Alignment: Double-Offset
• Valve Series: 8721
