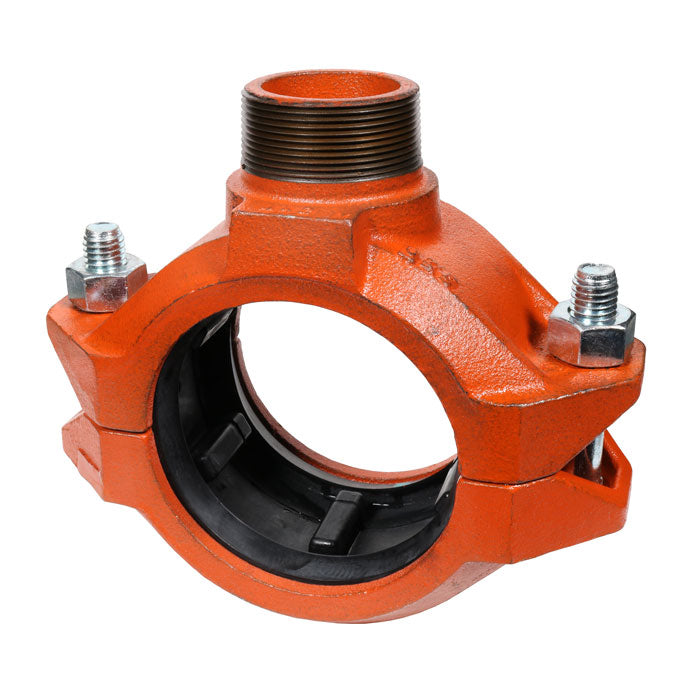

Gruvlok 0386013106 FIG 7042 Branch Outlet Coupling with EPDM Gasket

Product Description

The Gruvlok 0386013106 FIG 7042 Branch Outlet Coupling is a reliable fitting for connecting grooved end pipes. Designed to create a reducing outlet connection, it works with pipe sizes from one and a half inches to six inches for the IPS or ISO runs. The outlet pipe size ranges from half an inch to two inches. Ideal for installation with Gruvlok Copper System products, this coupling supports various applications.

• Connects grooved end pipes
• Suitable for IPS or ISO run pipe sizes from 1-1/2 inches to 6 inches
• Available with EPDM and Nitrile gaskets

Product Highlights

This coupling is engineered for strength and versatility.

Product Information

Standard Information

• Brand: Gruvlok
• Nominal Size: 2-1/2 x 1-1/4 inches

Technical Specifications

• Connection Type: MNPT
• Gasket Material: EPDM
• Clamp Material: Ductile Iron
• Bolt Material: 304 Stainless Steel
• Bolt Size: 1/2 x 2-3/8 inches
• Pressure Rating: 500 psi
• Temperature Rating: -40 to 150 degrees F
• Series: FIG 7042
